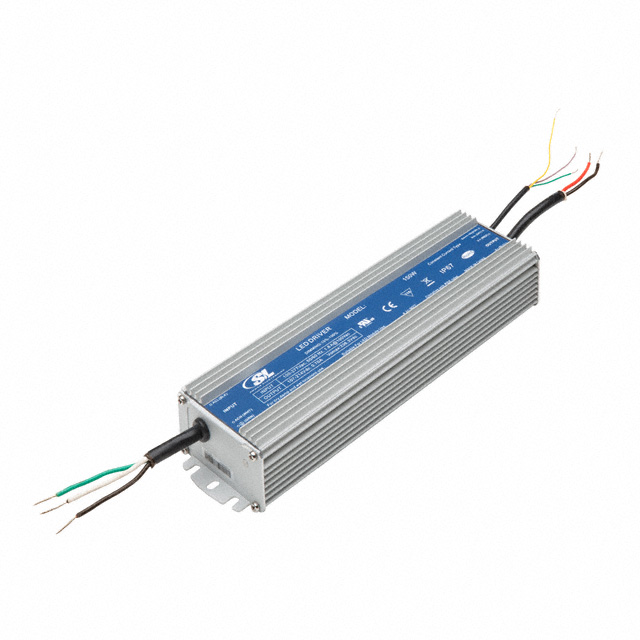

LE150S48 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
LED DRIVER CV AC/DC 48V 3.13A
| Part | Type | Voltage - Input (Min) [Min] | Weight | Weight | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Ratings | Voltage - Output | Power (Watts) | Current - Output (Max) [Max] | Approval Agency | Number of Outputs | Efficiency | Mounting Type | Features | Topology | Voltage - Input (Max) [Max] | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | Constant Voltage | 90 VAC | 1.5 kg | 3.3 lbs | 1.57 " | 40 mm | 8.9 in | 67.5 mm | 226 mm | 2.66 " | IP67 | 48 V | 150 W | 3.13 A | CE CSA EN UL | 1 | 93 % | Chassis Mount | OCP OTP OVP SCP | AC DC Converter | 305 VAC | Wire Leads | -35 °C | 70 °C |
