YK114 Series

Catalog

CONN BARRIER STRP 20CIRC 0.433"

Part	Number of Rows	Current Rating (Amps)	Terminal Screw Finish	Bottom Termination	Pitch [x]	Pitch [x]	Barrier Type	Number of Wire Entries	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Screw Material	Wire Gauge [Min]	Wire Gauge [Max]	Material Flammability Rating	Material - Insulation	Mounting Type	Number of Circuits	Top Termination	Voltage Rating	Features	Terminal Block Type	Number of Wire Entries [custom]
Amphenol Anytek YK1142033000G	1	20 A	Zinc	Solder Tab	11 mm	0.433 in	3 Wall (Tri)	20	-40 °C	115 °C	Phosphor Bronze	12 AWG	22 AWG	UL94 V-0	Thermoplastic	Chassis Panel Right Angle	20	Screws with Captive Plate	300 VDC	Flange	Barrier Block
Amphenol Anytek YK1140333000G	1	20 A	Zinc	Solder Tab	11 mm	0.433 in	3 Wall (Tri)	3	-40 °C	115 °C	Steel	12 AWG	22 AWG	UL94 V-0	Thermoplastic	Chassis Panel Right Angle	3	Screws with Captive Plate	300 VDC	Flange	Barrier Block
Amphenol Anytek YK1142333000G	1	20 A	Zinc	Solder Tab	11 mm	0.433 in	3 Wall (Tri)		-40 °C	115 °C	Phosphor Bronze	12 AWG	22 AWG	UL94 V-0	Thermoplastic	Chassis Panel Right Angle	23	Screws with Captive Plate	300 VDC	Flange	Barrier Block	23
Amphenol Anytek YK1141833000G	1	20 A	Zinc	Solder Tab	11 mm	0.433 in	3 Wall (Tri)	18	-40 °C	115 °C	Phosphor Bronze	12 AWG	22 AWG	UL94 V-0	Thermoplastic	Chassis Panel Right Angle	18	Screws with Captive Plate	300 VDC	Flange	Barrier Block
Amphenol Anytek YK1141933000G	1	20 A	Zinc	Solder Tab	11 mm	0.433 in	3 Wall (Tri)	19	-40 °C	115 °C	Phosphor Bronze	12 AWG	22 AWG	UL94 V-0	Thermoplastic	Chassis Panel Right Angle	19	Screws with Captive Plate	300 VDC	Flange	Barrier Block
Amphenol Anytek YK1141533000G	1	20 A	Zinc	Solder Tab	11 mm	0.433 in	3 Wall (Tri)	15	-40 °C	115 °C	Steel	12 AWG	22 AWG	UL94 V-0	Thermoplastic	Chassis Panel Right Angle	15	Screws with Captive Plate	300 VDC	Flange	Barrier Block
Amphenol Anytek YK1142533000G	1	20 A	Zinc	Solder Tab	11 mm	0.433 in	3 Wall (Tri)	25	-40 °C	115 °C	Phosphor Bronze	12 AWG	22 AWG	UL94 V-0	Thermoplastic	Chassis Panel Right Angle	25	Screws with Captive Plate	300 VDC	Flange	Barrier Block
Amphenol Anytek YK1142133000G	1	20 A	Zinc	Solder Tab	11 mm	0.433 in	3 Wall (Tri)	21	-40 °C	115 °C	Phosphor Bronze	12 AWG	22 AWG	UL94 V-0	Thermoplastic	Chassis Panel Right Angle	21	Screws with Captive Plate	300 VDC	Flange	Barrier Block

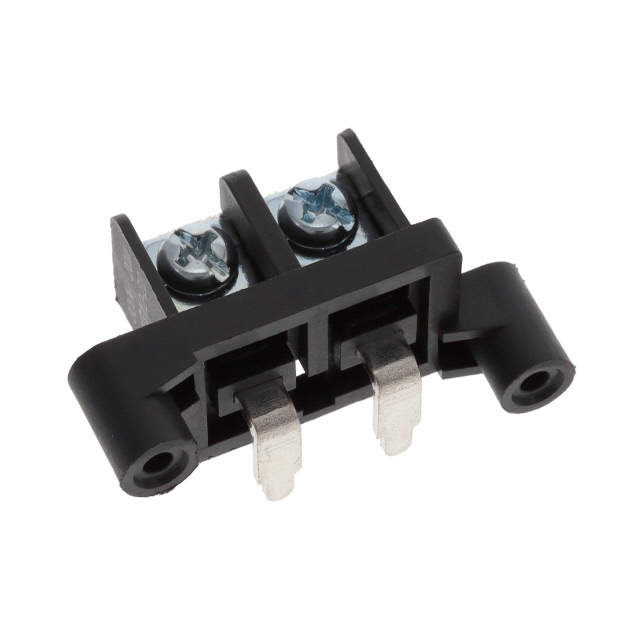

Amphenol Anytek YK1140233100G	1	20 A	Zinc	Solder Tab	11 mm	0.433 in	3 Wall (Tri)	2	-40 °C	115 °C	Steel	12 AWG	22 AWG	UL94 V-0	Thermoplastic	Chassis Panel Right Angle	2	Screws with Captive Plate	300 VDC	Flange	Barrier Block
Amphenol Anytek YK1140433000G	1	20 A	Zinc	Solder Tab	11 mm	0.433 in	3 Wall (Tri)	4	-40 °C	115 °C	Steel	12 AWG	22 AWG	UL94 V-0	Thermoplastic	Chassis Panel Right Angle	4	Screws with Captive Plate	300 VDC	Flange	Barrier Block
