1776130 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

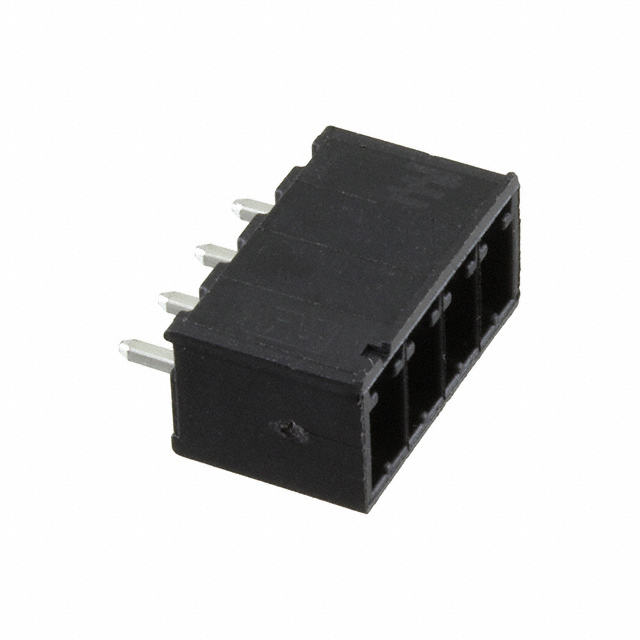

TERM BLOCK HDR 4POS 3.50MM
| Part | Material Flammability Rating | Contact Tail Length [x] | Contact Tail Length [x] | Contact Material | Housing Material | Insulation Height | Insulation Height | Pitch | Pitch | Color | Operating Temperature [Min] | Operating Temperature [Max] | Header Orientation | Voltage - UL | Type | Contact Mating Finish | Mounting Type | Termination Style | Positions Per Level | Number of Positions | Current - UL | Number of Levels |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | UL94 V-0 | 3.4 mm | 0.134 in | Phosphor Bronze | Polyamide (PA) Nylon | 0.362 in | 9.2 mm | 3.5 mm | 0.138 " | Black | -40 C | 110 °C | Vertical | 300 V | Header Male Pins Shrouded (4 Side) | Tin | Through Hole | Solder | 4 | 4 | 11 A | 1 |
