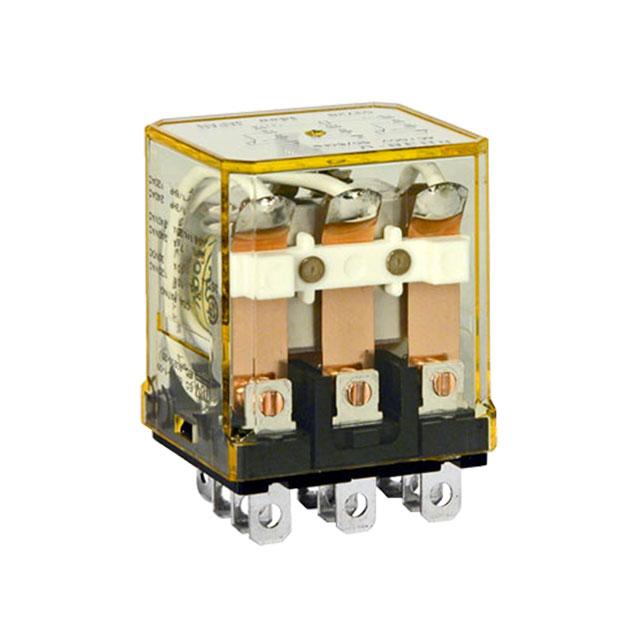

RH3B-U Series
Manufacturer: IDEC
Beta
⌘K
POWER RELAY, 3PDT, 120 VAC, 10 A, RH SERIES, SOCKET, NON LATCHING
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Switching Voltage | Contact Material | Coil Type | Must Release Voltage | Load - Max Switching | Features | Approval Agency | Relay Type | Mounting Type | Operate Time | Coil Resistance | Contact Form | Release Time | Coil Voltage | Coil Current | Contact Rating (Current) | Must Operate Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | 70 °C | -25 °C | Plug In Quick Connect - 0.187" (4.7mm) | 30 VDC 120 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 36 VAC | 300 W 1200 VA | Lighted Indicator | CE CSA cURus TUV | General Purpose | Socketable | 25 ms | 10.8 kOhms | 3PDT (3 Form C) | 25 ms | 120 VAC | 14.2 mA | 10 A | 96 VAC |
IDEC | 70 °C | -25 °C | Plug In Quick Connect - 0.187" (4.7mm) | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 1.8 VAC | 300 W 2400 VA | Lighted Indicator | CE CSA cURus TUV | General Purpose | Socketable | 25 ms | 6.4 Ohms | 3PDT (3 Form C) | 25 ms | 6 VAC | 280 mA | 10 A | 4.8 VAC/DC |
 IDEC | 70 °C | -25 °C | Plug In Quick Connect - 0.187" (4.7mm) | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 2.4 VDC | 300 W 2400 VA | Test Button | CE CSA cURus TUV | General Purpose | Socketable | 25 ms | 400 Ohms | 3PDT (3 Form C) | 25 ms | 24 VDC | 60 mA | 10 A | 19.2 VDC |
IDEC | 70 °C | -25 °C | Plug In Quick Connect - 0.187" (4.7mm) | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 3.6 VAC | 300 W 2400 VA | CE CSA cURus TUV | General Purpose | Socketable | 25 ms | 25.3 Ohms | 3PDT (3 Form C) | 25 ms | 12 VAC/DC | 140 mA | 10 A | 9.6 VAC/DC | |
IDEC | 70 °C | -25 °C | Plug In Quick Connect - 0.187" (4.7mm) | 30 VDC 120 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 7.2 VAC | 300 W 1200 VA | Lighted Indicator Test Button | CE CSA cURus TUV | General Purpose | Socketable | 25 ms | 103 Ohms | 3PDT (3 Form C) | 25 ms | 24 VAC | 70 mA | 10 A | 19.2 VAC |
IDEC | 70 °C | -25 °C | Plug In Quick Connect - 0.187" (4.7mm) | 30 VDC 120 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 7.2 VAC | 300 W 1200 VA | Lighted Indicator | CE CSA cURus TUV | General Purpose | Socketable | 25 ms | 103 Ohms | 3PDT (3 Form C) | 25 ms | 24 VAC | 70 mA | 10 A | 19.2 VAC |
IDEC | 70 °C | -25 °C | Plug In Quick Connect - 0.187" (4.7mm) | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 66 VAC | 300 W 2400 VA | Lighted Indicator | CE CSA cURus TUV | General Purpose | Socketable | 25 ms | 10.81 kOhms | 3PDT (3 Form C) | 25 ms | 220 VAC/DC | 7.7 mA | 10 A | 176 VAC |
IDEC | 70 °C | -25 °C | Plug In Quick Connect - 0.187" (4.7mm) | 30 VDC 120 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 2.4 VDC | 300 W 1200 VA | CE CSA cURus TUV | General Purpose | Socketable | 25 ms | 400 Ohms | 3PDT (3 Form C) | 25 ms | 24 VDC | 60 mA | 10 A | 19.2 VDC | |
IDEC | 70 °C | -25 °C | Plug In Quick Connect - 0.187" (4.7mm) | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 4.8 VDC | 300 W 2400 VA | CE CSA cURus TUV | General Purpose | Socketable | 25 ms | 1.6 kOhms | 3PDT (3 Form C) | 25 ms | 48 VDC | 30 mA | 10 A | 38.4 VDC | |
IDEC | 70 °C | -25 °C | Plug In Quick Connect - 0.187" (4.7mm) | 30 VDC 240 VAC | Silver Cadmium Oxide (AgCdO) | Non Latching | 72 VAC/DC | 300 W 2400 VA | Test Button | CE CSA cURus TUV | General Purpose | Socketable | 25 ms | 12.1 kOhms | 3PDT (3 Form C) | 25 ms | 240 VAC | 7.1 mA | 10 A | 192 VAC |
