ALCOSWITCH AV25 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

AV25 DPM 3A MOVING RING GREEN 24V

...

Part	Color - Actuator/Cap	Mounting Type	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Actuator Type	Voltage Rating - AC	Termination Style	Illumination Type, Color	Type	Illumination Voltage (Nominal)	Actuator Marking	Circuit	Ingress Protection	Switch Function	Electrical Life	Mechanical Life	Features
TE Connectivity AMP Connectors AV2520E624Q04	Silver	Panel Mount Front	3 A	55 °C	-20 ░C	25.2 mm	Button Flush Round	250 V	Solder Lug	Green LED	Anti-Vandal Illuminated	24 V	No Marking	DPDT	IP67 - Dust Tight Waterproof	On-Mom
TE Connectivity AMP Connectors AV2511EA24T5Q04	Silver	Panel Mount Front	3 A	55 °C	-20 ░C	25.2 mm	Button Flush Round	250 V	Wire Leads	Green/Red LED	Anti-Vandal Illuminated	24 V	No Marking	SPDT	IP67 - Dust Tight Waterproof	On-On	50000 Cycles	500000 Cycles
TE Connectivity AMP Connectors AV2521M624Q04	Silver	Panel Mount Front	3 A	55 °C	-20 ░C	25.2 mm	Button Flush Round	250 V	Solder Lug	Green LED	Anti-Vandal Illuminated	24 V	No Marking	DPDT	IP67 - Dust Tight Waterproof	On-On			Moving LED Ring Power Symbol
TE Connectivity AMP Connectors AV2520E712Q04	Silver	Panel Mount Front	3 A	55 °C	-20 ░C	25.2 mm	Button Flush Round	250 V	Solder Lug	Blue LED	Anti-Vandal Illuminated	12 VDC	No Marking	DPDT	IP67 - Dust Tight Waterproof	On-Mom	50000 Cycles	1000000 Cycles
TE Connectivity AMP Connectors AV2510M612Q04	Silver	Panel Mount Front	3 A	55 °C	-20 ░C	25.2 mm	Button Flush Round	250 V	Solder Lug	Green LED	Anti-Vandal Illuminated	12 VDC	No Marking	SPDT	IP67 - Dust Tight Waterproof	On-Mom	50000 Cycles	1000000 Cycles	Moving LED Ring Power Symbol
TE Connectivity AMP Connectors AV2510E512Q04	Silver	Panel Mount Front	3 A	55 °C	-20 ░C	25.2 mm	Button Flush Round	250 V	Solder Lug	LED Yellow	Anti-Vandal Illuminated	12 VDC	No Marking	SPDT	IP67 - Dust Tight Waterproof	On-Mom

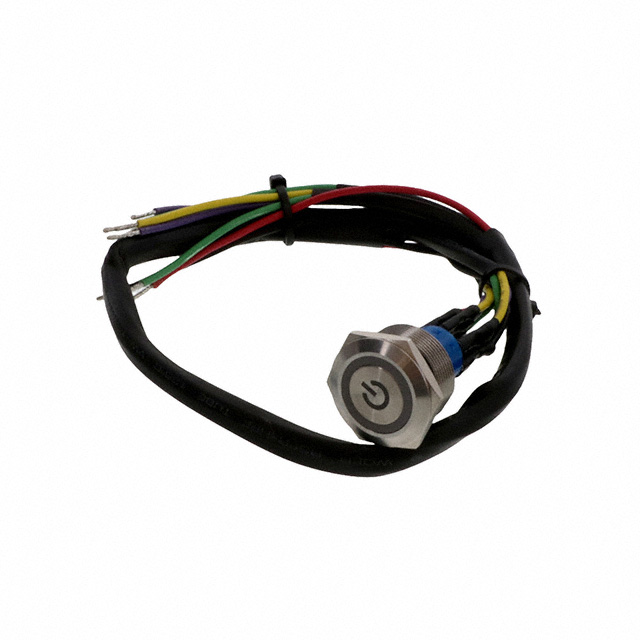

TE Connectivity AMP Connectors AV2520MA12T5Q04	Silver	Panel Mount Front	3 A	55 °C	-20 ░C	25.2 mm	Button Flush Round	250 V	Wire Leads	Green/Red LED	Anti-Vandal Illuminated	12 VDC	No Marking	DPDT	IP67 - Dust Tight Waterproof	On-Mom	50000 Cycles	1000000 Cycles	Moving LED Ring Power Symbol
TE Connectivity AMP Connectors AV2511E712Q04	Silver	Panel Mount Front	3 A	55 °C	-20 ░C	25.2 mm	Button Flush Round	250 V	Solder Lug	Blue LED	Anti-Vandal Illuminated	12 VDC	No Marking	SPDT	IP67 - Dust Tight Waterproof	On-On
TE Connectivity AMP Connectors AV2510E524Q04	Silver	Panel Mount Front	3 A	55 °C	-20 ░C	25.2 mm	Button Flush Round	250 V	Solder Lug	LED Yellow	Anti-Vandal Illuminated	24 V	No Marking	SPDT	IP67 - Dust Tight Waterproof	On-Mom
TE Connectivity AMP Connectors AV2511E112Q04	Silver	Panel Mount Front	3 A	55 °C	-20 ░C	25.2 mm	Button Flush Round	250 V	Solder Lug	LED White	Anti-Vandal Illuminated	12 VDC	No Marking	SPDT	IP67 - Dust Tight Waterproof	On-On
