EN3C6M Series

Catalog

CONN PLUG MALE 6POS GOLD CRIMP

Part	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Number of Positions	Shielding	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Termination	Color	Features	Backshell Material, Plating	Fastening Type	Voltage Rating	Material Flammability Rating	Contact Finish - Mating	Insert Material	Mounting Type	Ingress Protection	Applications	Primary Material	Connector Type
Switchcraft Inc. EN3C6MCKX	Keyed	65 °C	-40 °C	7.5 A	6	Unshielded	Copper Alloy	4.06 mm 6.73 mm	0.16 in 0.265 in	Crimp	Black	Backshell Cable Clamp Coupling Nut	Thermoplastic	Bayonet Lock	250 VAC	UL94 V-0	Gold	Elastomer	Free Hanging (In-Line)	IP66/IP68	General Purpose Instrumentation Marine Medical	Plastic	Male Pins Plug

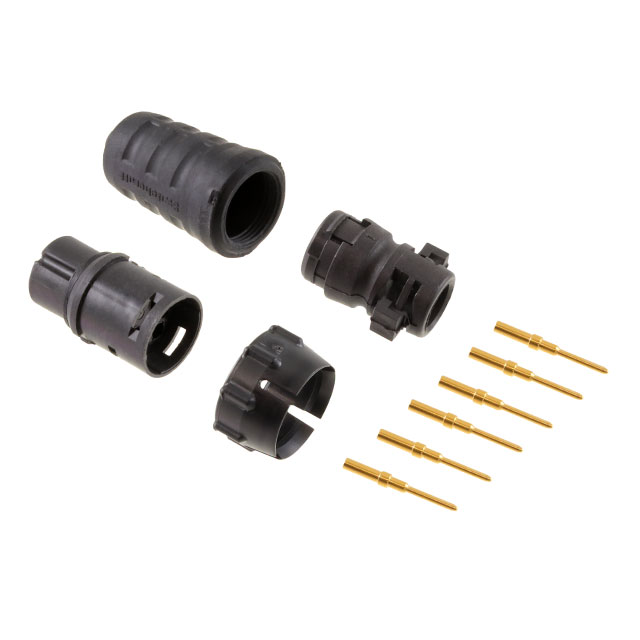

Switchcraft Inc. EN3C6MCX	Keyed	65 °C	-40 °C	7.5 A	6	Unshielded	Copper Alloy	4.06 mm 6.73 mm	0.16 in 0.265 in	Crimp	Black	Backshell Cable Clamp Coupling Nut	Thermoplastic	Bayonet Lock	250 VAC	UL94 V-0	Gold	Elastomer	Free Hanging (In-Line)	IP66/IP68	General Purpose Instrumentation Marine Medical	Plastic	Male Pins Plug

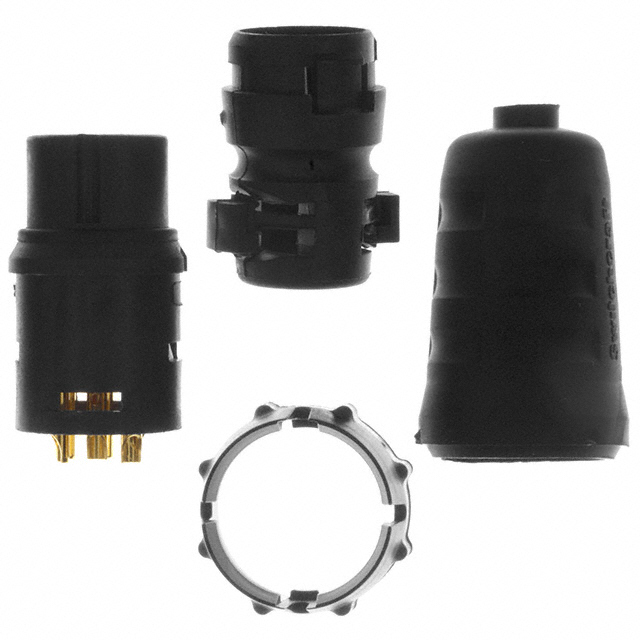

Switchcraft Inc. EN3C6MX	Keyed	65 °C	-40 °C	7.5 A	6	Unshielded	Copper Alloy	4.06 mm 6.73 mm	0.16 in 0.265 in		Black	Backshell Cable Clamp Coupling Nut	Thermoplastic	Bayonet Lock	250 VAC	UL94 V-0	Gold	Elastomer	Free Hanging (In-Line)	IP66/IP68	General Purpose Instrumentation Marine Medical	Plastic	Male Pins Plug
