SFR Series

Catalog

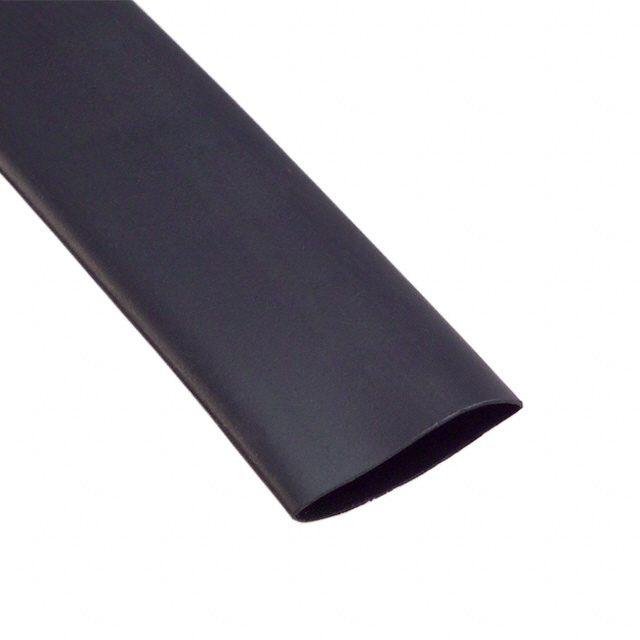

HEATSHRINK 0.625" BLACK 1'

Part	Features	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Inner Diameter - Recovered	Inner Diameter - Recovered	Length	Length	Spool Size	Spool Size	Shrink Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Length	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Color	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]
TE Connectivity Aerospace, Defense and Marine SFR-5/8-0-SP	Abrasion Resistant Flame Retardant Fluid Resistant	1.32 mm	0.052 in	0.625 in	15.88 mm	Tubing Flexible	9.09 mm	0.358 in	1.52 m 7.6 m	5 ' 25 ft	61 m	200 '	135 C	-103 °F	180 °C	Enter Number of Feet in Order Quantity	1	1.75	Black
TE Connectivity Aerospace, Defense and Marine SFR-1/2-0-SP	Abrasion Resistant Flame Retardant Fluid Resistant	0.048 in		0.5 in	12.7 mm	Tubing Flexible			1.52 m 7.6 m 15.2 m	5 ' 25 ft 50 ft			135 C	-103 °F	180 °C		1	1.75	Black	1.22 mm	0.286 in	7.26 mm
TE Connectivity Aerospace, Defense and Marine SFR-3/8-0-SP	Abrasion Resistant Flame Retardant Fluid Resistant	1.02 mm	0.04 in	0.375 in	9.53 mm	Tubing Flexible			1.52 m 7.6 m 15.2 m	5 ' 25 ft 50 ft			135 C	-103 °F	180 °C		1	1.75	Black		0.214 in	5.44 mm
TE Connectivity Aerospace, Defense and Marine SFR-1/4-0-SP	Abrasion Resistant Flame Retardant Fluid Resistant	0.89 mm	0.035 in	0.252 "	6.4 mm	Tubing Flexible			1.52 m 15.2 m	5 ' 50 ft			135 C	-103 °F	180 °C		1	1.75	Black		0.143 in	3.63 mm
