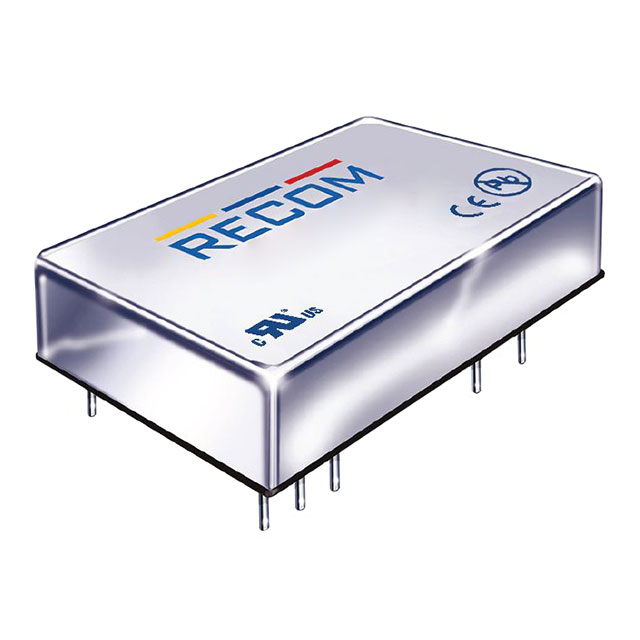

RP08-4815 Series
Isolated DC/DC Converters - SMD 8W DC/DC 1.6kV REG 4:1 18-75in +/-15out
Manufacturer: RECOM Power
Catalog
Isolated DC/DC Converters - SMD 8W DC/DC 1.6kV REG 4:1 18-75in +/-15out
Beta
⌘K
Isolated DC/DC Converters - SMD 8W DC/DC 1.6kV REG 4:1 18-75in +/-15out
Isolated DC/DC Converters - SMD 8W DC/DC 1.6kV REG 4:1 18-75in +/-15out
Isolated DC/DC Converters - SMD 8W DC/DC 1.6kV REG 4:1 18-75in +/-15out
| Part | Features | Voltage - Isolation | Package / Case | Efficiency | Applications | Control Features | Current - Output (Max) [Max] | Number of Outputs | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Min) [Min] | Power (Watts) | Type | Voltage - Input (Max) [Max] | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 RECOM Power | OCP OVP Remote On/Off SCP | 1.6 kV | 24-SMD Module 18 Leads | 87 % | ITE (Commercial) | Active High Enable | 533 mA | 1 | 15 V | 11.2 mm | 0.8 in | 20.3 mm | 0.44 " | 1.26 in | 32 mm | 85 °C | -40 °C | 9 V | 8 W | Isolated Module | 18 V | Surface Mount | ||||||
 RECOM Power | OCP OVP Remote On/Off SCP | 1.6 kV | 24-DIP Module | 85 % | ITE (Commercial) | Active High Enable | 533 mA | 1 | 15 V | 0.8 in | 0.4 " | 1.25 " | 31.8 mm | 85 °C | -40 °C | 18 V | 8 W | Isolated Module | 36 V | Through Hole | 10.2 mm | 20.3 mm | 9 PC Pad | |||||
RECOM Power | OCP OVP Remote On/Off SCP | 1.6 kV | 24-SMD Module 18 Leads | 86 % | ITE (Commercial) | Active High Enable | 666 mA | 1 | 12 V | 11.2 mm | 0.8 in | 20.3 mm | 0.44 " | 1.26 in | 32 mm | 85 °C | -40 °C | 18 V | 8 W | Isolated Module | 36 V | Surface Mount | ||||||
RECOM Power | OCP OVP Remote On/Off SCP | 1.6 kV | 24-DIP Module | 86 % | ITE (Commercial) | Active High Enable | 533 mA | 1 | 15 V | 0.8 in | 0.4 " | 1.25 " | 31.8 mm | 85 °C | -40 °C | 36 V | 8 W | Isolated Module | 75 V | Through Hole | 10.2 mm | 20.3 mm | 9 PC Pad | |||||
RECOM Power | OCP OVP Remote On/Off SCP | 1.6 kV | 24-DIP Module | 86 % | ITE (Commercial) Railway | Active High Enable | 533 mA | 1 | 15 V | 0.8 in | 0.4 " | 1.25 " | 31.8 mm | 85 °C | -40 °C | 18 V | 8 W | Isolated Module | 75 V | Through Hole | 10.2 mm | 20.3 mm | 9 PC Pad | |||||
RECOM Power | OCP OVP Remote On/Off SCP | 1.6 kV | 24-SMD Module 18 Leads | 86 % | ITE (Commercial) | Active High Enable | 533 mA | 1 | 15 V | 11.2 mm | 0.8 in | 20.3 mm | 0.44 " | 1.26 in | 32 mm | 85 °C | -40 °C | 36 V | 8 W | Isolated Module | 75 V | Surface Mount | ||||||
 RECOM Power | OCP OVP Remote On/Off SCP | 1.6 kV | 24-SMD Module 18 Leads | 86 % | ITE (Commercial) Railway | Active High Enable | 533 mA | 1 | 15 V | 11.2 mm | 0.8 in | 20.3 mm | 0.44 " | 1.26 in | 32 mm | 85 °C | -40 °C | 18 V | 8 W | Isolated Module | 75 V | Surface Mount | ||||||
RECOM Power | OCP OVP Remote On/Off SCP | 1.6 kV | 24-SMD Module 18 Leads | 85 % | ITE (Commercial) | Active High Enable | 2 | 5 V | 11.2 mm | 0.8 in | 20.3 mm | 0.44 " | 1.26 in | 32 mm | 85 °C | -40 °C | 36 V | 8 W | Isolated Module | 75 V | Surface Mount | -5 V | 800 mA | 800 mA | ||||
RECOM Power | OCP OVP Remote On/Off SCP | 1.6 kV | 24-DIP Module | 83 % | ITE (Commercial) | Active High Enable | 1.5 A | 1 | 5 V | 0.8 in | 0.4 " | 1.25 " | 31.8 mm | 85 °C | -40 °C | 9 V | 8 W | Isolated Module | 18 V | Through Hole | 10.2 mm | 20.3 mm | 9 PC Pad | |||||
RECOM Power | OCP OVP Remote On/Off SCP | 1.6 kV | 24-SMD Module 18 Leads | 80 % | ITE (Commercial) | Active High Enable | 2 A | 1 | 3.3 V | 11.2 mm | 0.8 in | 20.3 mm | 0.44 " | 1.26 in | 32 mm | 85 °C | -40 °C | 36 V | 8 W | Isolated Module | 75 V | Surface Mount |
