ROL-1215 Series

Isolated DC/DC Converters - Through Hole 0.50W DC/DC 2kV UNREG 5Vin 15Vout

Manufacturer: RECOM Power

Catalog

Isolated DC/DC Converters - Through Hole 0.50W DC/DC 2kV UNREG 5Vin 15Vout

Catalog

Isolated DC/DC Converters - Through Hole 0.50W DC/DC 2kV UNREG 5Vin 15Vout

Part	Efficiency	Features	Voltage - Input (Max) [Max]	Package / Case	Voltage - Input (Min) [Min]	Power (Watts)	Number of Outputs	Type	Applications	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Output 1
RECOM Power ROL-1215S	87 %	SCP	13.2 V	4-SIP Module	10.8 V	0.5 W	1	Isolated Module	ITE (Commercial)	1000 V	85 °C	-40 °C	33 mA	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	15 V
RECOM Power ROL-1215S/P	87 %	SCP	13.2 V	4-SIP Module	10.8 V	0.5 W	1	Isolated Module	ITE (Commercial)	1000 V	85 °C	-40 °C	33 mA	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	15 V
RECOM Power ROL-1215S/H	87 %	SCP	13.2 V	4-SIP Module	10.8 V	0.5 W	1	Isolated Module	ITE (Commercial)	2000 V	85 °C	-40 °C	33 mA	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	15 V
RECOM Power ROL-0515S/P	87 %	SCP	5.5 V	4-SIP Module	4.5 V	0.5 W	1	Isolated Module	ITE (Commercial)	1000 V	85 °C	-40 °C	33 mA	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	15 V
RECOM Power ROL-0512S/P	86 %	SCP	5.5 V	4-SIP Module	4.5 V	0.5 W	1	Isolated Module	ITE (Commercial)	1000 V	85 °C	-40 °C	42 mA	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	12 V
RECOM Power ROL-1205S/H		SCP	13.2 V	4-SIP Module	10.8 V	0.5 W	1	Isolated Module	ITE (Commercial)	2000 V	85 °C	-40 °C	100 mA	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	5 V
RECOM Power ROL-0505S/HP		SCP	5.5 V	4-SIP Module	4.5 V	0.5 W	1	Isolated Module	ITE (Commercial)	2000 V	85 °C	-40 °C	100 mA	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	5 V

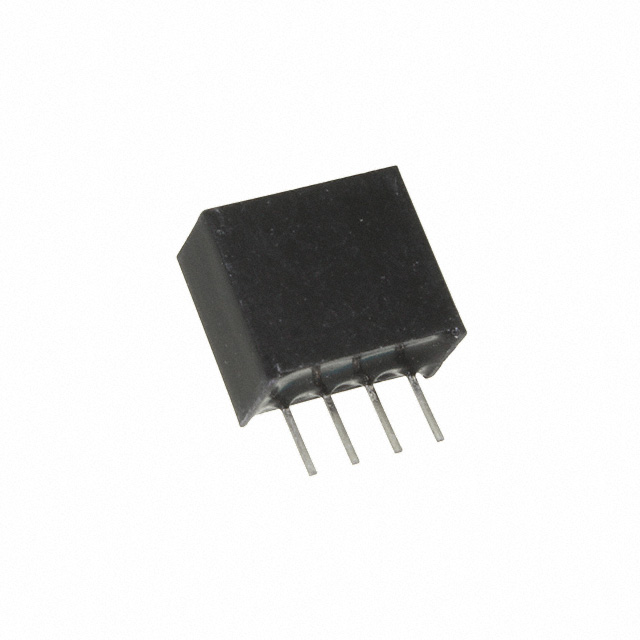

RECOM Power ROL-0505S/P		SCP	5.5 V	4-SIP Module	4.5 V	0.5 W	1	Isolated Module	ITE (Commercial)	1000 V	85 °C	-40 °C	100 mA	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	5 V
RECOM Power ROL-0512S/H	86 %	SCP	5.5 V	4-SIP Module	4.5 V	0.5 W	1	Isolated Module	ITE (Commercial)	2000 V	85 °C	-40 °C	42 mA	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	12 V
RECOM Power ROL-1205S/HP		SCP	13.2 V	4-SIP Module	10.8 V	0.5 W	1	Isolated Module	ITE (Commercial)	2000 V	85 °C	-40 °C	100 mA	Through Hole	6 mm	0.24 "	11.5 mm	0.39 in	10 mm	0.45 in	5 V
