NXPS20 Series

Catalog

DIODE ARR SCHOTT 100V 10A TO220F

Part	Technology	Current - Reverse Leakage @ Vr	Supplier Device Package	Current - Average Rectified (Io) (per Diode)	Speed	Mounting Type	Voltage - Forward (Vf) (Max) @ If [Max]	Diode Configuration	Package / Case	Operating Temperature - Junction [Max]	Voltage - DC Reverse (Vr) (Max) [Max]	Voltage - Forward (Vf) (Max) @ If
WeEn Semiconductors Co., Ltd NXPS20H100CX,127	Schottky	4.5 mA	TO-220F	10 A	200 mA 500 ns	Through Hole	770 mV	1 Pair Common Cathode	TO-220-3 Full Pack Isolated Tab	175 °C	100 V
WeEn Semiconductors Co., Ltd NXPS20S100C,127	Schottky	3 µA	TO-220AB	10 A	200 mA 500 ns	Through Hole		1 Pair Common Cathode	TO-220-3	175 °C	100 V	580 mV
WeEn Semiconductors Co., Ltd NXPS20H110C,127	Schottky	6 µA	TO-220AB	10 A	200 mA 500 ns	Through Hole	770 mV	1 Pair Common Cathode	TO-220-3	175 °C	110 V

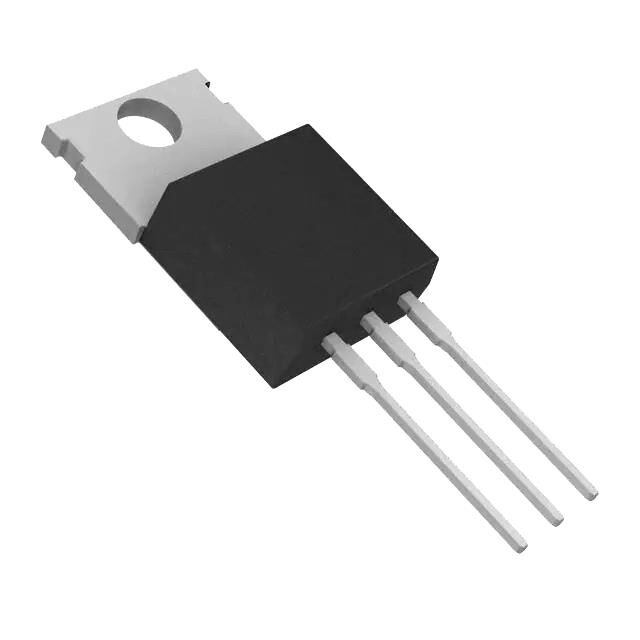

WeEn Semiconductors Co., Ltd NXPS20H100C,127	Schottky	4.5 µA	TO-220AB	10 A	200 mA 500 ns	Through Hole	770 mV	1 Pair Common Cathode	TO-220-3	175 °C	100 V
