EN2P7M Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CONN RCPT MALE 7POS GOLD SOLDER
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Ingress Protection | Shielding | Primary Material | Insert Material | Orientation | Contact Finish - Mating | Voltage Rating | Fastening Type | Applications | Color | Contact Material | Termination | Mounting Type | Mounting Feature | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

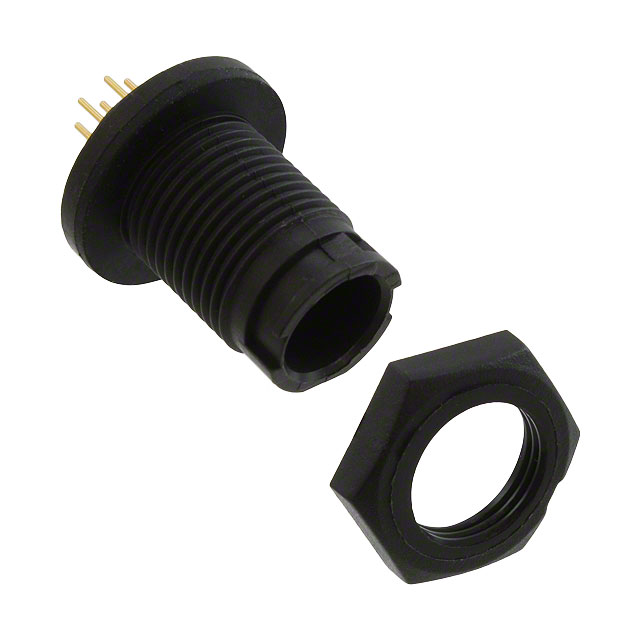

 Switchcraft Inc. | 85 °C | -40 °C | UL94 V-0 | IP66 IP67 IP68 | Unshielded | Plastic | Elastomer | Keyed | Gold | 125 VAC | Bayonet Lock | Communication Systems Industrial Marine Medical | Black | Copper Alloy | Solder | Panel Mount Through Hole | Bulkhead - Front Side Nut | 7 | Male Pins Receptacle |

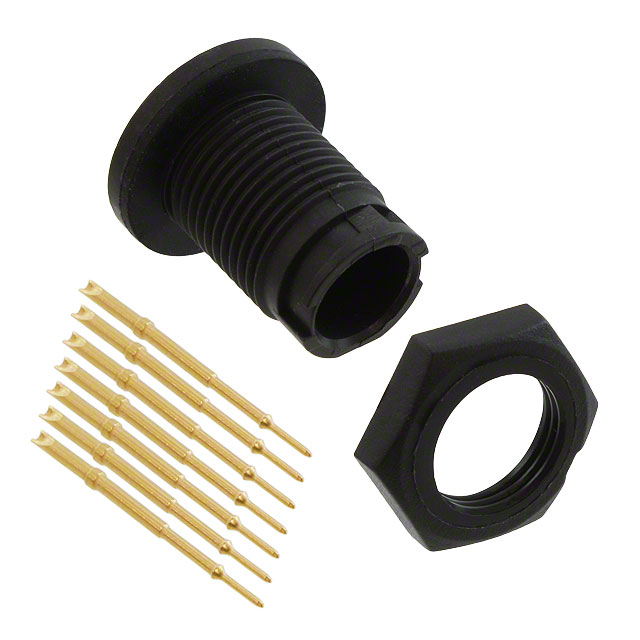

 Switchcraft Inc. | 85 °C | -40 °C | UL94 V-0 | IP66 IP67 IP68 | Unshielded | Plastic | Elastomer | Keyed | Gold | 125 VAC | Bayonet Lock | Communication Systems Industrial Marine Medical | Black | Copper Alloy | Crimp Solder Cup | Bulkhead - Front Side Nut | 7 | Male Pins Receptacle |
