ALCOSWITCH AV19 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

Catalog

AV19 SPM 0.4VA FIX RING LED GREEN 24V

...

Part	Mechanical Life	Electrical Life	Illumination Type, Color	Type	Voltage Rating - DC	Actuator Type	Ingress Protection	Actuator Marking	Features	Current Rating (Amps)	Illumination Voltage (Nominal)	Operating Temperature [Max]	Operating Temperature [Min]	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Circuit	Mounting Type	Termination Style	Voltage Rating - AC	Switch Function
TE Connectivity AMP Connectors AV1910R624R04	1000000 Cycles	50000 Cycles	Green LED	Anti-Vandal Illuminated	20 V	Button Flush Round	IP67 - Dust Tight Waterproof	No Marking	Fixed LED Ring	0.4 VA	24 V	55 °C	-20 ░C	Silver	19.2 mm	SPDT	Panel Mount Front	Solder Lug	20 V	On-Mom
TE Connectivity AMP Connectors AV1911D124Q04			LED White	Anti-Vandal Illuminated		Button Flush Round	IP67 - Dust Tight Waterproof	No Marking	Spot LED	3 A	24 V	55 °C	-20 ░C	Silver	19.2 mm	SPDT	Panel Mount Front	Solder Lug	250 V	On-On

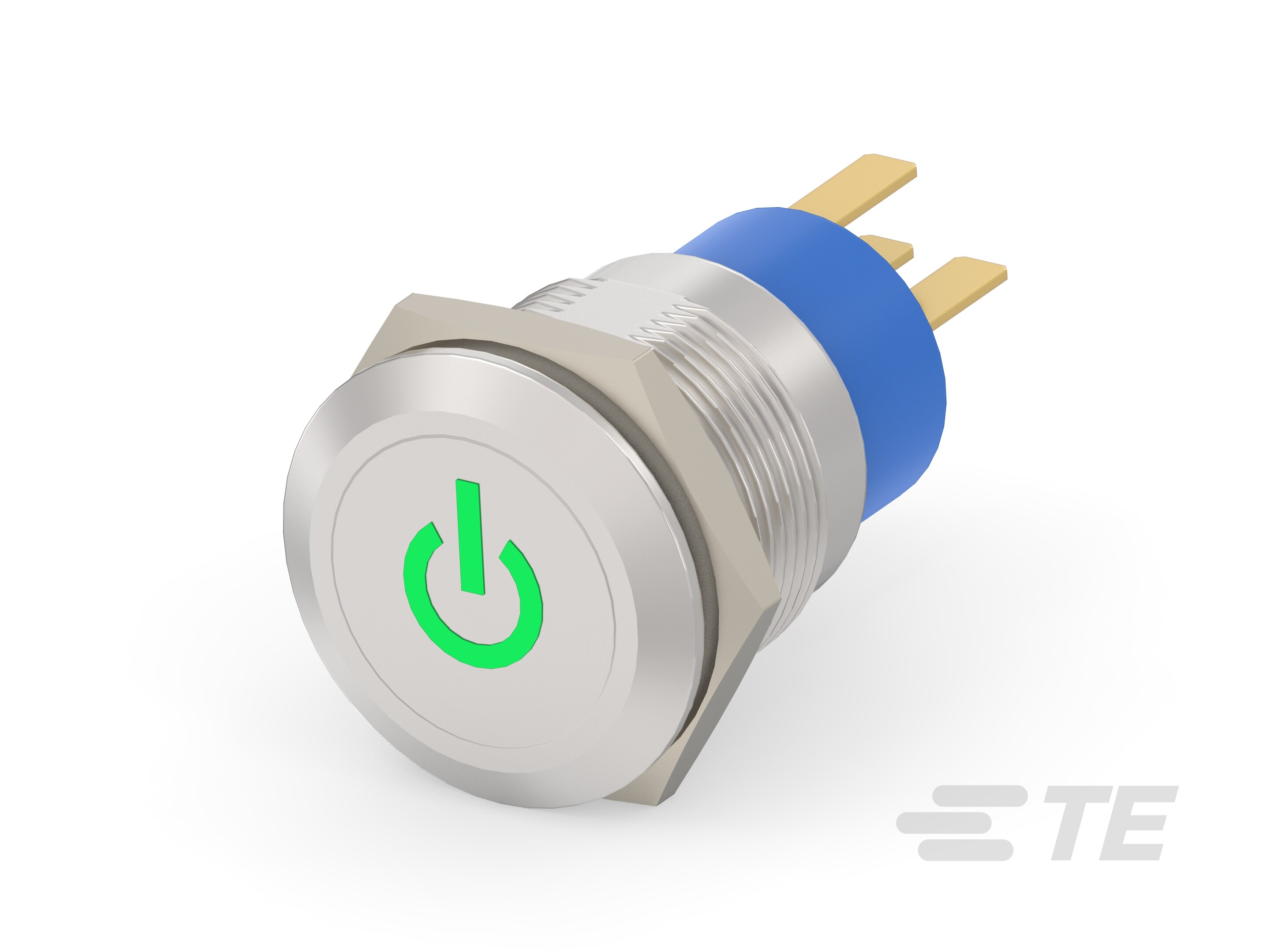

TE Connectivity AMP Connectors AV1911P612R04			Green LED	Anti-Vandal Illuminated	20 V	Button Flush Round	IP67 - Dust Tight Waterproof	Power Symbol		0.4 VA	12 VDC	55 °C	-20 ░C	Silver	19.2 mm	SPDT	Panel Mount Front	Solder Lug	20 V	On-On

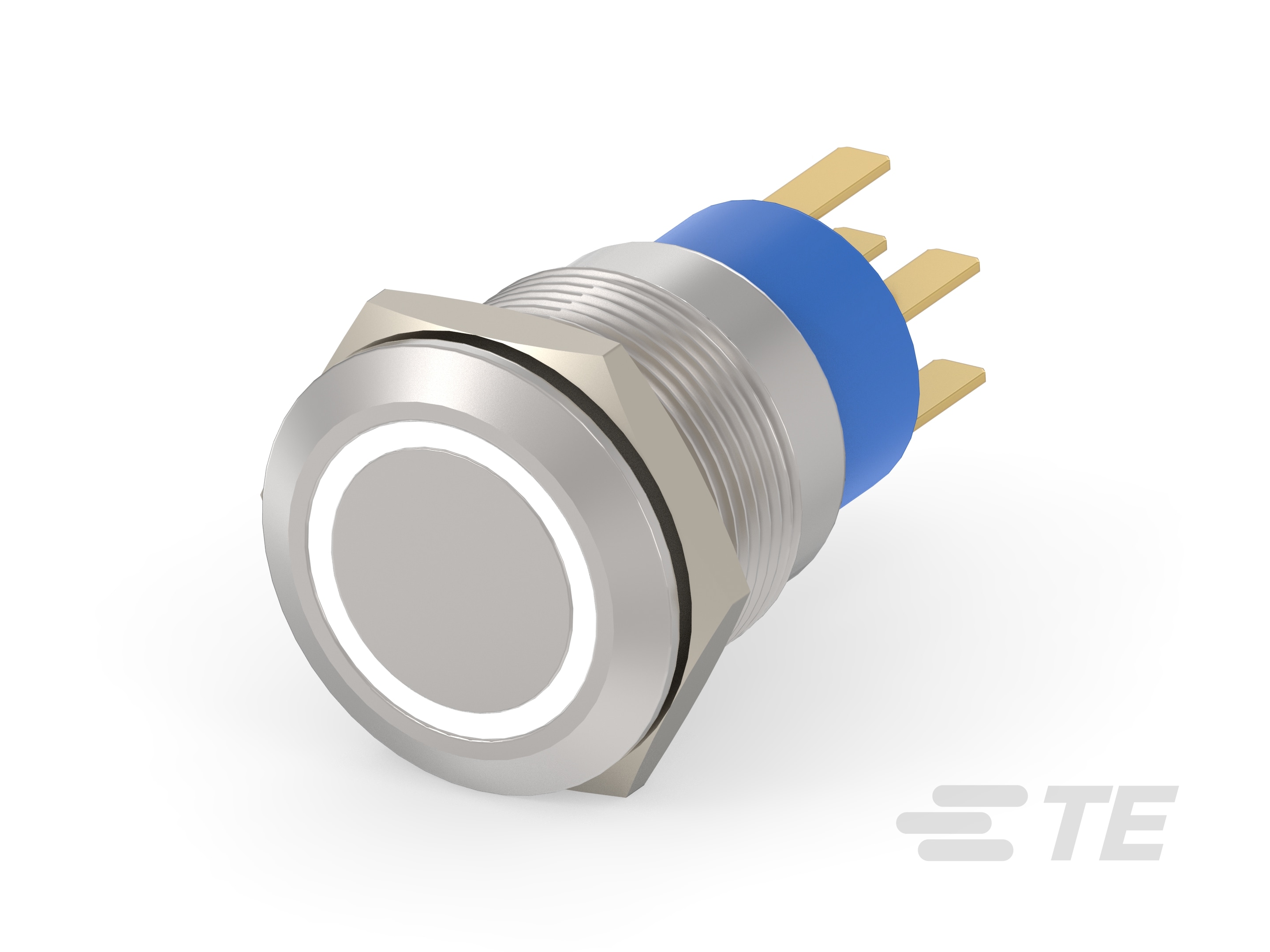

TE Connectivity AMP Connectors AV1921R124R04	500000 Cycles	50000 Cycles	LED White	Anti-Vandal Illuminated	20 V	Button Flush Round	IP67 - Dust Tight Waterproof	No Marking	Fixed LED Ring	0.4 VA	24 V	55 °C	-20 ░C	Silver	19.2 mm	DPDT	Panel Mount Front	Solder Lug	20 V	On-On
TE Connectivity AMP Connectors AV1920PB24T5Q04	1000000 Cycles	50000 Cycles	Blue LED Red	Anti-Vandal Illuminated		Button Flush Round	IP67 - Dust Tight Waterproof	Power Symbol		3 A	24 V	55 °C	-20 ░C	Silver	19.2 mm	DPDT	Panel Mount Front	Wire Leads	250 V	On-Mom
TE Connectivity AMP Connectors AV1911E612Q04	500000 Cycles	50000 Cycles	Green LED	Anti-Vandal Illuminated		Button Flush Round	IP67 - Dust Tight Waterproof	No Marking		3 A	12 VDC	55 °C	-20 ░C	Silver	19.2 mm	SPDT	Panel Mount Front	Solder Lug	250 V	On-On
TE Connectivity AMP Connectors AV1911EG12Q04			LED Red Yellow	Anti-Vandal Illuminated		Button Flush Round	IP67 - Dust Tight Waterproof	No Marking		3 A	12 VDC	55 °C	-20 ░C	Silver	19.2 mm	SPDT	Panel Mount Front	Solder Lug	250 V	On-On
TE Connectivity AMP Connectors AV1910RA12T5Q04			Green/Red LED	Anti-Vandal Illuminated		Button Flush Round	IP67 - Dust Tight Waterproof	No Marking	Fixed LED Ring	3 A	12 VDC	55 °C	-20 ░C	Silver	19.2 mm	SPDT	Panel Mount Front	Wire Leads	250 V	On-Mom

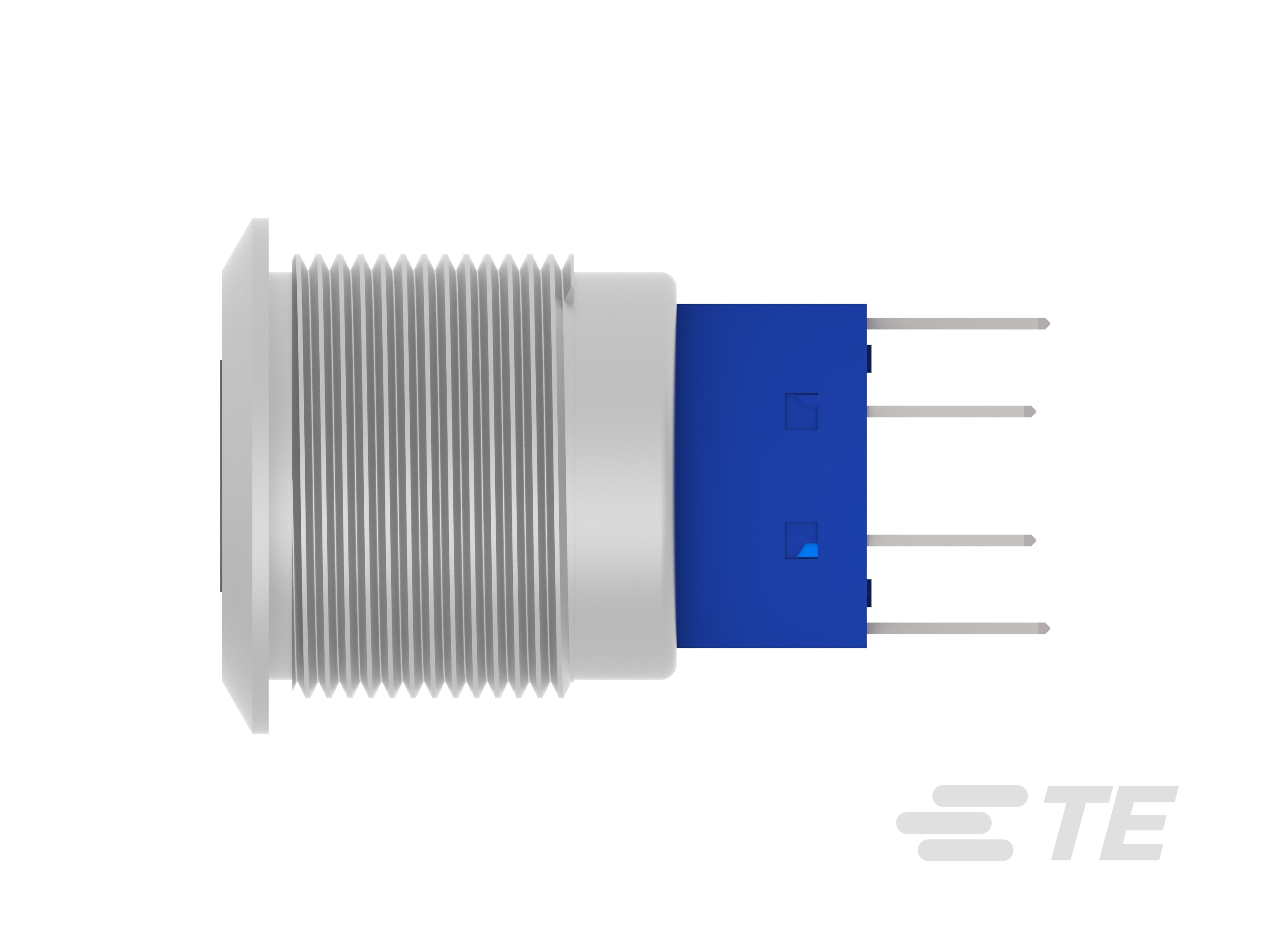

TE Connectivity AMP Connectors AV1920DG12Q04	1000000 Cycles	50000 Cycles	LED Red Yellow	Anti-Vandal Illuminated		Button Flush Round	IP67 - Dust Tight Waterproof	No Marking	Spot LED	3 A	12 VDC	55 °C	-20 ░C	Silver	19.2 mm	DPDT	Panel Mount Front	Solder Lug	250 V	On-Mom
TE Connectivity AMP Connectors AV1910PA24Q04			Green/Red LED	Anti-Vandal Illuminated		Button Flush Round	IP67 - Dust Tight Waterproof	Power Symbol		3 A	24 V	55 °C	-20 ░C	Silver	19.2 mm	SPDT	Panel Mount Front	Solder Lug	250 V	On-Mom
