ALCOSWITCH ADP Series

Catalog

ADPA0804=PIANO DIP SWITCH

Part	Mounting Type	Circuit	Number of Positions	Actuator Type	Actuator Level	Body Material	Electrical Life	Mechanical Life	Length	Length	Pitch	Pitch	Contact Material	Termination Style	Height Above Board [z]	Height Above Board [z]	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating	Color	Contact Type	Fastening Type	Insulation Material	Contact Termination	Number of Rows [custom]	Connector Type	Features

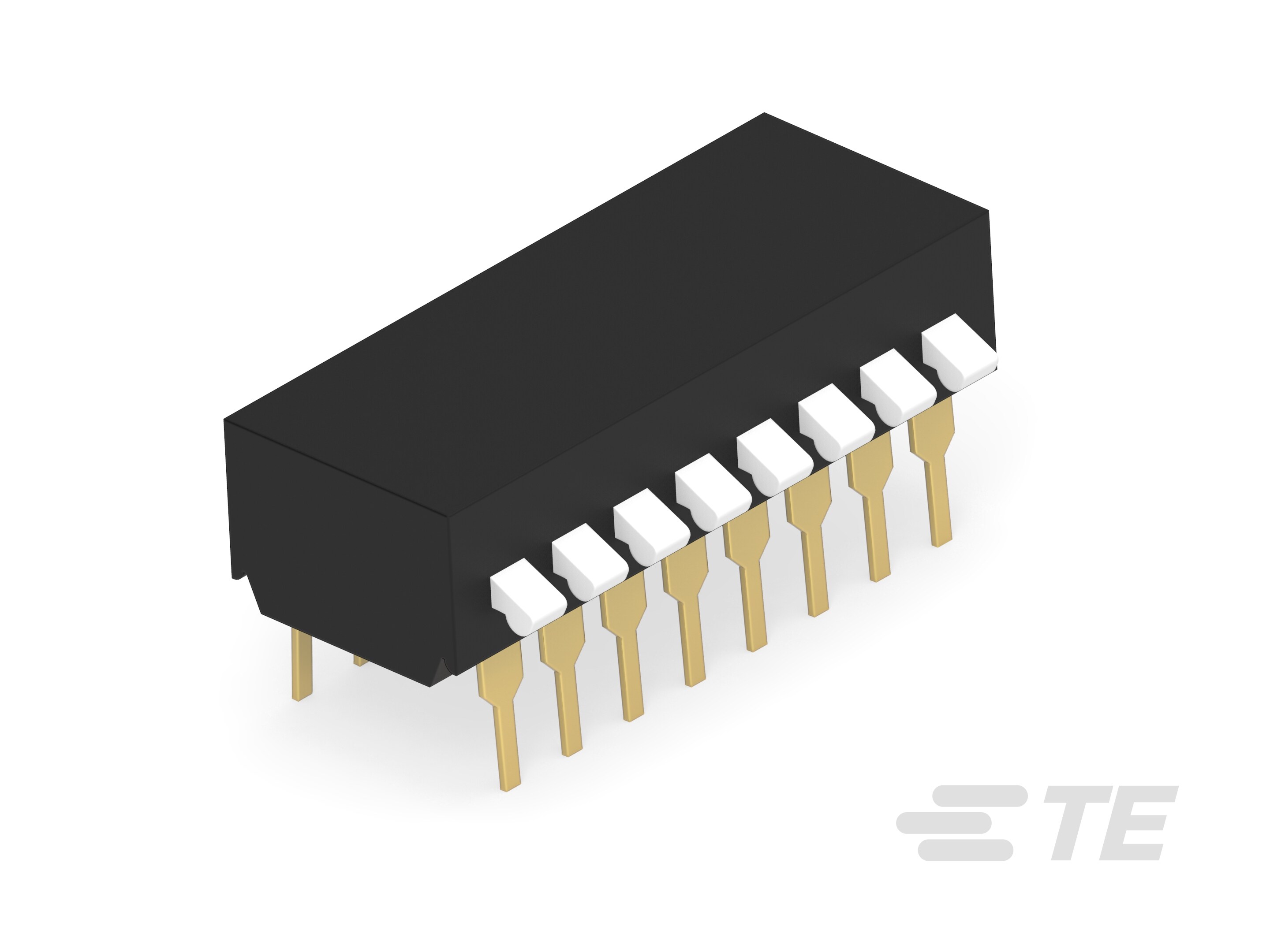

TE Connectivity AMP Connectors 5-1571999-6	Through Hole	SPST	8	Piano	Raised

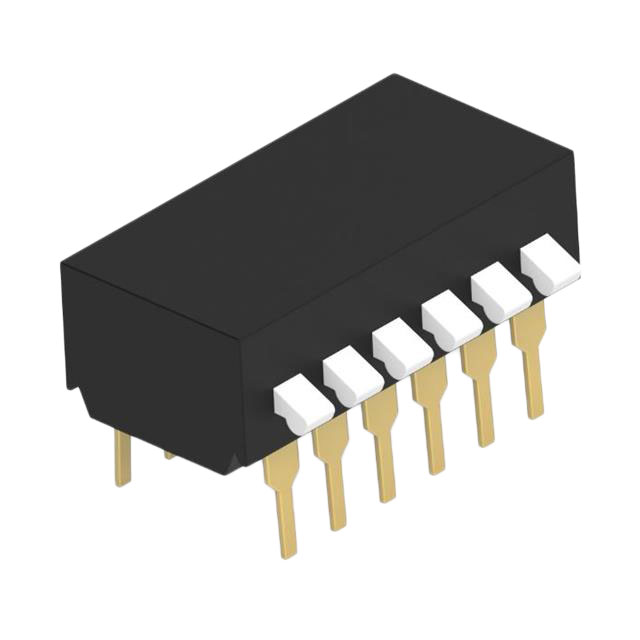

TE Connectivity AMP Connectors 1-1571999-9	Right Angle Surface Mount	SPST	6	Piano	Raised	Polyphenylene Sulfide (PPS)	1000 Cycles	1000 Cycles	17.22 mm	0.678 in	2.54 mm	0.1 "	Copper Alloy	Gull Wing	0.273 in	6.93 mm	Gold	85 °C	-30 ░C	25 mA	24 VDC
TE Connectivity AMP Connectors 4-1571999-5	Surface Mount	SPST	4	Piano	Raised

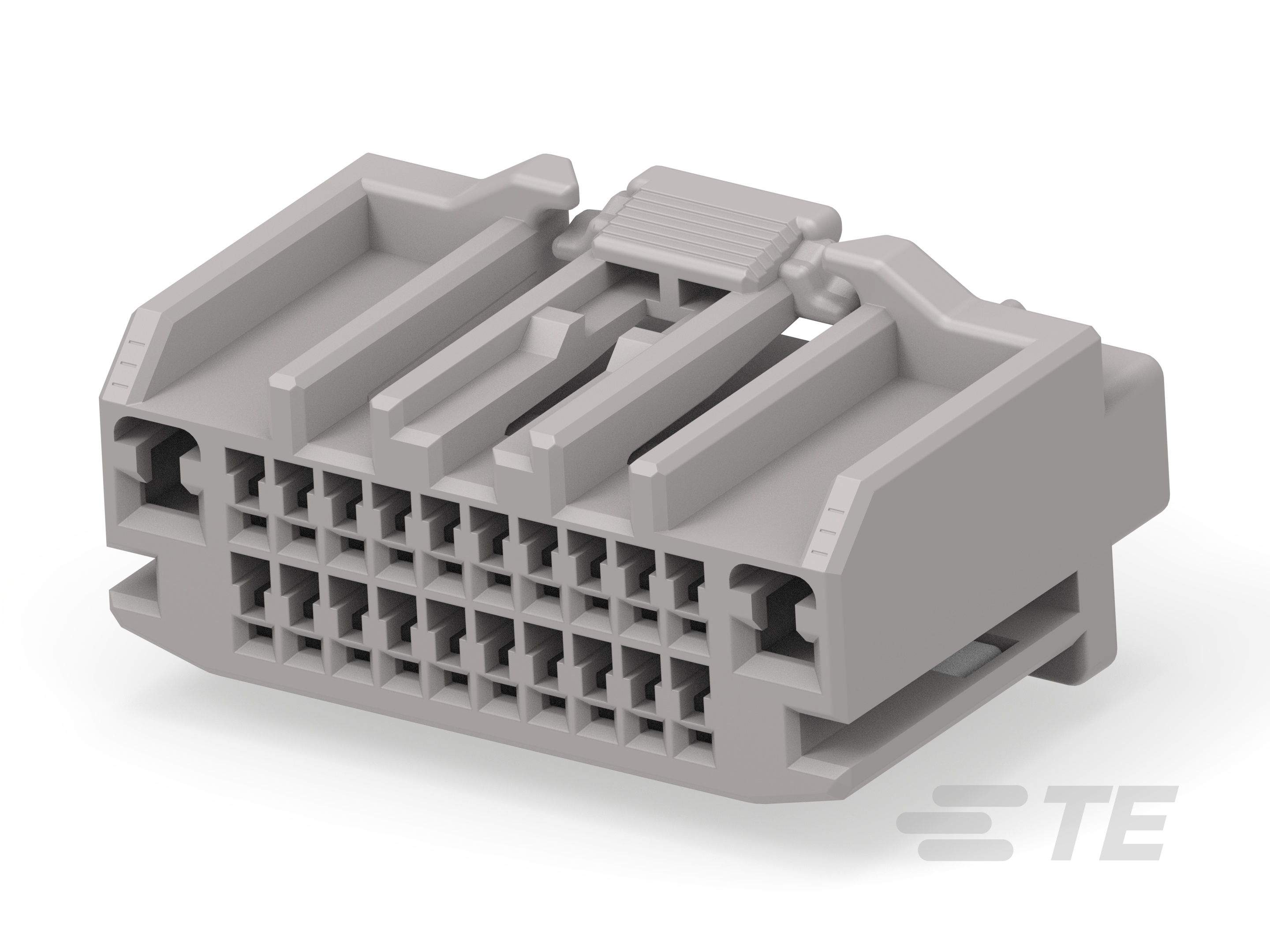

TE Connectivity AMP Connectors 1438761-6	Free Hanging (In-Line)		22								2.5 mm	0.098 in						105 ░C	-30 ░C			Gray	Female Socket	Latch Lock	Thermoplastic	Crimp	2	Plug	Lock Plate
TE Connectivity AMP Connectors 4-1571999-4	Through Hole	SPST	4	Piano	Raised
