EN3C18 Series

Catalog

CONN PLUG FMALE 18P SOLDER CUP

Part	Material Flammability Rating	Mounting Type	Contact Finish - Mating	Backshell Material, Plating	Fastening Type	Ingress Protection	Orientation	Connector Type	Voltage Rating	Insert Material	Number of Positions	Color	Current Rating (Amps)	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Cable Opening [diameter]	Cable Opening [diameter]	Contact Material	Features	Applications	Primary Material	Termination

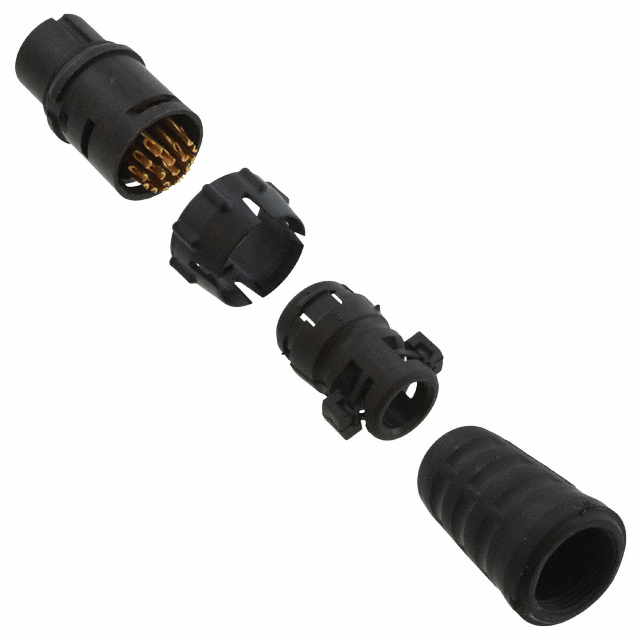

Switchcraft Inc. EN3C18F26SX	UL94 V-0	Free Hanging (In-Line)	Gold	Thermoplastic	Bayonet Lock	IP66/IP68	Keyed	Female Sockets Plug	250 VAC	Elastomer	18	Black	3 A	Unshielded	65 °C	-40 °C	4.06 mm 6.73 mm	0.16 in 0.265 in	Copper Alloy	Backshell Cable Clamp Coupling Nut	General Purpose Instrumentation Marine Medical	Plastic
Switchcraft Inc. EN3C18M26X	UL94 V-0	Free Hanging (In-Line)	Gold	Thermoplastic	Bayonet Lock	IP66/IP68	Keyed	Male Pins Plug	250 VAC	Elastomer	18	Black	3 A	Unshielded	65 °C	-40 °C	4.06 mm 6.73 mm	0.16 in 0.265 in	Copper Alloy	Backshell Cable Clamp Coupling Nut	General Purpose Instrumentation Marine Medical	Plastic

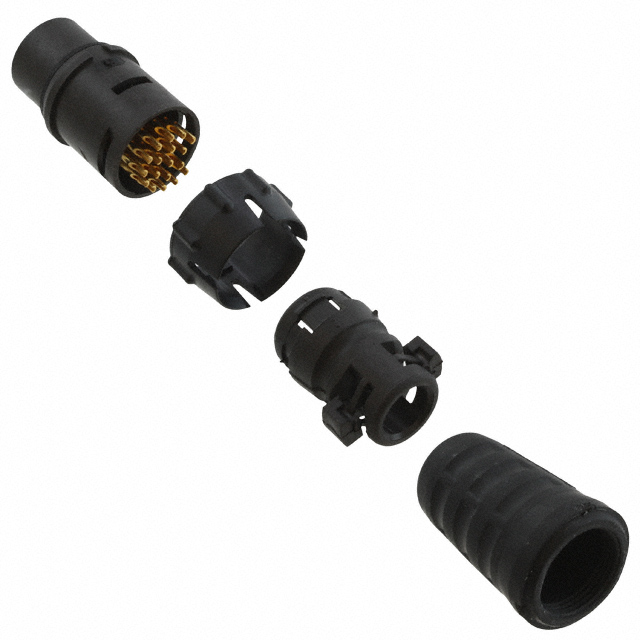

Switchcraft Inc. EN3C18F26X	UL94 V-0	Free Hanging (In-Line)	Gold	Thermoplastic	Bayonet Lock	IP66/IP68	Keyed	Female Sockets Plug	250 VAC	Elastomer	18	Black	3 A	Unshielded	65 °C	-40 °C	4.06 mm 6.73 mm	0.16 in 0.265 in	Copper Alloy	Backshell Cable Clamp Coupling Nut	General Purpose Instrumentation Marine Medical	Plastic

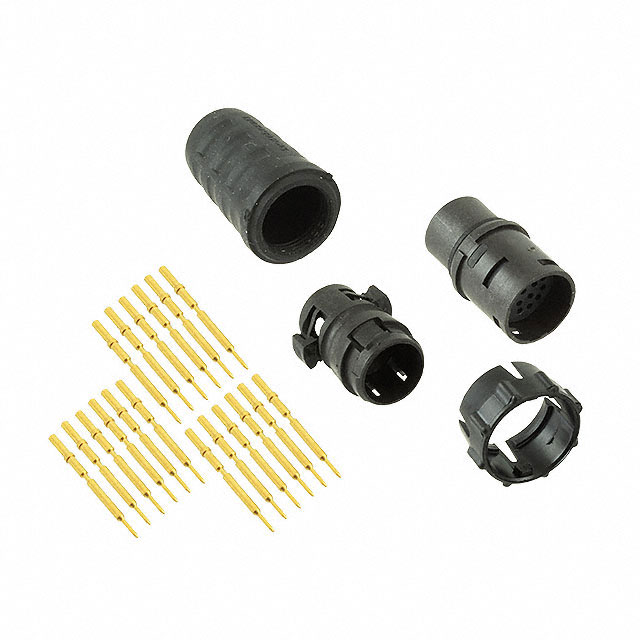

Switchcraft Inc. EN3C18M26CX	UL94 V-0	Free Hanging (In-Line)	Gold	Thermoplastic	Bayonet Lock	IP66/IP68	Keyed	Male Pins Plug	250 VAC	Elastomer	18	Black	3 A	Unshielded	65 °C	-40 °C	4.06 mm 6.73 mm	0.16 in 0.265 in	Copper Alloy	Backshell Cable Clamp Coupling Nut	General Purpose Instrumentation Marine Medical	Plastic	Crimp
