EN3C5F Series

Catalog

CONN PLUG FMALE 5POS GOLD CRIMP

Part	Backshell Material, Plating	Applications	Insert Material	Color	Ingress Protection	Material Flammability Rating	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Contact Finish - Mating	Primary Material	Features	Contact Material	Connector Type	Mounting Type	Cable Opening [diameter]	Cable Opening [diameter]	Termination	Shielding	Voltage Rating	Current Rating (Amps)

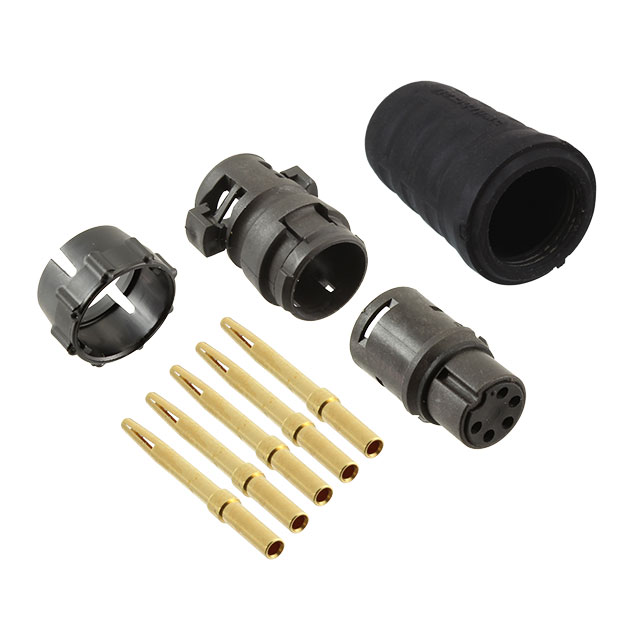

Switchcraft Inc. EN3C5FCX	Thermoplastic	General Purpose Instrumentation Marine Medical	Elastomer	Black	IP66/IP68	UL94 V-0	Bayonet Lock	65 °C	-40 °C	Keyed	Gold	Plastic	Backshell Cable Clamp Coupling Nut	Copper Alloy	Female Sockets Plug	Free Hanging (In-Line)	4.06 mm 6.73 mm	0.16 in 0.265 in	Crimp	Unshielded	250 VAC	7.5 A
Switchcraft Inc. EN3C5FKX	Thermoplastic	General Purpose Instrumentation Marine Medical	Elastomer	Black	IP66/IP68	UL94 V-0	Bayonet Lock	65 °C	-40 °C	Keyed	Gold	Plastic	Backshell Cable Clamp Coupling Nut	Copper Alloy	Female Sockets Plug	Free Hanging (In-Line)	4.06 mm 6.73 mm	0.16 in 0.265 in		Unshielded	250 VAC	7.5 A
