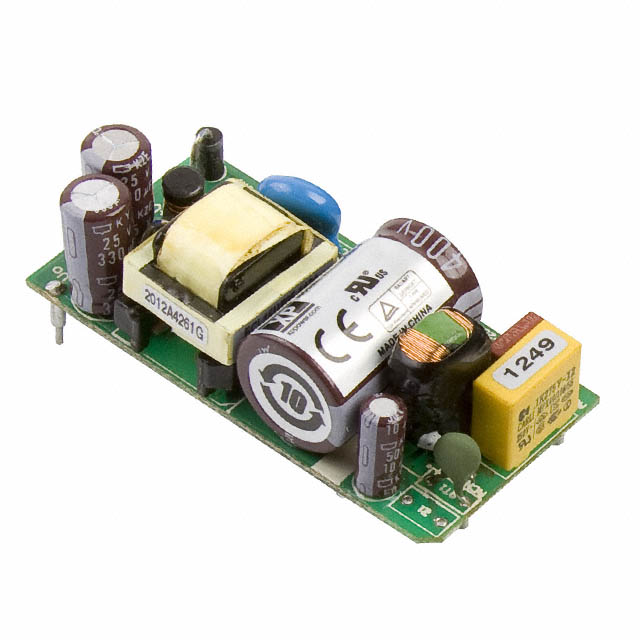

ECL15UT03 Series
Manufacturer: XP POWER
Beta
⌘K
AC/DC CONVERTER 5V +/-15V 15W
| Part | Applications | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) | Features | Number of Outputs | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Package / Case | Mounting Type | Power (Watts) | Voltage - Output 3 | Voltage - Output 1 | Line Regulation | Load Regulation | Standard Number | Voltage - Output 2 | Approval Agency | Efficiency | Type | Weight | Weight | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 XP POWER | ITE (Commercial) | 150 mA | 2 A | 150 mA | Universal Input | 3 | 1.21 in | 62 mm | 0.96 " | 2.44 in | 30.7 mm | 24.4 mm | 7-DIP Module | Through Hole | 15 W | -15 V | 5 V | 0.5 % | 1 % | 62368-1 | 15 V | CSA cUL EN IEC UL | 81 % | Open Frame | 39.92 g | 0.088 lb | -20 °C | 70 °C |
