ALCOSWITCH AVC22 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

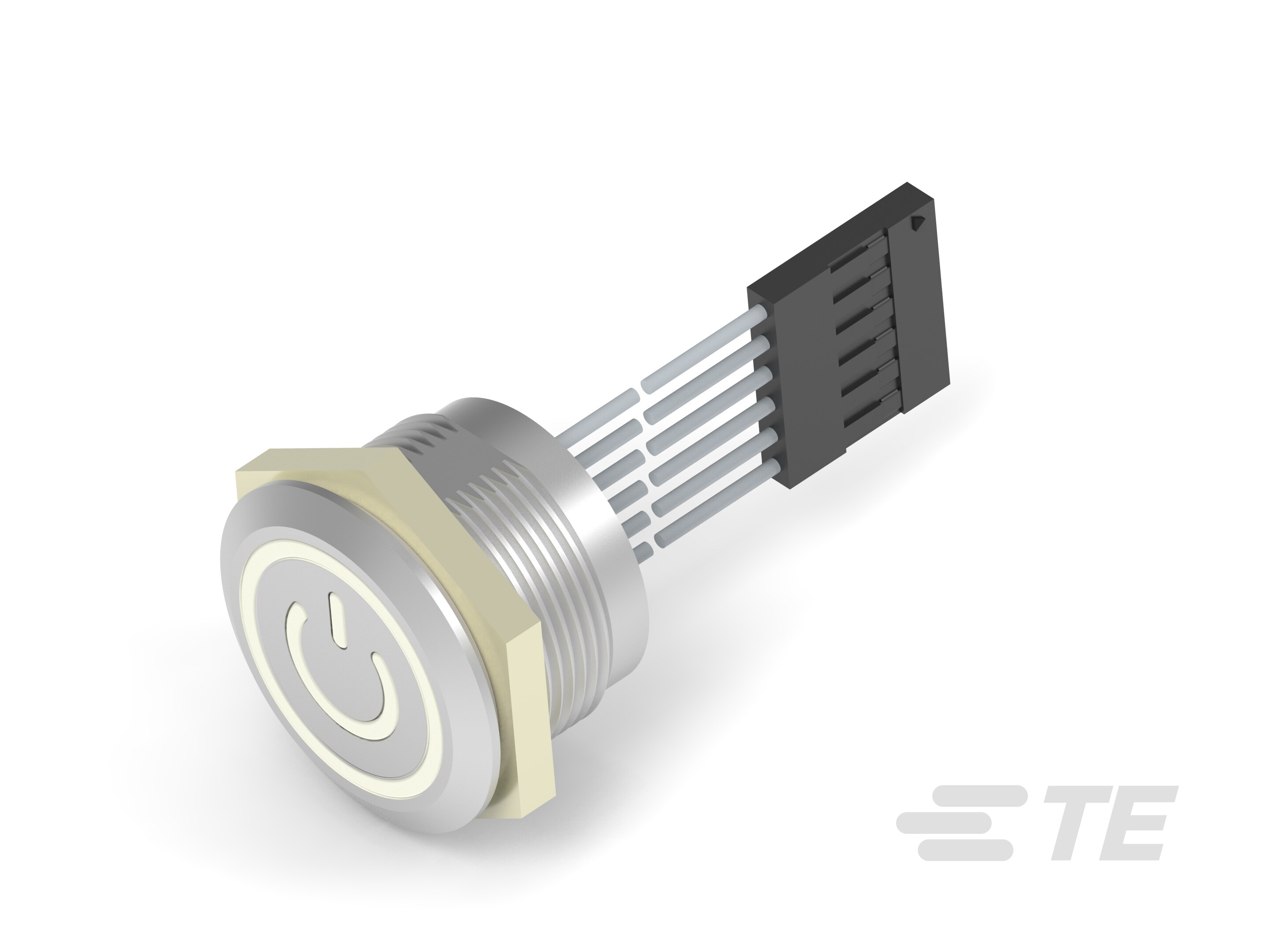

AVC22L FLAT AIO RGB RL 500MM/1X6

Part	Electrical Life	Mechanical Life	Circuit	Ingress Protection	Panel Cutout Dimensions [diameter]	Actuator Type	Switch Function	Illumination Type, Color	Mounting Type	Color - Actuator/Cap	Voltage Rating - DC	Type	Current Rating (Amps)	Actuator Marking
TE Connectivity AMP Connectors AVC22LAIOFE1DT5A04	50 000 000	50000000 Cycles	SPST	IP68 - Dust Tight Waterproof	22.2 mm	Button Flush Round	Off-On	Blue Green LED Red	Panel Mount Front	Silver	24 V	Anti-Vandal Capacitive Illuminated	1 A	No Marking
TE Connectivity AMP Connectors AVC22LS16FE0DT5A04			SPST	IP68 - Dust Tight Waterproof	22.2 mm	Button Flush Round	Off-On	Blue Green LED Red	Panel Mount Front	Silver	24 V	Anti-Vandal Capacitive Illuminated	1 A	No Marking

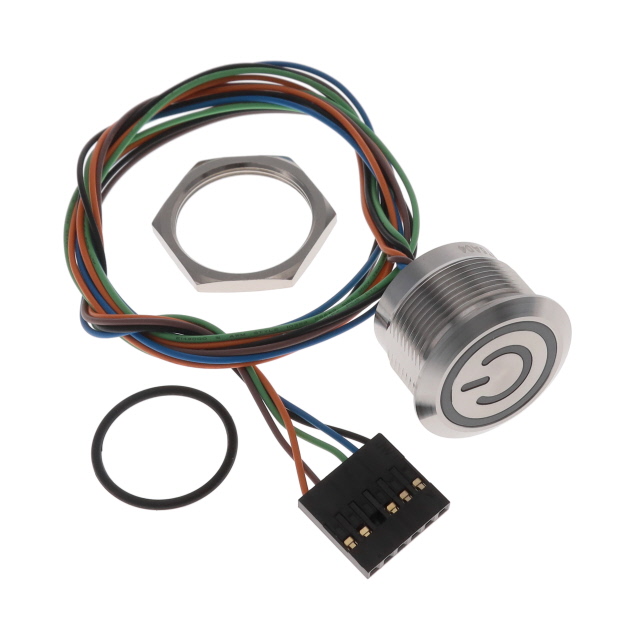

TE Connectivity AMP Connectors AVC22LS04FE13T5A04	50 000 000	50000000 Cycles	SPST	IP68 - Dust Tight Waterproof	22.2 mm	Button Flush Round	Off-On	Blue/Green LED	Panel Mount Front	Silver	24 V	Anti-Vandal Capacitive Illuminated	1 A	No Marking
TE Connectivity AMP Connectors AVC22LS16FE03T5A04	50 000 000	50000000 Cycles	SPST	IP68 - Dust Tight Waterproof	22.2 mm	Button Flush Round	Off-On	Blue/Green LED	Panel Mount Front	Silver	24 V	Anti-Vandal Capacitive Illuminated	1 A	No Marking
TE Connectivity AMP Connectors AVC22LS04FE1DT5A04	50 000 000	50000000 Cycles	SPST	IP68 - Dust Tight Waterproof	22.2 mm	Button Flush Round	Off-On	Blue Green LED Red	Panel Mount Front	Silver	24 V	Anti-Vandal Capacitive Illuminated	1 A	No Marking
TE Connectivity AMP Connectors AVC22MS16FE1DT5A04			SPST-NO	IP68 - Dust Tight Waterproof	22.2 mm	Button Flush Round	Off-Mom	Blue Green LED Red	Panel Mount Front	Silver	24 V	Anti-Vandal Capacitive Illuminated	1 A	No Marking

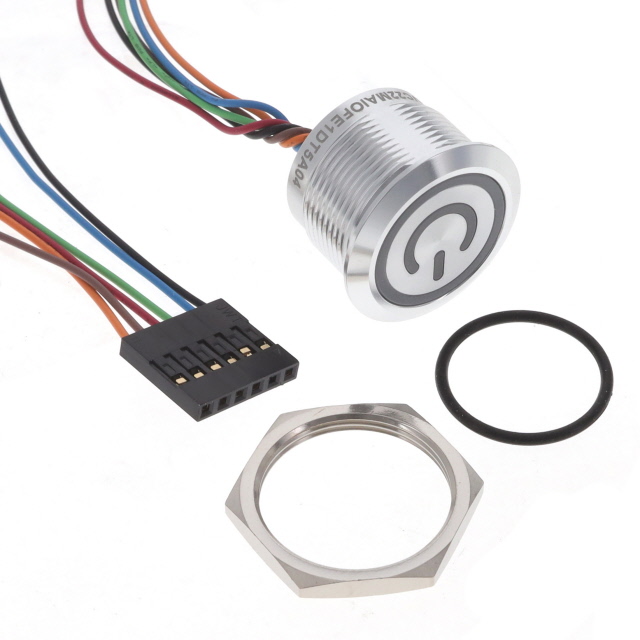

TE Connectivity AMP Connectors AVC22MAIOFE1DT5A04	50 000 000	50000000 Cycles	SPST-NO	IP68 - Dust Tight Waterproof	22.2 mm	Button Flush Round	Off-Mom	Blue Green LED Red	Panel Mount Front	Silver	24 V	Anti-Vandal Capacitive Illuminated	1 A	No Marking

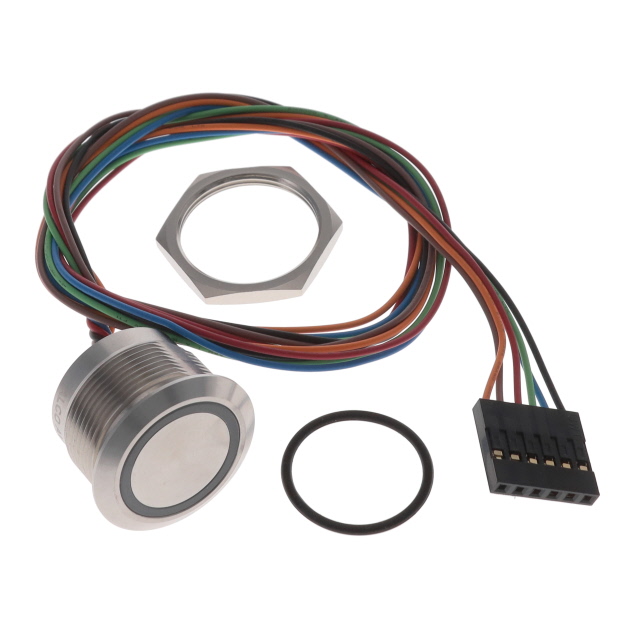

TE Connectivity AMP Connectors AVC22MS04FE0DT5A04	50 000 000	50000000 Cycles	SPST-NO	IP68 - Dust Tight Waterproof	22.2 mm	Button Flush Round	Off-Mom	Blue Green LED Red	Panel Mount Front	Silver	24 V	Anti-Vandal Capacitive Illuminated	1 A	No Marking
TE Connectivity AMP Connectors AVC22LS16FE1DT5A04			SPST	IP68 - Dust Tight Waterproof	22.2 mm	Button Flush Round	Off-On	Blue Green LED Red	Panel Mount Front	Silver	24 V	Anti-Vandal Capacitive Illuminated	1 A	No Marking

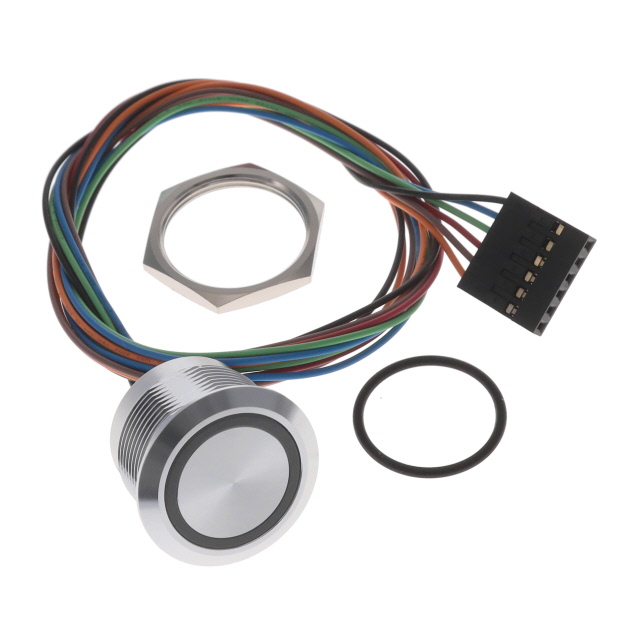

TE Connectivity AMP Connectors AVC22MAIOFE0DT5A04	50 000 000	50000000 Cycles	SPST-NO	IP68 - Dust Tight Waterproof	22.2 mm	Button Flush Round	Off-Mom	Blue Green LED Red	Panel Mount Front	Silver	24 V	Anti-Vandal Capacitive Illuminated	1 A	No Marking
