OAB18055 Series
Manufacturer: Orion Fans
Beta
⌘K

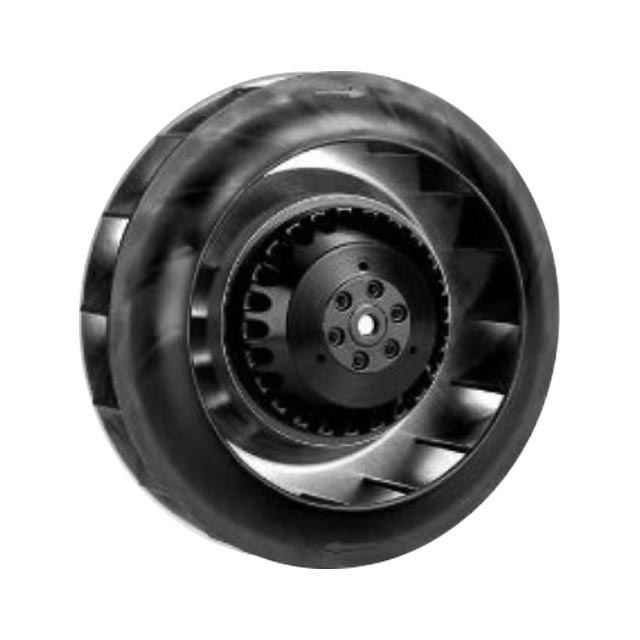

FAN IMP MTRZD 182X55MM 230VAC W/
| Part | Lifetime @ Temp. | Features | Size / Dimension [diameter] | Size / Dimension | Noise | Bearing Type | Current Rating (Amps) | Termination | Fan Type | Static Pressure | Static Pressure | Voltage - Rated | Width [y] | Material - Frame | Power (Watts) | Material - Blade | RPM | Air Flow | Air Flow | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Ingress Protection | Weight | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Orion Fans | 40000 Hrs | Capacitor | 182 mm | Round | 67 dB | Ball | 0.34 A | 4 Wire Leads | Motorized Impellers | 1.4 in H2O | 348.7 Pa | 230 VAC | 55 mm | Aluminum | 78 W | Thermoplastic | 2800 RPM | 290 CFM | 8.12 m³/min | 60 °C | 60 °C | -40 °C | -40 °C | IP55 - Dust Protected Water Resistant | 1.2 kg | 2.7 lbs |
