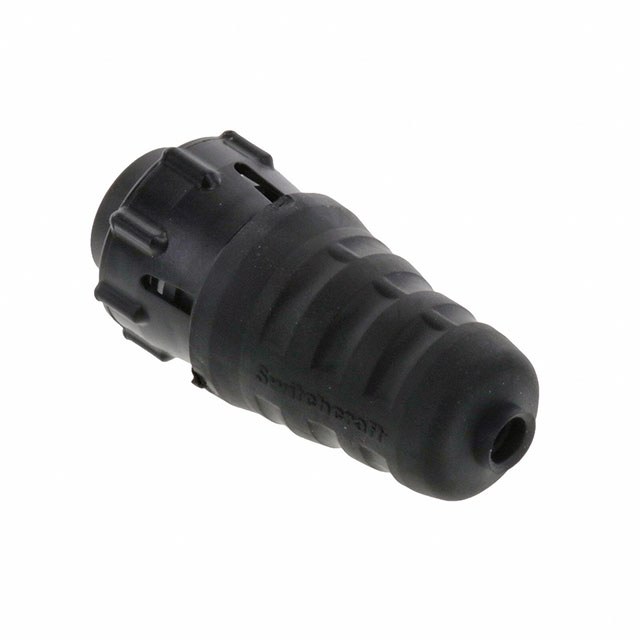

EN3C12 Series
Manufacturer: Switchcraft Inc.
Beta
⌘K
CIRCULAR CONNECTORS & CABLE CONNECTORS ROHS
| Part | Insert Material | Material Flammability Rating | Current Rating (Amps) | Voltage Rating | Applications | Cable Opening [diameter] | Cable Opening [diameter] | Contact Finish - Mating | Color | Features | Orientation | Contact Material | Connector Type | Primary Material | Backshell Material, Plating | Ingress Protection | Mounting Type | Fastening Type | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | Elastomer | UL94 V-0 | 3 A | 250 VAC | General Purpose Instrumentation Marine Medical | 4.06 mm 6.73 mm | 0.16 in 0.265 in | Gold | Black | Backshell Cable Clamp Coupling Nut | Keyed | Copper Alloy | Male Pins Plug | Plastic | Thermoplastic | IP66/IP68 | Free Hanging (In-Line) | Bayonet Lock | 65 °C | -40 °C | 12 | Unshielded |
 Switchcraft Inc. | Elastomer | UL94 V-0 | 3 A | 250 VAC | General Purpose Instrumentation Marine Medical | 4.06 mm 6.73 mm | 0.16 in 0.265 in | Gold | Black | Backshell Cable Clamp Coupling Nut | Keyed | Copper Alloy | Female Sockets Plug | Plastic | Thermoplastic | IP66/IP68 | Free Hanging (In-Line) | Bayonet Lock | 65 °C | -40 °C | 12 | Unshielded |
