ELFH052 Series

Catalog

TERM BLOCK HDR 5POS 90DEG 5.08MM

Part	Contact Tail Length	Contact Tail Length	Positions Per Level	Mounting Type	Pitch [x]	Pitch [x]	Material Flammability Rating	Features	Housing Material	Insulation Height	Insulation Height	Type	Color	Number of Levels	Contact Mating Finish	Header Orientation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - UL	Contact Material	Termination Style	Insulation Height [z]

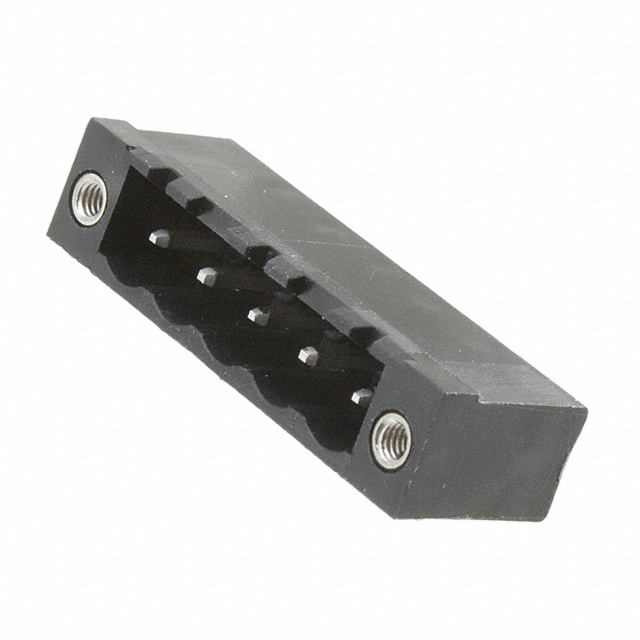

AMPHENOL PCD ELFH05210E	3.94 mm	0.155 in	5	Through Hole	0.2 in	5.08 mm	UL94 V-0	Mating Flange	Polybutylene Terephthalate (PBT)	8.1 mm	0.319 in	Header Male Pins Shrouded (4 Side)	Black	1	Tin	90° Right Angle	-40 °C	105 ░C	300 V	Brass	Solder
AMPHENOL PCD ELFH0525GE
AMPHENOL PCD ELFH05240	3.94 mm	0.155 in	5	Through Hole	0.2 in	5.08 mm	UL94 V-0		Polyamide (PA46) Nylon 4/6	8.1 mm	0.319 in	Header Male Pins Shrouded (2 Side)	Black	1	Tin	90° Right Angle	-40 °C	105 ░C	300 V	Brass	Solder
AMPHENOL PCD ELFH0522G
AMPHENOL PCD ELFH05280	3.94 mm	0.155 in	5	Through Hole	0.2 in	5.08 mm	UL94 V-0		Polyamide (PA46) Nylon 4/6	12.07 mm		Header Male Pins Shrouded (4 Side)	Black	1	Tin	Vertical	-40 °C	105 ░C	300 V	Brass	Solder	0.475 in
AMPHENOL PCD ELFH0528G
AMPHENOL PCD ELFH05260	3.94 mm	0.155 in	5	Through Hole	0.2 in	5.08 mm	UL94 V-0		Polybutylene Terephthalate (PBT)	12.07 mm		Header Male Pins Shrouded (2 Side)	Black	1	Tin	Vertical	-40 °C	105 ░C	300 V	Brass	Solder	0.475 in
