Power Supplies - External/Internal (Off-Board)
PFC500-1024FG
ActiveEOS Power India Private Ltd
AC/DC POWER SUPPLY SINGLE-OUT 24V 21A 500W
Deep-Dive with AI
Search across all available documentation for this part.
Power Supplies - External/Internal (Off-Board)
PFC500-1024FG
ActiveEOS Power India Private Ltd
AC/DC POWER SUPPLY SINGLE-OUT 24V 21A 500W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFC500-1024FG |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output 1 | 21 A |
| Efficiency | 75 % |
| Features | Load Sharing, DC Input Capable, Universal Input, Adjustable Output, Standby Output, PFC, Remote Sense |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 500 W |
| Size / Dimension [x] | 266.7 mm |
| Size / Dimension [x] | 10.5 in |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [z] | 2.5 in |
| Size / Dimension [z] | 63.5 mm |
| Type | Enclosed |
| Voltage - Output 1 | 24 V |

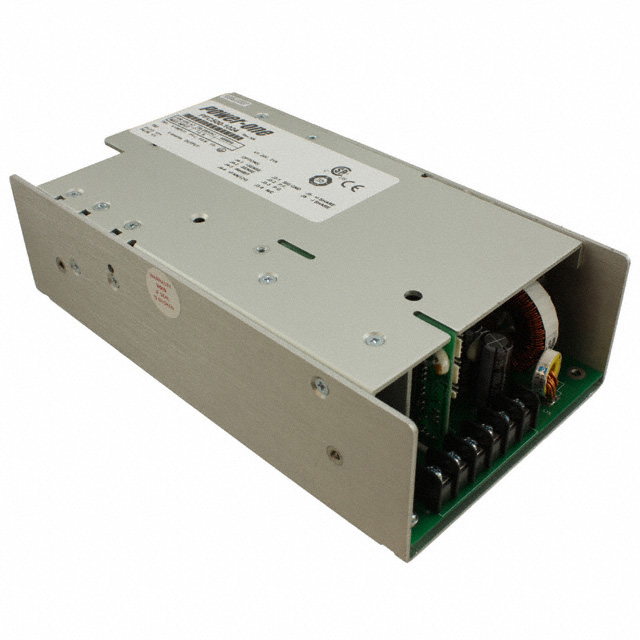

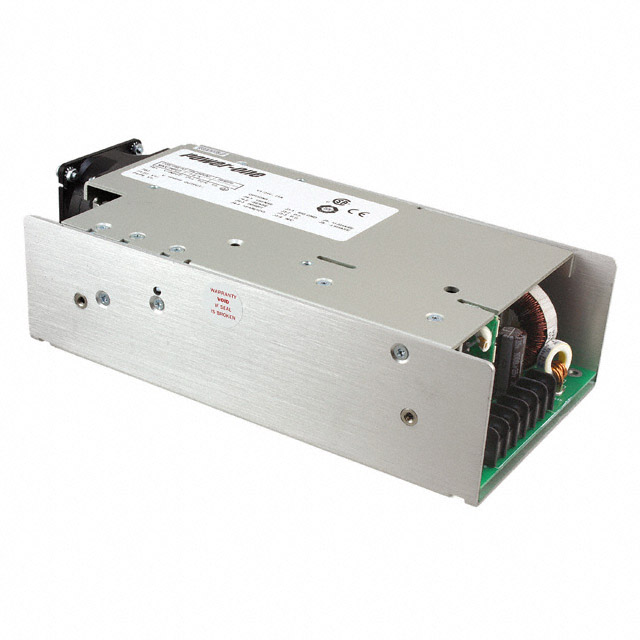

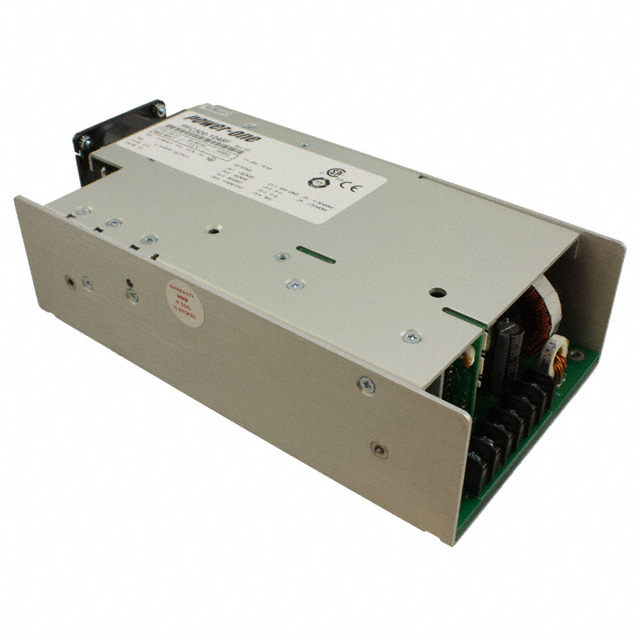

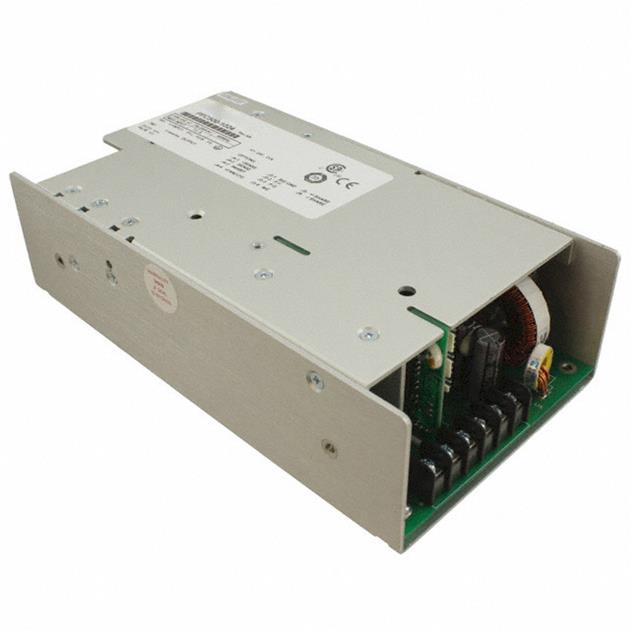

PFC500 Series
| Part | Applications | Current - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Efficiency | Number of Outputs | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Approval Agency | Minimum Load Required | Type | Mounting Type | Features | Size / Dimension [z] | Size / Dimension [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EOS Power India Private Ltd | ITE (Commercial) | 10.4 A | 70 °C | 0 °C | 48 V | 75 % | 1 | 127 mm | 2.5 in | 266.7 mm | 5 " | 63.5 mm | 10.5 in | 500 W | CE | Enclosed | Chassis Mount | Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input | |||
EOS Power India Private Ltd | ITE (Commercial) | 10.4 A | 70 °C | 0 °C | 48 V | 75 % | 1 | 127 mm | 2.5 in | 266.7 mm | 5 " | 63.5 mm | 10.5 in | 500 W | CE | Enclosed | Chassis Mount | Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input | |||
 EOS Power India Private Ltd | ITE (Commercial) | 21 A | 70 °C | 0 °C | 24 V | 75 % | 1 | 127 mm | 2.5 in | 266.7 mm | 5 " | 63.5 mm | 10.5 in | 500 W | CE | Enclosed | Chassis Mount | Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input | |||
 EOS Power India Private Ltd | ITE (Commercial) | 21 A | 70 °C | 0 °C | 24 V | 75 % | 1 | 2.5 in | 228.6 mm | 5 " | 9 in | 500 W | CE | Enclosed | Chassis Mount | Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input | 63.5 mm | 127 mm | |||
 EOS Power India Private Ltd | ITE (Commercial) | 21 A | 70 °C | 0 °C | 24 V | 75 % | 1 | 2.5 in | 228.6 mm | 5 " | 9 in | 500 W | CE | Enclosed | Chassis Mount | Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input | 63.5 mm | 127 mm | |||
EOS Power India Private Ltd | ITE (Commercial) | 10.4 A | 70 °C | 0 °C | 48 V | 75 % | 1 | 2.5 in | 228.6 mm | 5 " | 9 in | 500 W | CE | Enclosed | Chassis Mount | Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input | 63.5 mm | 127 mm | |||
EOS Power India Private Ltd | ITE (Commercial) | 21 A | 70 °C | 0 °C | 24 V | 75 % | 1 | 127 mm | 2.5 in | 266.7 mm | 5 " | 63.5 mm | 10.5 in | 500 W | CE | Enclosed | Chassis Mount | Adjustable Output DC Input Capable Load Sharing PFC Remote Sense Standby Output Universal Input |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Arrow | N/A | 1 | $ 1236.50 | |
Description
General part information
PFC500 Series
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
