PANASONIC 50SVF39M
Capacitors

50SVF39M

Active
Panasonic Industrial Automation Sales

CAP, 39ΜF, 50V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet ENOS-CON™ Capacitors Product Catalog+1
PANASONIC 50SVF39M
Capacitors

50SVF39M

Active
Panasonic Industrial Automation Sales

CAP, 39ΜF, 50V

Deep-Dive with AI

DocumentsTechnical Data Sheet ENOS-CON™ Capacitors Product Catalog+1

Technical Specifications

Parameters and characteristics for this part

Specification50SVF39M
ApplicationsGeneral Purpose
Capacitance39 µF
ESR (Equivalent Series Resistance)25 mOhm
Height - Seated (Max) [Max] [z]12 mm
Height - Seated (Max) [Max] [z]0.472 "
Lifetime @ Temp.1000 Hrs
Mounting TypeSurface Mount
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Package / CaseRadial, Can - SMD
Ripple Current @ High Frequency1.2 A
Ripple Current @ Low Frequency60 mA
Size / Dimension [diameter]0.315 "
Size / Dimension [diameter]8 mm
Surface Mount Land Size [x]0.327 "
Surface Mount Land Size [x]8.3 mm
Surface Mount Land Size [y]8.3 mm
Surface Mount Land Size [y]0.327 in
Tolerance20 %
TypePolymer
Voltage - Rated50 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 1.61
10$ 1.24
50$ 1.14
100$ 0.85
Digi-Reel® 1$ 1.61
10$ 1.24
50$ 1.14
100$ 0.85
Tape & Reel (TR) 400$ 0.83
NewarkEach (Supplied on Cut Tape) 1$ 1.58
10$ 1.22
25$ 1.17
50$ 1.12
100$ 0.90

Description

General part information

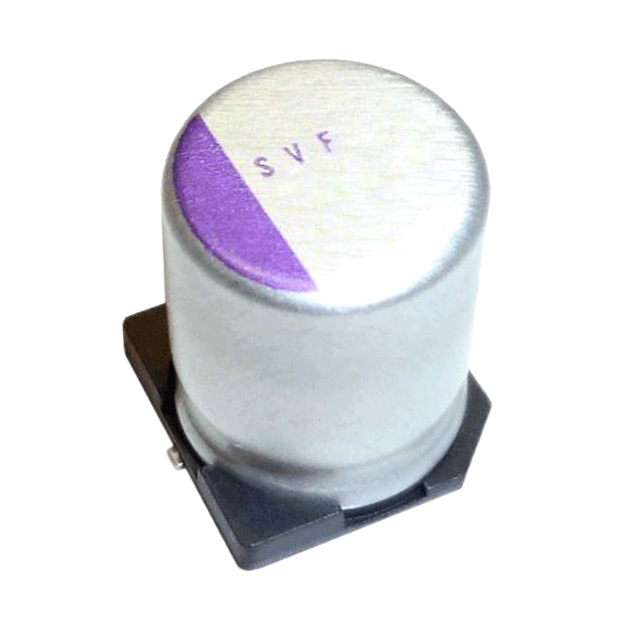

50SVF Series

CAP, 39ΜF, 50V
