RJG.1B.307.CLA

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS 7P FIX COUPLER W/KEY SOLDER, NUT FIXING

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

Connectors, Interconnects

RJG.1B.307.CLA

Active

LEMO

CIRCULAR PUSH PULL CONNECTORS 7P FIX COUPLER W/KEY SOLDER, NUT FIXING

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RJG.1B.307.CLA

Connector Style	Standard
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Male Pins
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Features	Mounting Hardware
Housing Color	Silver
Housing Finish	Chrome
Housing Material	Brass
Includes	1 Adapter, 1 Nut
Ingress Protection	IP50
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions (Convert From)	7
Number of Positions (Convert To)	7
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation (Convert From)	J
Orientation (Convert To)	G
Shell Size - Insert (Convert From)	307
Shell Size - Insert (Convert To) [custom]	307
Shielding	Shielded

PHG.1B Series

Circular Push Pull Connectors BEND RELIEF

...

Part	Number of Positions	Connector Type	Mounting Type	Contact Material	Shell Finish	Shielding	Primary Material	Shell Material	Features	Material Flammability Rating	Cable Opening [custom]	Cable Opening [custom]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Contact Finish - Mating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Backshell Material, Plating	Current Rating (Amps)	Insert Material	Orientation	Fastening Type	Termination	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Mounting Feature	Contact Shape	Contact Size	Type	Note	Housing Color	Contact Type	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Cable Opening [diameter]

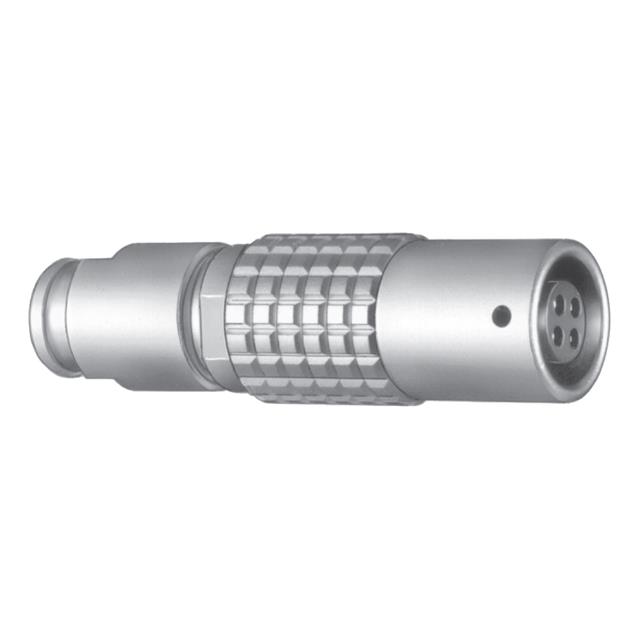

LEMO PHG.1B.307.CLLD72	7	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0	0.244 in 0.283 in	6.2 mm 7.2 mm	59 Áin	1.5 Ám	Silver	Gold	307	-55 °C	250 °C	IP50	Brass Chrome	7 A	Polyetheretherketone (PEEK)	G	Push-Pull
LEMO PHG.1B.303.CYMD72Z		Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0	0.244 in 0.283 in	6.2 mm 7.2 mm	59 Áin	1.5 Ám	Silver	Gold	303	-55 °C	250 °C	IP50	Brass Chrome	12 A	Polyetheretherketone (PEEK)	G	Push-Pull	Crimp
LEMO PHG.1B.304.CLLD52Z	4	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0			59 Áin	1.5 Ám	Silver	Gold	304	-55 °C	250 °C	IP50	Brass Chrome	10 A	Polyetheretherketone (PEEK)	G	Push-Pull		0.165 in 0.205 in	4.2 mm	5.2 mm
LEMO PHG.1B.310.CLLD76	10	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0			59 Áin	1.5 Ám	Silver	Gold	310	-55 °C	250 °C	IP50	Brass Chrome	2.5 A	Polyetheretherketone (PEEK)	G	Push-Pull					0.299 in	7.6 mm	0.283 in	7.2 mm
LEMO EEG.1B.304.CLV	4	Receptacle Female Sockets	Panel Mount Right Angle Through Hole	Bronze	Chrome	Shielded	Metal	Brass		UL94 V-0			59 Áin	1.5 Ám	Silver	Gold	304	-55 °C	250 °C	IP50		6 A	Polyetheretherketone (PEEK)	G	Push-Pull	Solder								Bulkhead - Front Side Nut
LEMO PHG.1B.302.CYMD72	2	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0	0.244 in 0.283 in	6.2 mm 7.2 mm	59 Áin	1.5 Ám	Silver	Gold	302	-55 °C	250 °C	IP50	Brass Chrome	15 A	Polyetheretherketone (PEEK)	G	Push-Pull	Crimp

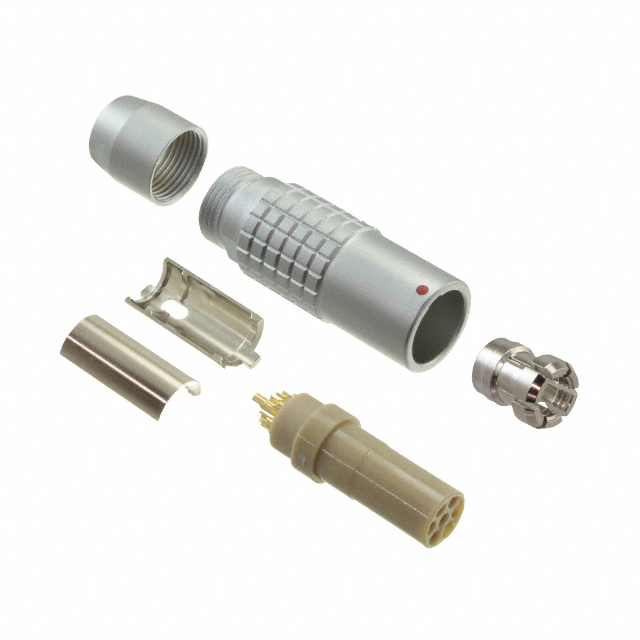

LEMO PHG.1B.307.CLLD52	7	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0			59 Áin	1.5 Ám	Silver	Gold	307	-55 °C	250 °C	IP50	Brass Chrome	7 A	Polyetheretherketone (PEEK)	G	Push-Pull		0.165 in 0.205 in	4.2 mm	5.2 mm
LEMO PHG.1B.308.CYZD76	8	Receptacle Housing	Free Hanging (In-Line)		Chrome	Shielded		Brass	Backshell								308	-55 °C	250 °C	IP50			Polyetheretherketone (PEEK)	G	Detent Lock Push-Pull										Circular	0.7 mm	For Female Sockets	Contacts Not Included	Silver	Crimp
LEMO PHG.1B.308.CLLM31	8	Receptacle Female Sockets	Free Hanging (In-Line)	Bronze	Chrome	Shielded	Metal	Brass	Backshell	UL94 V-0			59 Áin	1.5 Ám	Silver	Gold	308	-55 °C	250 °C	IP50	Brass Chrome	5 A	Polyetheretherketone (PEEK)	G	Push-Pull																0.122 in	0.106 in	3.1 mm	2.7 mm
LEMO PHG.1B.512.CTLD42		Receptacle Female Sockets	Free Hanging (In-Line)		Chrome	Shielded	Metal	Brass	Backshell						Silver	Gold	512	-55 °C	250 °C	IP50	Brass Chrome		Polytetrafluoroethylene (PTFE)	G	Detent Lock Push-Pull			3.1 mm 4.2 mm																	4	7	3	0.122 in 0.165 in
