PJ-102A
ActiveCUI Devices

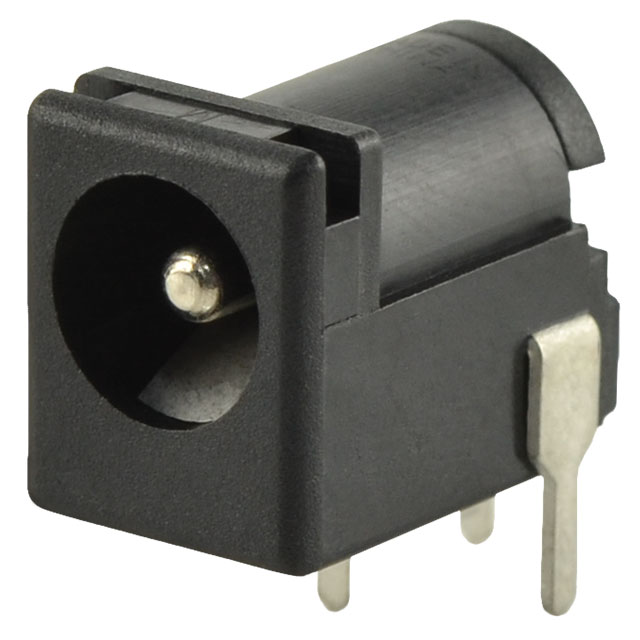

CONN PWR JACK 2X5.5MM SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
Connectors, Interconnects
PJ-102A
ActiveCUI Devices
CONN PWR JACK 2X5.5MM SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PJ-102A |
|---|---|
| Actual Diameter | 2 mm, 6.5 mm |
| Actual Diameter [diameter] | 0.079 in, 0.256 in |
| Body Color | Black |
| Connector Type | Jack |
| Contact Material | Copper Alloy, Brass |
| Contact Material - Plating | Tin |
| Current Rating (Amps) | 2.5 A |
| Gender | Male |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Industry Recognized Mating Diameter [diameter] | 0.079 in, 0.217 " |
| Industry Recognized Mating Diameter [diameter] | 2 mm, 5.5 mm |
| Internal Switch(s) | Single Switch, Normally Closed |
| Material Flammability Rating | UL94 V-0 |
| Mating Length/Depth [custom] | 9 mm |
| Mating Length/Depth [custom] | 0.354 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions/Contacts | 3 Conductors, 2 Conductors |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shielding | Unshielded |
| Termination | Solder |
| Voltage - Rated | 24 VDC |
PJ-102 Series
| Part | Mounting Type | Number of Positions/Contacts | Current Rating (Amps) | Internal Switch(s) | Shielding | Body Color | Contact Material | Material Flammability Rating | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Industry Recognized Mating Diameter [diameter] | Industry Recognized Mating Diameter [diameter] | Housing Material | Termination | Connector Type | Mating Length/Depth [custom] | Mating Length/Depth [custom] | Voltage - Rated | Actual Diameter [diameter] | Actual Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CUI Devices | Through Hole Right Angle | 2 Conductors 3 Conductors | 2.5 A | Normally Closed Single Switch | Unshielded | Black | Brass Copper Alloy | UL94 V-0 | Tin | -25 °C | 85 °C | Male | 2.5 mm 5.5 mm | 0.098 " 0.217 " | Polybutylene Terephthalate (PBT) | Solder | Jack | 9 mm | 0.354 in | 24 VDC | ||
CUI Devices | Through Hole Right Angle | 2 Conductors 3 Conductors | 2.5 A | Normally Closed Single Switch | Unshielded | Black | Brass Copper Alloy | UL94 V-0 | Tin | -25 °C | 85 °C | Male | 2 mm 5.5 mm | 0.079 in 0.217 " | Polybutylene Terephthalate (PBT) | Solder | Jack | 9 mm | 0.354 in | 24 VDC | 0.079 in 0.256 in | 2 mm 6.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 0.88 | |
| 10 | $ 0.67 | |||
| 25 | $ 0.61 | |||
| 40 | $ 0.57 | |||
| 80 | $ 0.53 | |||
| 230 | $ 0.47 | |||
| 440 | $ 0.44 | |||
| 945 | $ 0.40 | |||
| 2400 | $ 0.37 | |||
Description
General part information
PJ-102 Series
Power Barrel Connector Jack 2.00mm ID (0.079"), 5.50mm OD (0.217") Through Hole, Right Angle
