Industrial Automation and Controls

1423167-5

Active

TE Connectivity Aerospace, Defense and Marine

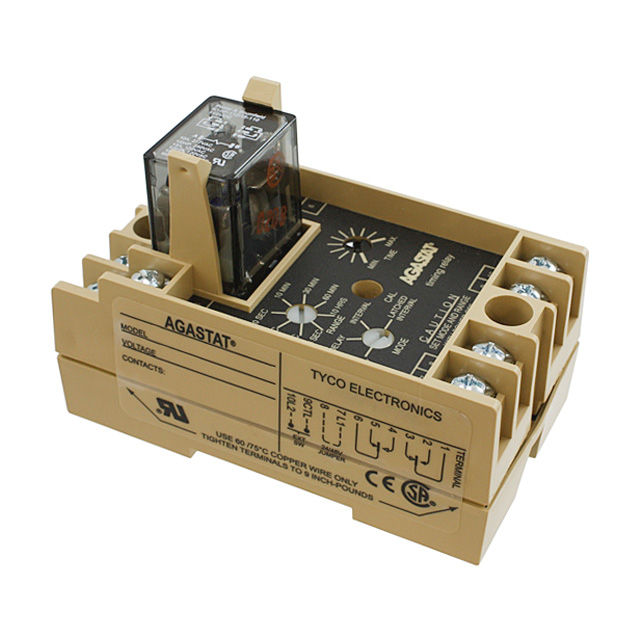

RELAY TIME DELAY 10HR 10A 120V

Search across all available documentation for this part.

Industrial Automation and Controls

Active

TE Connectivity Aerospace, Defense and Marine

RELAY TIME DELAY 10HR 10A 120V

Technical Specifications

Parameters and characteristics for this part

Specification	1423167-5

Circuit	DPDT (2 Form C)
Contact Rating @ Voltage [x]	10 A, 120 VAC
Delay Time [Max]	10 Hrs
Delay Time [Min]	0.1 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Input Voltage
Voltage - Supply	24 VDC

Part	Circuit	Contact Rating @ Voltage [x]	Timing Adjustment Method	Mounting Type	Function	Termination Style	Voltage - Supply	Timing Initiate Method	Delay Time [Min]	Delay Time [Max]	Relay Type
TE Connectivity Aerospace, Defense and Marine 1423167-5	DPDT (2 Form C)	10 A 120 VAC	Screwdriver Slot	DIN Rail	Programmable (Multi-Function)	Screw Terminal	24 VDC	Input Voltage	0.1 Sec	10 Hrs	Mechanical Relay

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1685.30

General part information

Programmable (Multi-Function) Time Delay Relay DPDT (2 Form C) 0.1 Sec ~ 10 Hrs Delay 10A @ 120VAC DIN Rail
