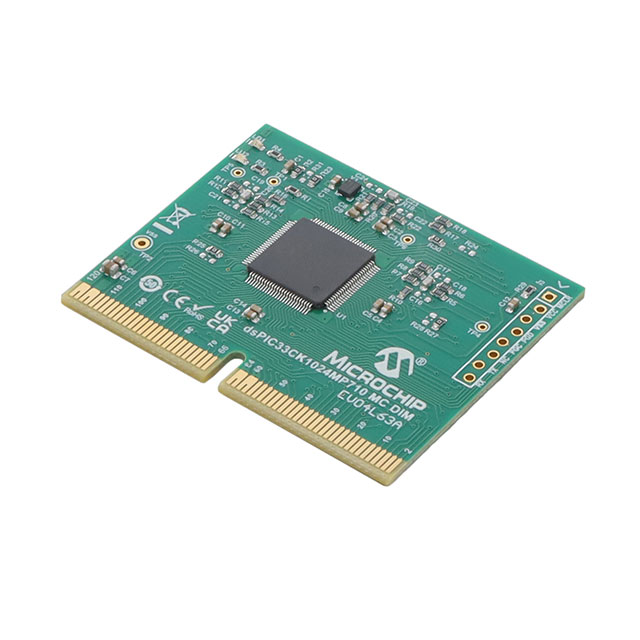

EV04L63A

Active

Microchip Technology

DSPIC33CK1024MP710 MC DIM DSPIC TOOLS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

Development Boards, Kits, Programmers

EV04L63A

Active

Microchip Technology

DSPIC33CK1024MP710 MC DIM DSPIC TOOLS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EV04L63A

Accessory Type	Dual-Inline Module (DIM)
For Use With/Related Products	dsPIC33CK1024MP710

dsPIC33CK1024MP705 Series

ISO 26262-and IEC 61508-Compliant 100 MHz Single-Core DSC

Part	Mounting Type	RAM Size	Core Size	Program Memory Type	Peripherals	Program Memory Size	Data Converters	Speed	Operating Temperature [Max]	Operating Temperature [Min]	Core Processor	Package / Case	Oscillator Type	Connectivity	Data Converters [custom]	Data Converters [custom]	Supplier Device Package	Number of I/O	Accessory Type	For Use With/Related Products

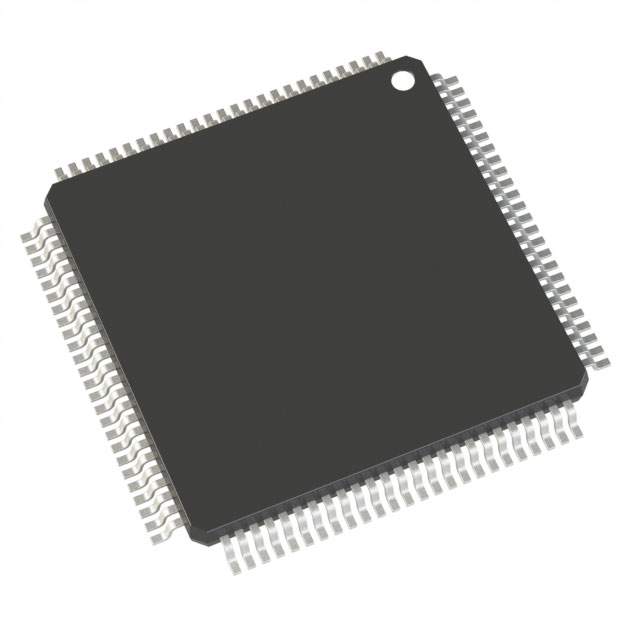

Microchip Technology DSPIC33CK1024MP710T-I/PT	Surface Mount	128 K	16-Bit	FLASH	Brown-out Detect/Reset DMA I2S Motor Control PWM POR PWM QEI WDT	1 MB	A/D 28x12b SAR D/A 6x12b	100 MIPs	85 °C	-40 °C	dsPIC	100-TQFP	External Internal	CANbus I2C LINbus QEI Smart Card SPI UART/USART
Microchip Technology DSPIC33CK1024MP408-E/PT	Surface Mount	128 K	16-Bit	FLASH	Brown-out Detect/Reset DMA I2S Motor Control PWM POR PWM QEI WDT	1 MB		100 MIPs	125 °C	-40 °C	dsPIC	80-TQFP	External Internal	I2C LINbus QEI Smart Card SPI UART/USART	12 bits 12 b	6 24	80-TQFP (12x12)
Microchip Technology DSPIC33CK1024MP710-I/PT	Surface Mount	128 K	16-Bit	FLASH	Brown-out Detect/Reset DMA I2S Motor Control PWM POR PWM QEI WDT	1 MB	A/D 28x12b SAR D/A 6x12b	100 MIPs	85 °C	-40 °C	dsPIC	100-TQFP	External Internal	CANbus I2C LINbus QEI Smart Card SPI UART/USART
Microchip Technology DSPIC33CK1024MP405-I/PT	Surface Mount	128 K	16-Bit	FLASH	Brown-out Detect/Reset DMA I2S Motor Control PWM POR PWM QEI WDT	1 MB	A/D 19x12b SAR D/A 6x12b	100 MIPs	85 °C	-40 °C	dsPIC	48-TQFP	External Internal	I2C LINbus QEI Smart Card SPI UART/USART			48-TQFP (7x7)
Microchip Technology DSPIC33CK1024MP406-E/MR	Surface Mount	128 K	16-Bit	FLASH	Brown-out Detect/Reset DMA I2S Motor Control PWM POR PWM QEI WDT	1 MB	A/D 20x12b SAR D/A 6x12b	100 MIPs	125 °C	-40 °C	dsPIC	64-VFQFN Exposed Pad	External Internal	I2C LINbus QEI Smart Card SPI UART/USART			64-QFN (9x9)

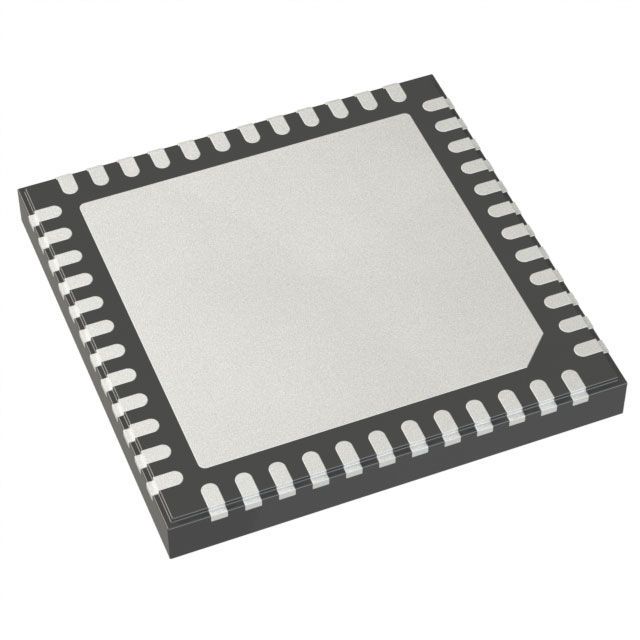

Microchip Technology DSPIC33CK1024MP405-E/M7	Surface Mount Wettable Flank	128 K	16-Bit	FLASH	Brown-out Detect/Reset DMA I2S Motor Control PWM POR PWM QEI WDT	1 MB	A/D 19x12b SAR D/A 6x12b	100 MIPs	125 °C	-40 °C	dsPIC	48-VFQFN Exposed Pad	External Internal	I2C LINbus QEI Smart Card SPI UART/USART			48-VQFN (6x6)
Microchip Technology DSPIC33CK1024MP705-I/M7	Surface Mount Wettable Flank	128 K	16-Bit	FLASH	Brown-out Detect/Reset DMA I2S Motor Control PWM POR PWM QEI WDT	1 MB	A/D 19x12b SAR D/A 6x12b	100 MIPs	85 °C	-40 °C	dsPIC	48-VFQFN Exposed Pad	External Internal	CANbus I2C LINbus QEI Smart Card SPI UART/USART			48-VQFN (6x6)	39 I/O
Microchip Technology EV04L63A																			Dual-Inline Module (DIM)	dsPIC33CK1024MP710
Microchip Technology DSPIC33CK1024MP410-E/PT	Surface Mount	128 K	16-Bit	FLASH	Brown-out Detect/Reset DMA I2S Motor Control PWM POR PWM QEI WDT	1 MB	A/D 28x12b SAR D/A 6x12b	100 MIPs	125 °C	-40 °C	dsPIC	100-TQFP	External Internal	I2C LINbus QEI Smart Card SPI UART/USART
Microchip Technology DSPIC33CK1024MP406-E/PT	Surface Mount	128 K	16-Bit	FLASH	Brown-out Detect/Reset DMA I2S Motor Control PWM POR PWM QEI WDT	1 MB	A/D 20x12b SAR D/A 6x12b	100 MIPs	125 °C	-40 °C	dsPIC	64-TQFP	External Internal	I2C LINbus QEI Smart Card SPI UART/USART			64-TQFP (10x10)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 20.70
Newark	Each	1	$ 21.54

Description

General part information

dsPIC33CK1024MP705 Series

Microchip’s dsPIC33CK family of digital signal controllers (DSCs) features a single 100 MHz dsPIC® DSC core with integrated DSP and enhanced on-chip peripherals for advanced sensing and control, touch, robust general embedded, motor control, digital power and high-performance embedded applications. The DSCs feature advanced analog for advanced sensor interfacing designs. Offering real-time deterministic performance, the DSCs enable high-performance control applications.

Integrated with hardware peripherals that enable robust and complex touch-sensing designs, these [**core-independent touch DSCs**](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/dspic-dscs/applications/capacitive-touch/) can address additional design requirements involving AUTOSAR, functional safety, security, and CAN/CAN FD.

These DSCs enable the design of high-performance, precision motor control systems that are more energy efficient, quieter in operation and provide extended motor life. They can be used to control BLDC, PMSM, ACIM, SR and stepper motors.
