Connectors, Interconnects

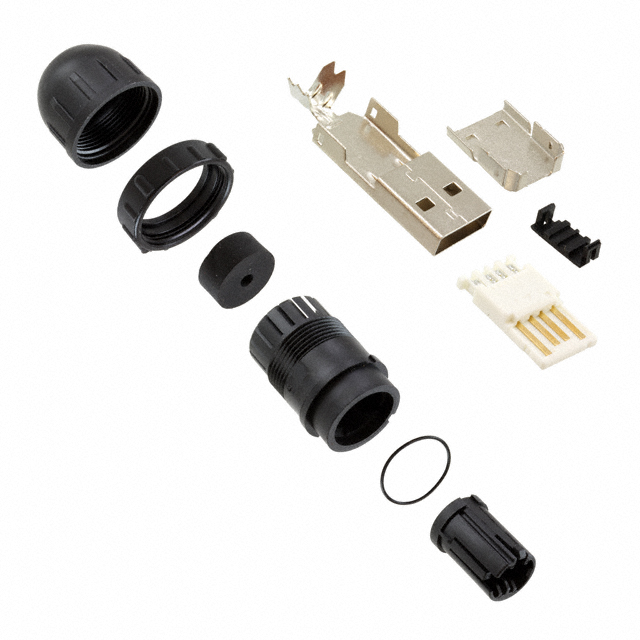

DCC-USBAT-150
ActiveConxall/Switchcraft
CONN PLUG USB2.0 TYPEA 4POS SLD
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
DCC-USBAT-150
ActiveConxall/Switchcraft
CONN PLUG USB2.0 TYPEA 4POS SLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DCC-USBAT-150 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Features | Circular Threaded Coupling |
| Gender | Plug |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insulation Color | White |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 350 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Shell/Shielding Material | Copper Alloy |
| Shielding | Shielded |
| Specifications | USB 2.0 |
DCC-USBAT Series
| Part | Material Flammability Rating | Connector Type | Contact Finish | Number of Ports | Ingress Protection | Number of Contacts [custom] | Current Rating (Amps) | Features | Shielding | Shell/Shielding Material | Insulation Color | Specifications | Mating Cycles | Gender | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Conxall/Switchcraft | UL94 V-0 | USB-A (USB TYPE-A) | Gold | 1 | IP67/IP68 - Dust Tight Waterproof | 4 | 1.5 A | Circular Threaded Coupling | Shielded | Copper Alloy | White | USB 2.0 | 350 | Plug | Free Hanging (In-Line) |
 Conxall/Switchcraft | UL94 V-0 | USB-A (USB TYPE-A) | Gold | 1 | IP67/IP68 - Dust Tight Waterproof | 4 | 1.5 A | Circular Threaded Coupling | Shielded | Copper Alloy | White | USB 2.0 | 350 | Plug | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.98 | |
| 10 | $ 12.39 | |||
| 25 | $ 11.91 | |||
| 50 | $ 11.44 | |||
| 100 | $ 10.80 | |||
| 250 | $ 9.85 | |||
| 500 | $ 9.21 | |||
| 1000 | $ 8.45 | |||
Description
General part information
DCC-USBAT Series
USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Free Hanging (In-Line)
Documents
Technical documentation and resources
No documents available
