Motors, Actuators, Solenoids and Drivers

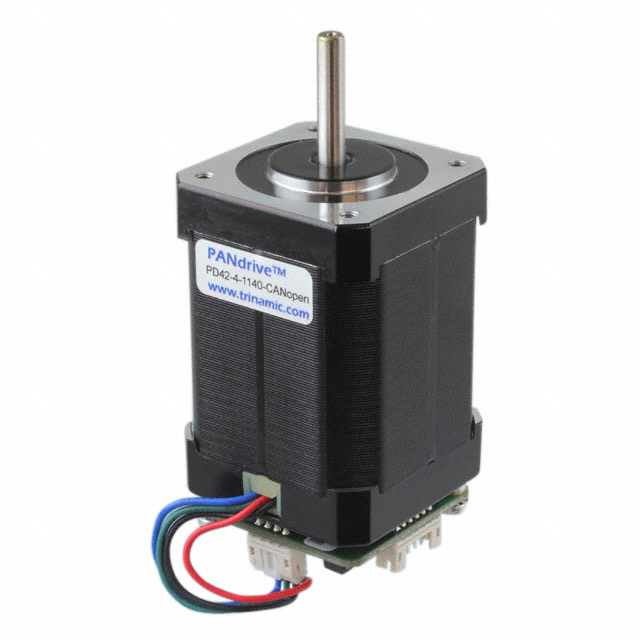

PD42-4-1140-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

STEPPER MOTOR HYBRID BIPOLAR 24V

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PD42-4-1140-CANOPEN

Coil Type	Bipolar
Current Rating (Amps)	2 A
Diameter - Shaft [diameter]	0.197 in
Diameter - Shaft [diameter]	5 mm
Features	Flatted Shaft, Integrated Controller
Length - Shaft and Bearing [x]	24 mm
Length - Shaft and Bearing [x]	0.945 in
NEMA Frame Size	17
Size / Dimension [x]	42 mm
Size / Dimension [x]	1.654 in
Size / Dimension [y]	1.654 "
Size / Dimension [y]	42 mm
Step Angle	1.8 °
Steps per Revolution	200
Torque - Holding (oz-in / mNm)	700 mNm
Torque - Holding (oz-in / mNm)	99.1 oz-in
Type	Hybrid
Voltage - Rated	24 VDC
Weight	220.45 g, 0.486 lb

PD42-4 Series

Part	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Steps per Revolution	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Step Angle	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Voltage - Rated	Features	Current Rating (Amps)	NEMA Frame Size	Type	Coil Type	Weight	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Hole Spacing	Mounting Hole Spacing	Coil Resistance	Rotor Inertia	Termination Style

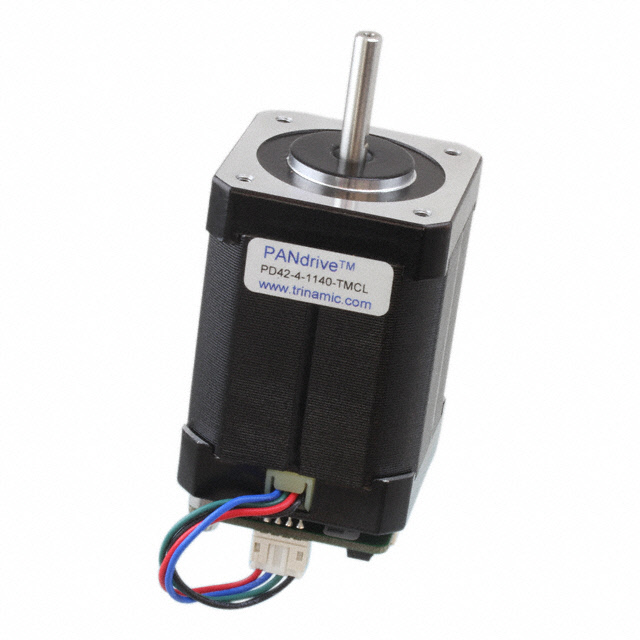

Analog Devices Inc./Maxim Integrated PD42-4-1140-TMCL	0.197 in	5 mm	200	700 mNm	99.1 oz-in	1.8 °	24 mm	0.945 in	24 VDC	Flatted Shaft Integrated Controller	2 A	17	Hybrid	Bipolar	0.486 lb 220.45 g	42 mm	1.654 "	1.654 in	42 mm
Analog Devices Inc./Maxim Integrated PD42-4-1240-TMCL	0.197 in	5 mm	200	700 mNm	99.1 oz-in	1.8 °	24 mm	0.945 in	24 VDC	Flatted Shaft Integrated Controller	2 A	17	Hybrid	Bipolar		42 mm	1.654 "	1.654 in	42 mm	50 °C	-20 C	1.22 in	31 mm	2.3 Ohms	102 gcm˛
Analog Devices Inc./Maxim Integrated PD42-4-1140-CANOPEN	0.197 in	5 mm	200	700 mNm	99.1 oz-in	1.8 °	24 mm	0.945 in	24 VDC	Flatted Shaft Integrated Controller	2 A	17	Hybrid	Bipolar	0.486 lb 220.45 g	42 mm	1.654 "	1.654 in	42 mm
Analog Devices Inc./Maxim Integrated PD42-4-1240-CANOPEN	0.197 in	5 mm	200	700 mNm	99.1 oz-in	1.8 °	24 mm	0.945 in	4.4 V	Flatted Shaft Integrated Controller	2 A	17	Hybrid	Bipolar		42 mm	1.654 "	1.654 in	42 mm	50 °C	-20 C	1.22 in	31 mm	2.3 Ohms	102 gcm˛

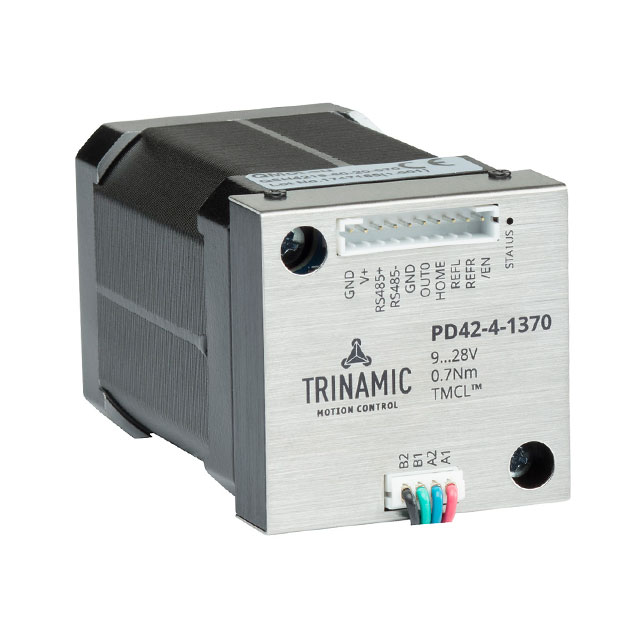

Analog Devices Inc./Maxim Integrated PD42-4-1370-TMCL	0.197 in	5 mm	200	700 mNm	99.1 oz-in	1.8 °	24 mm	0.945 in	4.4 V	Flatted Shaft Integrated Controller	2 A	17	Hybrid	Bipolar		42 mm	1.654 "	1.654 in	42 mm	50 °C	-20 C	1.22 in	31 mm	2.3 Ohms	102 gcm˛	Connector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Case	1	$ 247.07

Description

General part information

PD42-4 Series

Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 2 A 24VDC
