Power Supplies - External/Internal (Off-Board)

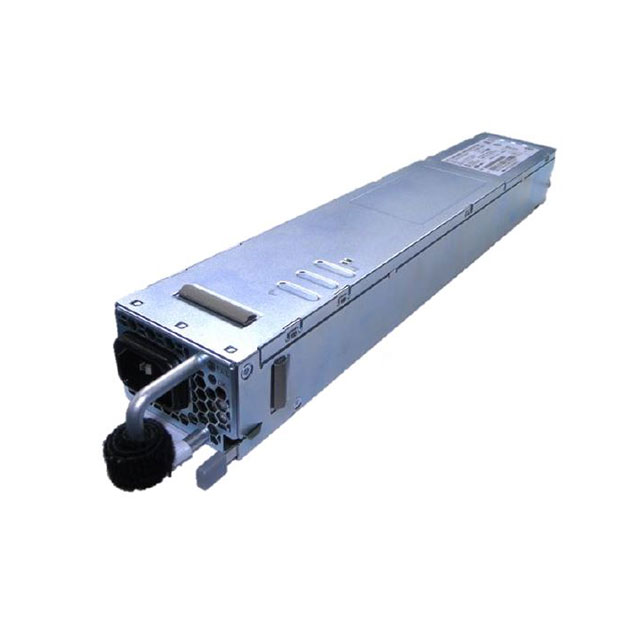

PFE1300-48-054NA
ActiveEOS Power India Private Ltd
AC/DC CONVERTER 48V 1300W
Deep-Dive with AI
Search across all available documentation for this part.
Power Supplies - External/Internal (Off-Board)
PFE1300-48-054NA
ActiveEOS Power India Private Ltd
AC/DC CONVERTER 48V 1300W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PFE1300-48-054NA |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cCSAus, NEMKO, CB, CE |
| Current - Output 1 | 26.8 A |
| Efficiency | 94 % |
| Features | Remote On/Off, Standby Output, I2C Interface, PMBus™, Adjustable Output, Remote Sense, Load Sharing, PFC, Hot Swappable |
| Mounting Type | Rack Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 45 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 1.3 kW |
| Size / Dimension [x] | 12.66 in |
| Size / Dimension [x] | 321.5 mm |
| Size / Dimension [y] | 2.15 " |
| Size / Dimension [y] | 54.5 mm |
| Size / Dimension [z] | 1.57 " |
| Size / Dimension [z] | 40 mm |
| Type | Front End |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Isolation | 4.242 kV |
| Voltage - Output 1 | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 440.00 | |
Description
General part information
PFE1300 Series
Front End AC DC Converters 1 Output 48V 90 ~ 264 VAC Input
Documents
Technical documentation and resources
No documents available
