PD42-2-1140-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

STEPPER MOTOR HYBRID BIPOLAR 24V

Deep-Dive with AI

Search across all available documentation for this part.

Motors, Actuators, Solenoids and Drivers

PD42-2-1140-CANOPEN

Active

Analog Devices Inc./Maxim Integrated

STEPPER MOTOR HYBRID BIPOLAR 24V

Deep-Dive with AI

Specifications Series Pricing Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PD42-2-1140-CANOPEN

Coil Type	Bipolar
Current Rating (Amps)	2 A
Diameter - Shaft [diameter]	0.197 in
Diameter - Shaft [diameter]	5 mm
Features	Flatted Shaft, Integrated Controller
Length - Shaft and Bearing [x]	24 mm
Length - Shaft and Bearing [x]	0.945 in
NEMA Frame Size	17
Size / Dimension [x]	42 mm
Size / Dimension [x]	1.654 in
Size / Dimension [y]	1.654 "
Size / Dimension [y]	42 mm
Step Angle	1.8 °
Steps per Revolution	200
Torque - Holding (oz-in / mNm)	360 mNm
Torque - Holding (oz-in / mNm)	51 oz-in
Type	Hybrid
Voltage - Rated	24 VDC
Weight	220.45 g, 0.486 lb

PD42-2 Series

Part	Step Angle	Type	NEMA Frame Size	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Weight	Steps per Revolution	Features	Coil Type	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Current Rating (Amps)	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Coil Resistance	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Mounting Hole Spacing	Mounting Hole Spacing	Rotor Inertia	Function	RPM	Length - Shaft and Bearing	Length - Shaft and Bearing	Motor Type

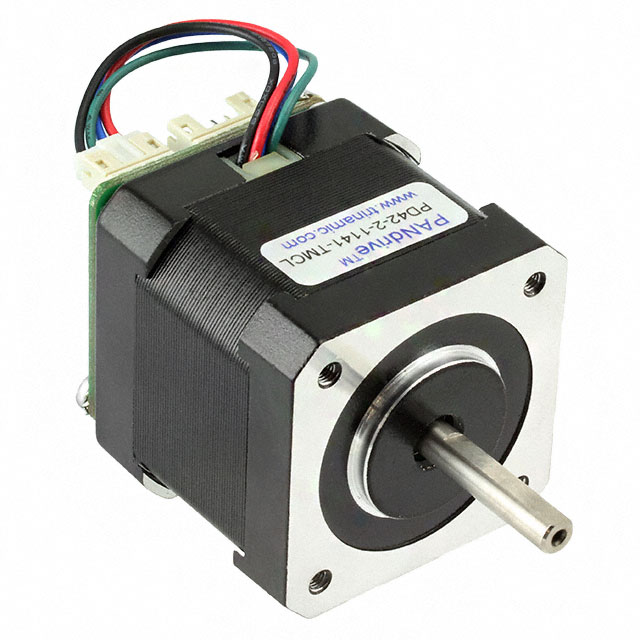

Analog Devices Inc./Maxim Integrated PD42-2-1141	1.8 °	Hybrid	17	0.197 in	5 mm	0.486 lb 220.45 g	200	Flatted Shaft Integrated Controller	Bipolar	49.56 oz-in	350 mNm	2 A	24 mm	0.945 in	42 mm	1.654 "	1.654 in	42 mm	24 VDC

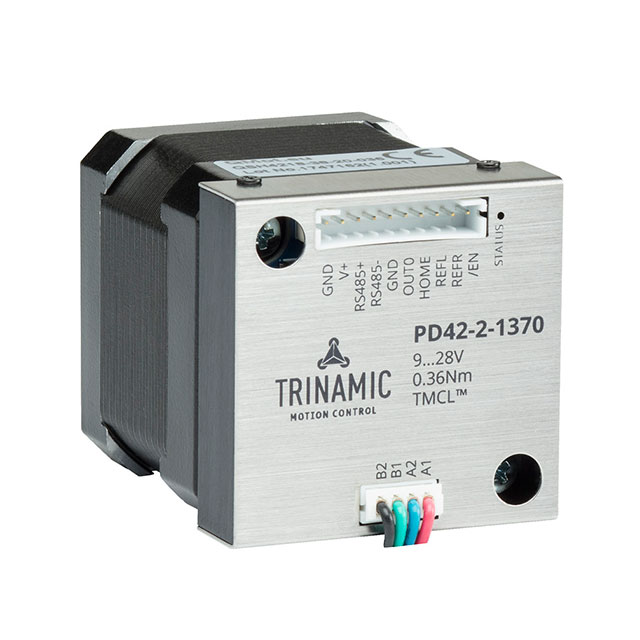

Analog Devices Inc./Maxim Integrated PD42-2-1070	1.8 °	Hybrid	17			0.706 lb	200	Integrated Controller Round Shaft	Bipolar	51 oz-in	360 mNm	1 A			42 mm	1.654 "	1.654 in	42 mm	24 VDC	1.2 Ohms	Connector	50 °C	-20 C	320.24 g	30.99 mm	1.22 in	57 gcm²

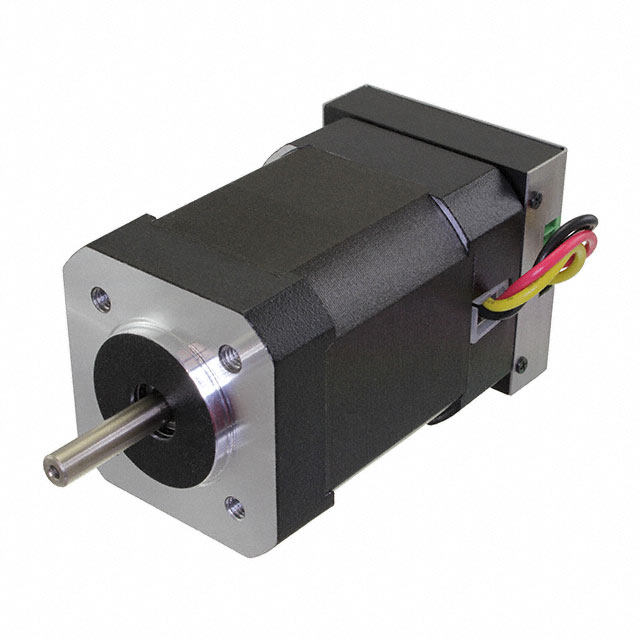

Analog Devices Inc./Maxim Integrated PD42-2-1670-CANOPEN		DC Motor		0.197 in	5 mm			Flatted Shaft Integrated Controller							42 mm	1.654 "	1.654 in	42 mm	24 VDC			40 °C	-20 C		25.1 mm	0.988 in		Servomotor	4000 RPM	0.866 in	22 mm	Brushless (BLDC)
Analog Devices Inc./Maxim Integrated PD42-2-1370-TMCL	1.8 °	Hybrid	17	0.197 in	5 mm		200	Flatted Shaft Integrated Controller	Bipolar	50.98 oz-in	360 mNm	2 A	24 mm	0.945 in	42 mm	1.654 "	1.654 in	42 mm	2.4 V	1.2 Ohms	Connector	50 °C	-20 C		31 mm	1.22 in	57 gcm²

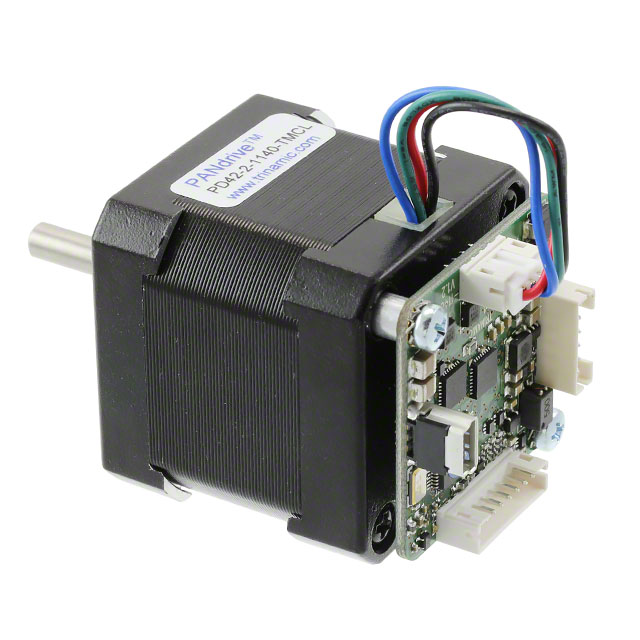

Analog Devices Inc./Maxim Integrated PD42-2-1140-TMCL	1.8 °	Hybrid	17	0.197 in	5 mm	0.486 lb 220.45 g	200	Flatted Shaft Integrated Controller	Bipolar	51 oz-in	360 mNm	2 A	24 mm	0.945 in	42 mm	1.654 "	1.654 in	42 mm	24 VDC

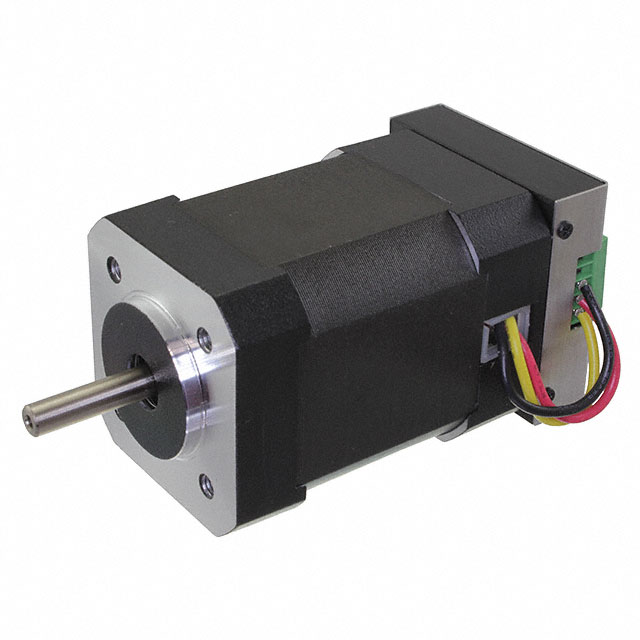

Analog Devices Inc./Maxim Integrated PD42-2-1670-TMCL		DC Motor		0.197 in	5 mm			Flatted Shaft Integrated Controller							42 mm	1.654 "	1.654 in	42 mm	24 VDC			40 °C	-20 C		25.1 mm	0.988 in		Servomotor	4000 RPM	0.866 in	22 mm	Brushless (BLDC)
Analog Devices Inc./Maxim Integrated PD42-2-1240-TMCL	1.8 °	Hybrid	17	0.197 in	5 mm		200	Flatted Shaft Integrated Controller	Bipolar	50.98 oz-in	360 mNm	2 A	24 mm	0.945 in	42 mm	1.654 "	1.654 in	42 mm	24 VDC	1.2 Ohms		50 °C	-20 C		31 mm	1.22 in	57 gcm²

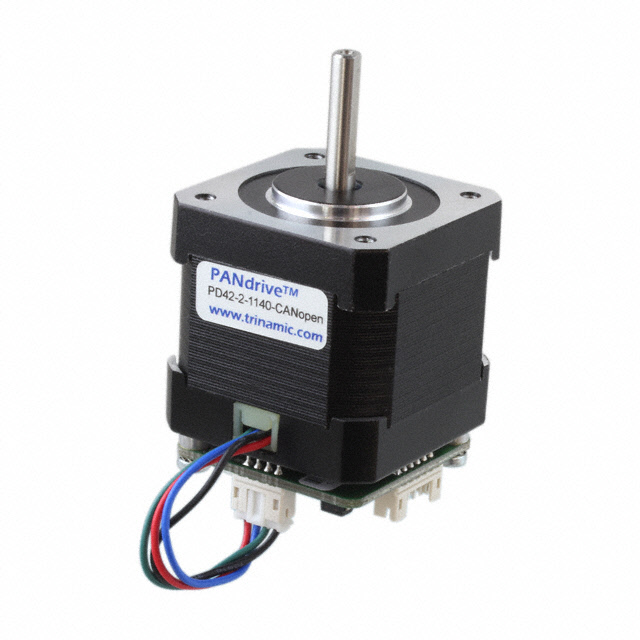

Analog Devices Inc./Maxim Integrated PD42-2-1140-CANOPEN	1.8 °	Hybrid	17	0.197 in	5 mm	0.486 lb 220.45 g	200	Flatted Shaft Integrated Controller	Bipolar	51 oz-in	360 mNm	2 A	24 mm	0.945 in	42 mm	1.654 "	1.654 in	42 mm	24 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Case	1	$ 244.10

Description

General part information

PD42-2 Series

Bipolar Stepper Motor Hybrid Frame Size 17 200.0 Step 2 A 24VDC

Documents

Technical documentation and resources

No documents available
