Industrial Automation and Controls

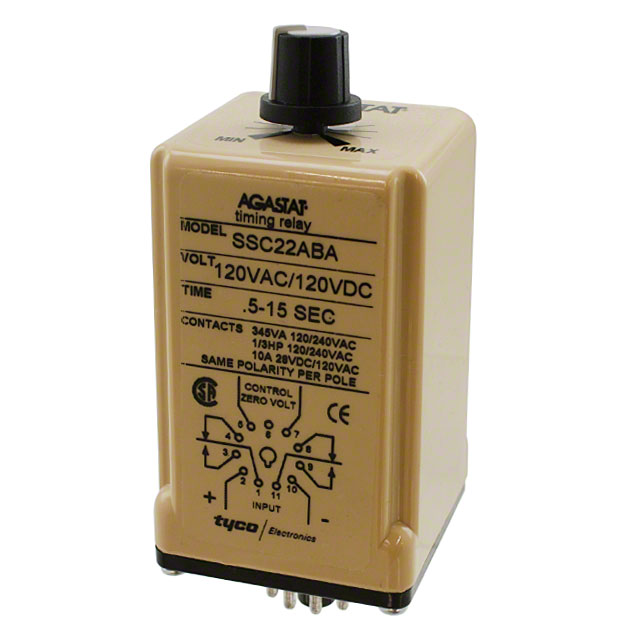

SSC22ABA
ActiveTE Connectivity Aerospace, Defense and Marine
RELAY TIME DELAY 15SEC 10A 120V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SSC22ABA |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage [x] | 10 A, 120 VAC |
| Function | Off-Delay |
| Mounting Type | Socketable |
| Relay Type | Mechanical Relay |
| Termination Style | Plug In, 11 Pin (Octal) |
| Timing Adjustment Method | Hand Dial |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply | 120 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 197.12 | |
| 10 | $ 184.80 | |||
| 25 | $ 172.48 | |||
| 50 | $ 166.32 | |||
Description
General part information
SSC22A Series
Off-Delay Time Delay Relay DPDT (2 Form C) 0.5 Sec ~ 15 Sec Delay 10A @ 120VAC Socketable
