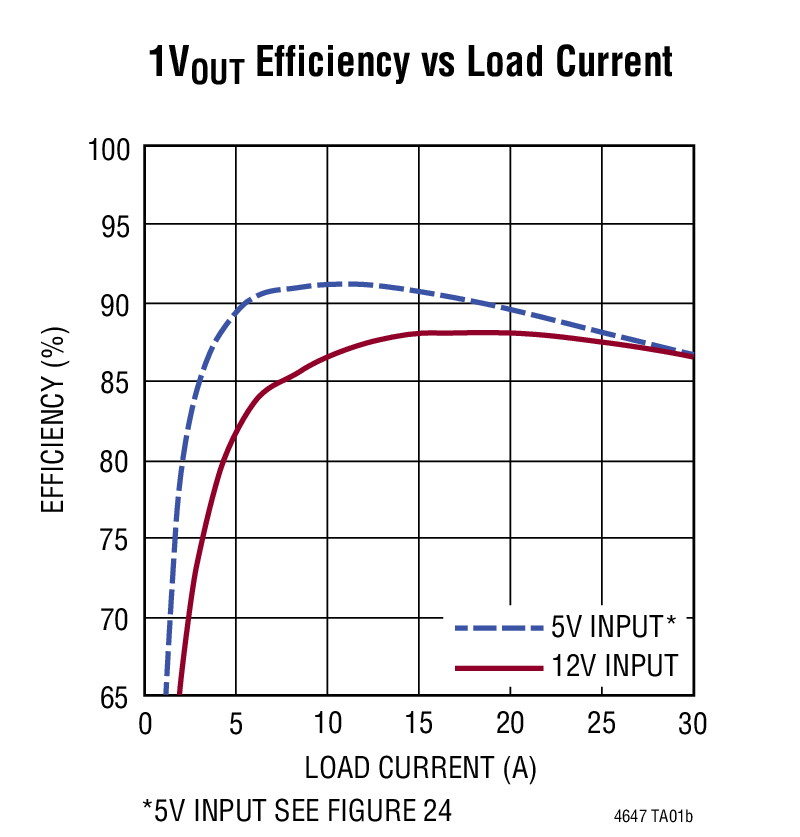

The LTM4647 is a complete 30A output switching mode step-down DC/DC μModule®(power module) regulator. Included in the package are the switching controller, power FETs, inductor and all supporting components. Operating over an input voltage range of 4.7V to 15V, the LTM4647 supports an output voltage range of 0.6V to 1.8V, set by a single external resistor. Only a few input and output capacitors are needed.Its high efficiency design delivers 87% efficiency from 12V input to 1.0V output with 30A continuous load current. High switching frequency and a current-mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, programmable multiphase operation, N+1 phase redundancy, and output voltage tracking for supply rail sequencing.Fault protection features include overvoltage and overcurrent protection. The power module is offered in a space saving 9mm × 15mm × 5.01mm BGA package. The LTM4647 is available with SnPb (BGA) or RoHS compliant terminal finish.ApplicationsTelecom, Networking and Industrial EquipmentPoint of Load Regulation

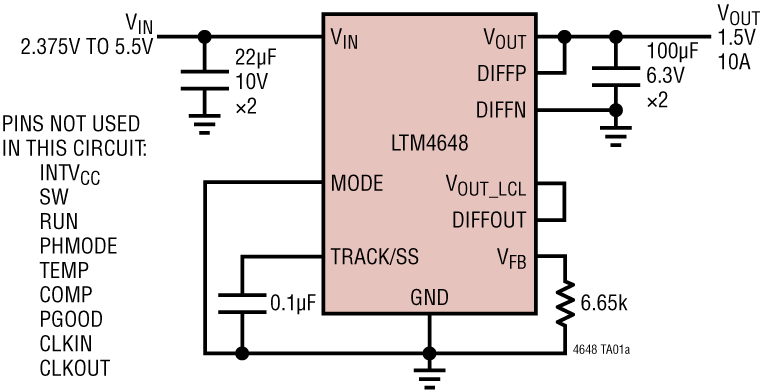

The LTM4648 is a 10A low VINstep-down DC/DC μModule®(micromodule) regulator. Included in the package are the switching controller, power FETs, inductor and all support components. Operating over an input voltage range of 2.375V to 5.5V, the LTM4648 supports an output voltage range of 0.6V to 5V, set by a single external resistor. This high efficiency design delivers up to 10A continuous current. Only bulk input and output capacitors are needed.High switching frequency and a current mode architecture enable a very fast transient response to line and load changes without sacrificing stability. The device supports frequency synchronization, programmable multiphase operation and output voltage tracking for supply rail sequencing.Fault protection features include overvoltage protection, overcurrent protection and thermal shutdown. The LTM4648 is offered in a small 9mm × 15mm × 4.92mm BGA package available with SnPb or RoHS compliant terminal finish. For up to 16VINoperation, see theLTM4649.ApplicationsTelecom, Networking and Industrial EquipmentPoint of Load Regulation

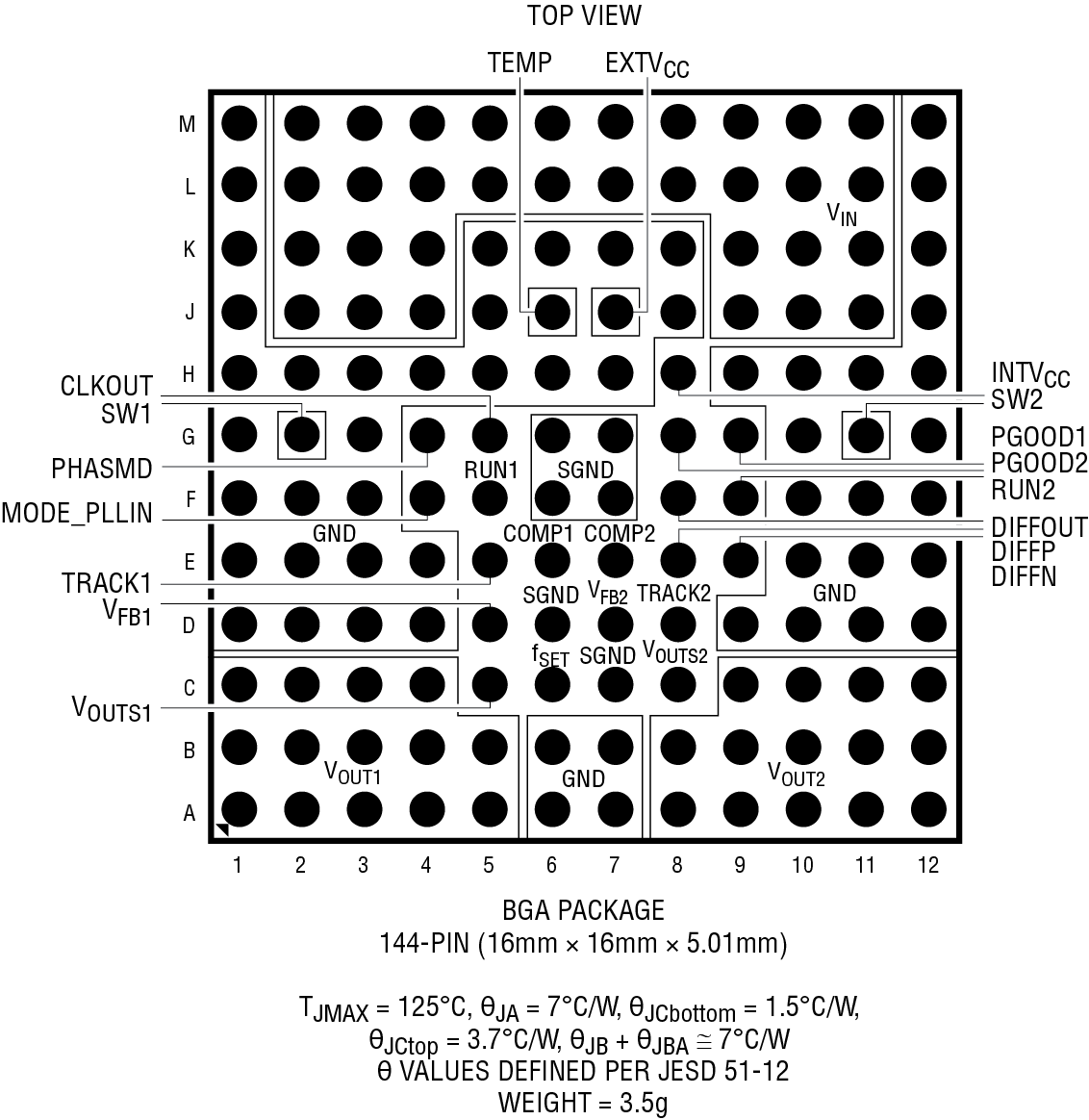

The LTM4650-1A/LTM4650-1B is dual 25A or single 50A output step-down µModule®(power module) regulator with ±0.8% (LTM4650-1A) and ±1.5% (LTM4650-1B) total DC output error with ±3% transient output error. Included in the package are the switching controller, power FETs, inductors, and all supporting components. External compensation allows for fast transient response to minimize output capacitance when powering FPGAs, ASICs, and processors. With synchronized multiphase parallel current sharing, six LTM4650-1 devices can deliver up to 300A. The LTM4650-1 is offered in a 16mm × 16mm × 5.01 BGA package, with SnPb (BGA) or RoHS compliant terminal finish.VINRangeVOUTRangeCompDC VOUTAccyLTM46504.5V to 15V0.6V to 1.8VInternal1.5%LTM4650-1B4.5V to 15V0.6V to 1.8VExternal1.5%LTM4650-1A4.5V to 15V0.6V to 1.8VExternal0.8%LTM4650A4.5V to 16V0.6V to 5.5VInternal1%LTM4650A-14.5V to 16V0.6V to 5.5VExternal1%ApplicationsFPGA, ASIC, μProcessor Core Voltage RegulationInformation, Communication Systems

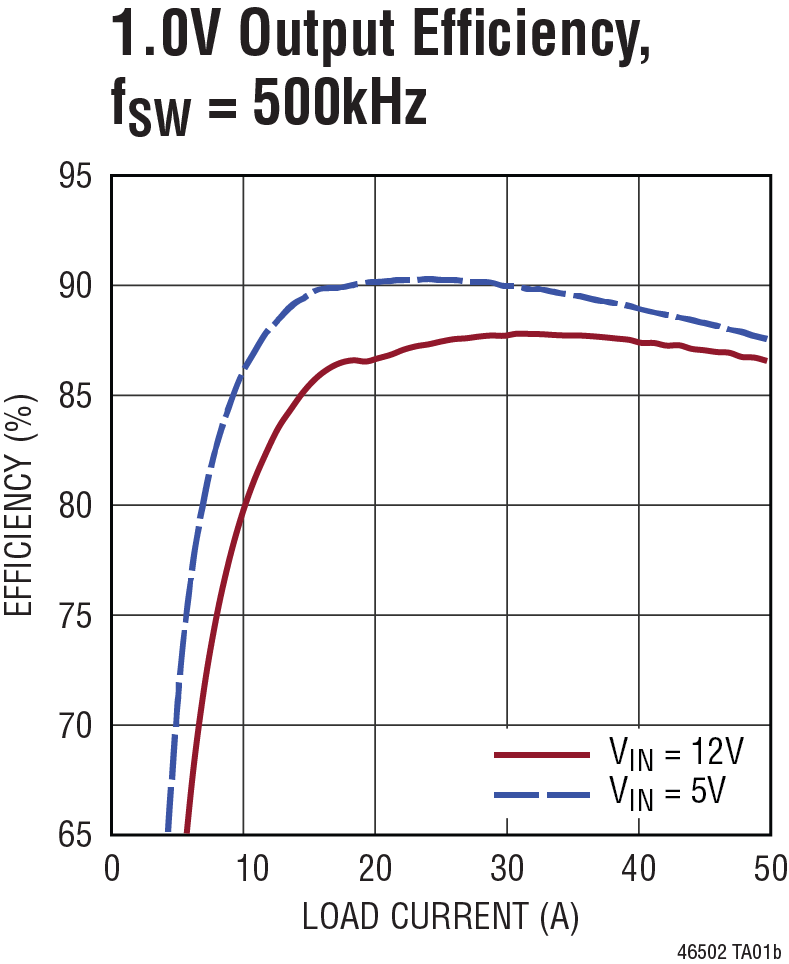

The LTM®4650-2 is a dual 25A or single 50A output stepdown μModule®(micromodule) regulator with ±1.5% total DC output error. The package includes the switching controller, power FETs, inductors, and all supporting components. External compensation allows for fast transient response to minimize output capacitance when powering FPGAs, ASICs, and processors. AVP can further improve transient response and reduce the output capacitance. With synchronized multiphase parallel current sharing, six LTM4650-2 devices can deliver up to 300A.The LTM4650-2 is offered in a 16mm × 16mm × 5.01mm BGA package with SnPb or RoHS-compliant terminal finish.APPLICATIONSFPGA, ASIC, μProcessor Core Voltage RegulationInformation, Communication Systems

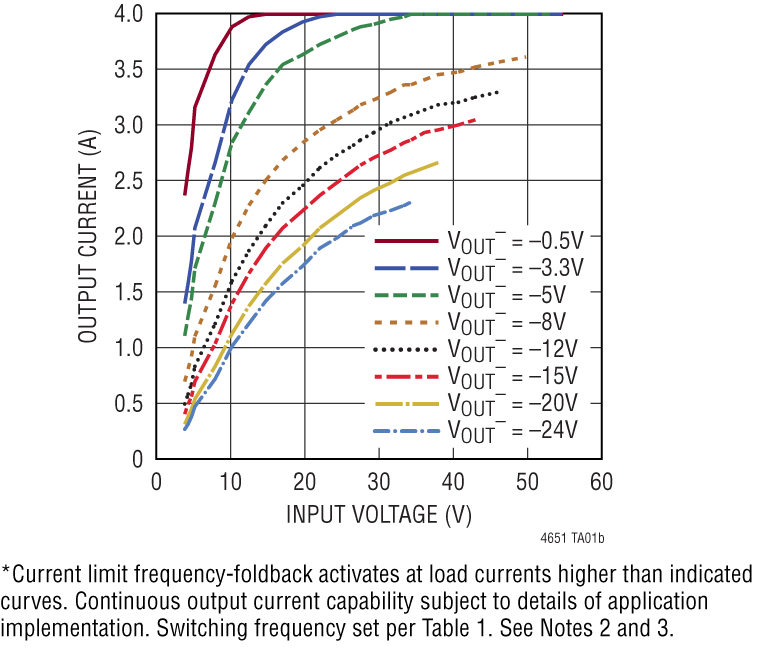

The LTM4651 is an ultralow noise, 58V, 24W DC/DC μModule®inverting topology regulator. It regulates a negative output voltage (VOUT–) from a positive input supply voltage (VIN), and is designed to meet the radiated emissions requirements of EN55022. Conducted emission requirements can be met by adding standard filter components.Included in the package are the switching controller, power MOSFETs, inductor, filters and support components. The LTM4651 can regulate VOUT–to a value between –0.5V and –26.5V, provided that its input and output voltages adhere to the safe operating area criteria of the LTM4651: VIN+ |VOUT–| ≤ 58V. A switching frequency range of 250kHz to 3MHz is supported (400kHz default) and the module can synchronize to an external clock.Despite being an inverting topology regulator, no level shift circuitry is needed to interface to the LTM4651’s RUN, PGOOD or CLKIN pins; those pins are referenced to GND.The LTM4651 is offered in a 15mm × 9mm × 5.01mm BGA package with SnPb or RoHS compliant terminal finish.ApplicationsAvionics, Industrial Control and Test EquipmentVideo, Imaging and Instrumentation48V Telecom and Network Power SuppliesRF Systems

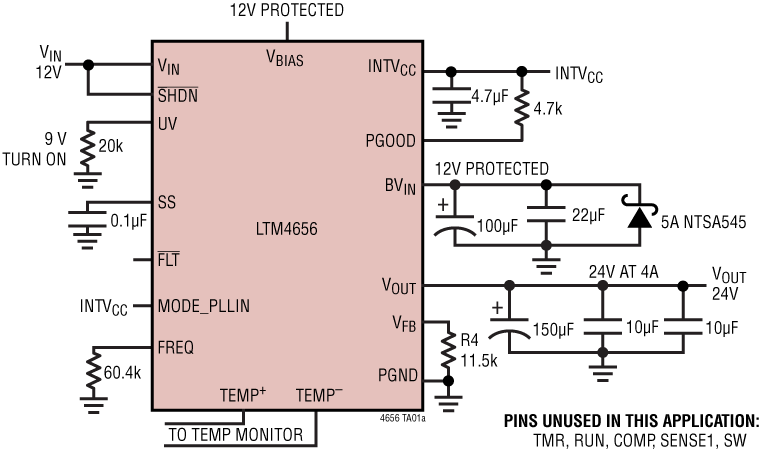

The LTM4656 is a complete high efficiency boost μModule®(power module) regulator with the switching controller, power FETs, inductor, and all supporting components. Only a few input and output capacitors are needed. Operating over an input voltage range of 4.5V to 28V, the LTM4656 supports an output voltage range of 6V to 36V, set by a single external resistor. Its high efficiency design delivers up to 5A continuous output current. An in-line protection circuit sets the maximum input current, and will trip off the input power if exceeded and retry (see Typical Applications section on data sheet).The high density boost design can convert up to 180W of output power.Fault protection features include overtemperature protection, and overcurrent protection input referred with auto-retry. The μmodule is offered in a space saving and thermally enhanced 16mm × 16mm × 7.07mm BGA package. The LTM4656 is Pb-free and RoHS compliant.APPLICATIONSTelecom and Networking EquipmentElectronic Test Equipment
