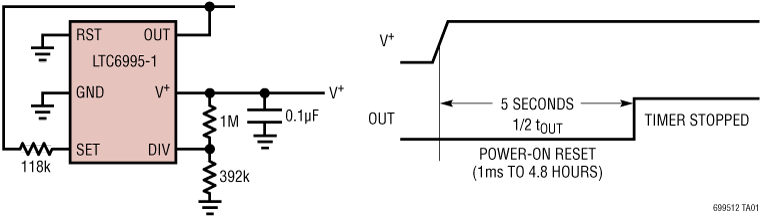

The LTC6995 is a silicon oscillator with a programmable period range of 1.024ms to 9.54 hours (29.1μHz to 977Hz), specifically intended for long duration timing events. The LTC6995 is part of the TimerBlox®family of versatile silicon timing devices.A single resistor, RSET, programs the LTC6995’s internal master oscillator frequency. The output clock period is determined by this master oscillator and an internal frequency divider, NDIV, programmable to eight settings from 1 to 221.When oscillating, the LTC6995 generates a 50% duty cycle square wave output. A reset function is provided to stop the master oscillator and clear internal dividers. Removing reset initiates a full output clock cycle which is useful for programmable power-on reset and watchdog timer applications.The LTC6995 has two versions of reset functionality. The reset input is active high for the LTC6995-1 and active low for the LTC6995-2. The polarity of the output when reset is selectable for both versions.ApplicationsPower-On Reset TimerLong Time One Shot"Heartbeat" TimersWatchdog TimersPeriodic "Wake-Up" CallHigh Vibration, High Acceleration Environments

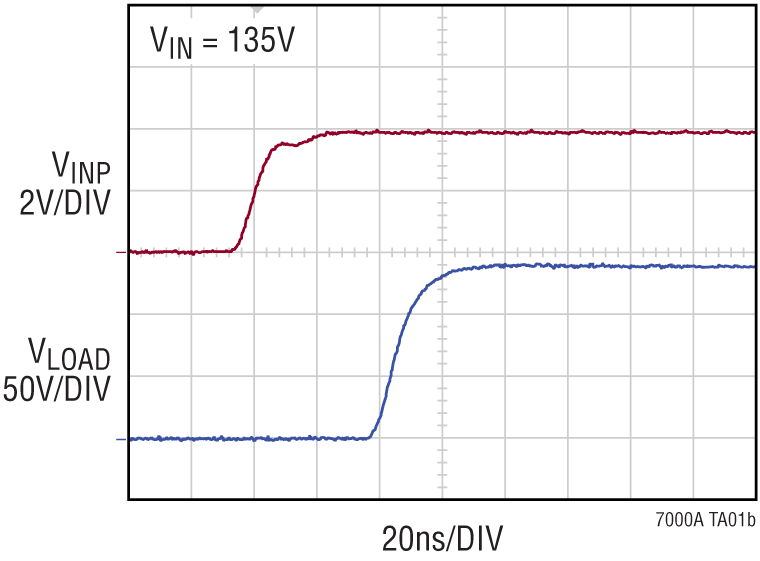

The LTC7000A/LTC7000A-1 is a fast high side N-channel MOSFET gate driver that operates from input voltages up to 135V. It contains an internal charge pump that fully enhances an external N-channel MOSFET switch, allowing it to remain on indefinitely.Its powerful driver can easily drive large gate capacitances with very short transition times, making it well suited for both high frequency switching applications or static switch applications that require a fast turn-on and/or turn-off time.When an internal comparator senses that the switch current has exceeded a preset level, a fault flag is asserted and the switch is turned off after a period of time set by an external timing capacitor. After a cooldown period, the LTC7000A/LTC7000A-1 automatically retries.The LTC7000A/LTC7000A-1 is available in the thermally enhanced 16-lead MSOP packages.APPLICATIONSStatic Switch DriverLoad and Supply Switch DriverElectronic Valve DriverHigh Frequency High Side Gate Driver

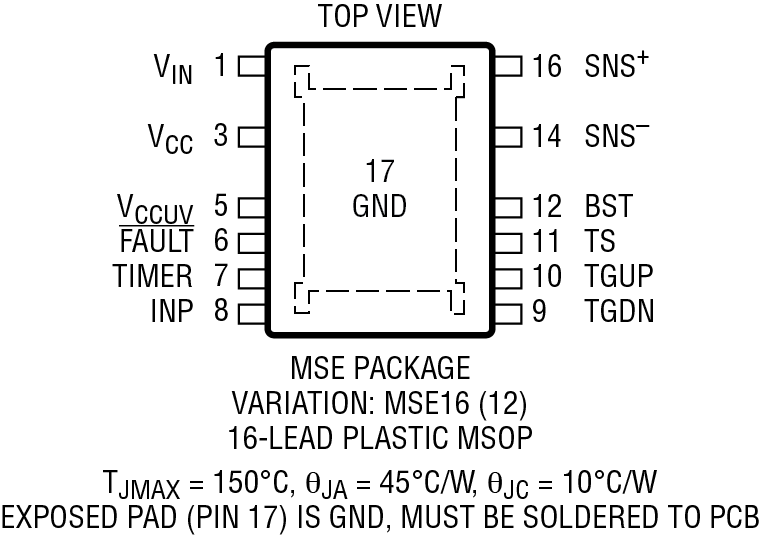

The LTC7000/LTC7000-1 is a fast high side N-channel MOSFET gate driver that operates from input voltages up to 135V. It contains an internal charge pump that fully enhances an external N-channel MOSFET switch, allowing it to remain on indefinitely.Its powerful driver can easily drive large gate capacitances with very short transition times, making it well suited for both high frequency switching applications or static switch applications that require a fast turn-on and/or turn-off time.When an internal comparator senses that the switch current has exceeded a preset level, a fault flag is asserted and the switch is turned off after a period of time set by an external timing capacitor. After a cool-down period, the LTC7000/LTC7000-1 automatically retries.The LTC7000/LTC7000-1 is available in the thermally-enhanced 16-lead MSOP packages.LTC7000LTC7000-1LTC7000ALTC7000A-1Package16-Lead MSOP MSE1616-Lead MSOP MSE16(12)16-Lead MSOP MSE1616-Lead MSOP MSE16(12)High Voltage Pin Spacing0.157mm0.657mm0.157mm0.657mmRUN/OVLO/ISET/IMONPinsYesNoYesNoIMON Enable after INP Rising150μsecN/A<1μsecN/AAPPLICATIONSStatic Switch DriverLoad and Supply Switch DriverElectronic Valve DriverHigh Frequency High Side Gate Driver

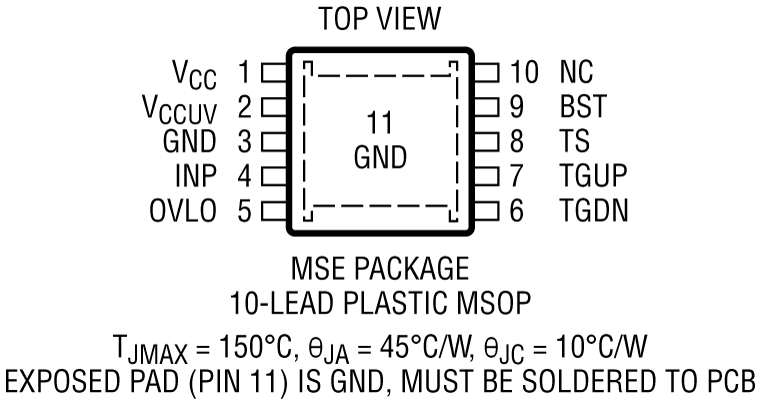

The LTC7001 is a fast high side N-channel MOSFET gate driver that operates from input voltages up to 135V. It contains an internal charge pump that fully enhances an external N-channel MOSFET switch, allowing it to remain on indefinitely.Its powerful driver can easily drive large gate capacitances with very short transition times, making it well suited for both high frequency switching applications or static switch applications that require a fast turn-on and/or turn-off time.The LTC7001 is available in the thermally enhanced 10-lead MSOP package.APPLICATIONSStatic Switch DriverLoad and Supply Switch DriverElectronic Valve DriverHigh Frequency High Side Gate Driver

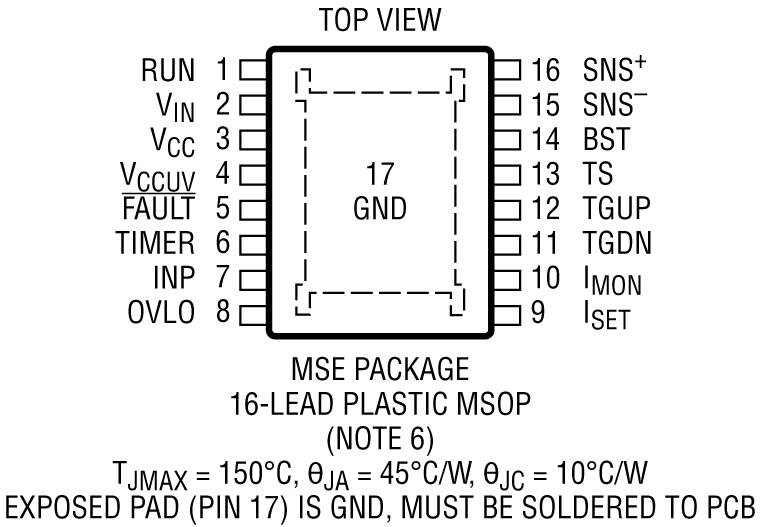

The LTC7003 is a fast high side N-channel MOSFET gate driver that operates from input voltages up to 60V. It contains an internal charge pump that fully enhances an external N-channel MOSFET switch, allowing it to remain on indefinitely.Its powerful driver can easily drive large gate capacitances with very short transition times, making it well suited for both high frequency switching applications or static switch applications that require a fast turn-on and/or turn-off time.When an internal comparator senses that the switch current has exceeded a preset level, a fault flag is asserted and the switch is turned off after a period of time set by an external timing capacitor. After a cooldown period, the LTC7003 automatically retries.The LTC7003 is available in the thermally-enhanced 16-lead MSOP package.APPLICATIONSStatic Switch DriverLoad and Supply Switch DriverElectronic Valve DriverHigh Frequency High Side Gate Driver

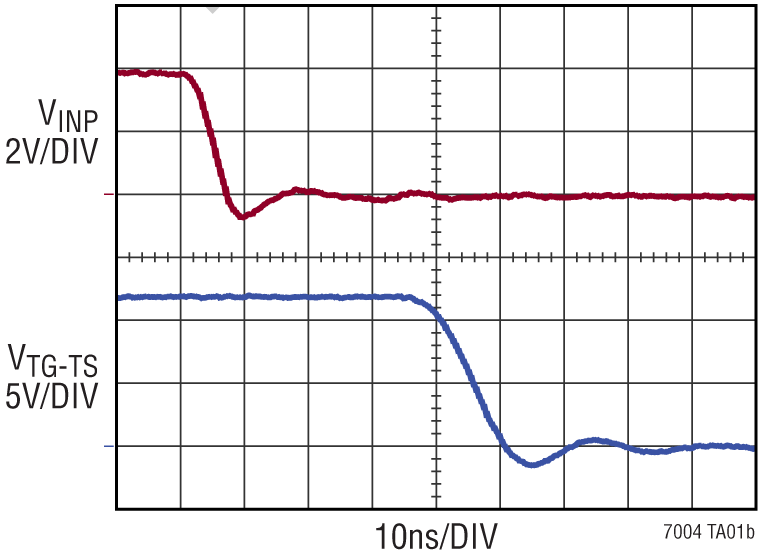

The LTC7004 is a fast high side N-channel MOSFET gate driver that operates from input voltages up to 60V. It contains an internal charge pump that fully enhances an external N-channel MOSFET switch, allowing it to remain on indefinitely.Its powerful driver can easily drive large gate capacitances with very short transition times, making it well suited for both high frequency switching applications or static switch applications that require a fast turn-on and/or turn-off time.The LTC7004 is available in the thermally-enhanced 10-lead MSOP package.APPLICATIONSStatic Switch DriverLoad and Supply Switch DriverElectronic Valve DriverHigh Frequency High Side Gate Driver

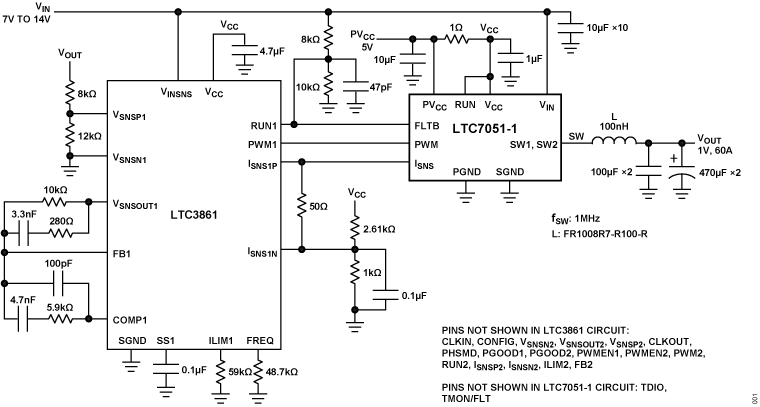

The LTC7051 monolithic power stage fully integrates high speed drivers with low resistance half-bridge power switches plus comprehensive monitoring and protection circuitry in an electrically and thermally optimized package. With a suitable high frequency controller, this power stage forms a compact, high current voltage regulator system with state-of-the-art efficiency and transient response.SilentMOS technology utilizes second generation Silent Switcher 2 architecture reducing both EMI and switch-node voltage overshoot while maximizing efficiency at high switching frequencies.High speed current sensing provides low latency switch current information, enabling tight current balancing and immediate overcurrent protection.Thermally-enhanced packaging provides 70A rated output continuous current capability.ApplicationsHigh Current Servers and WorkstationsNetworking/Telecom Microprocessor SuppliesSmall Form-Factor POL Converter

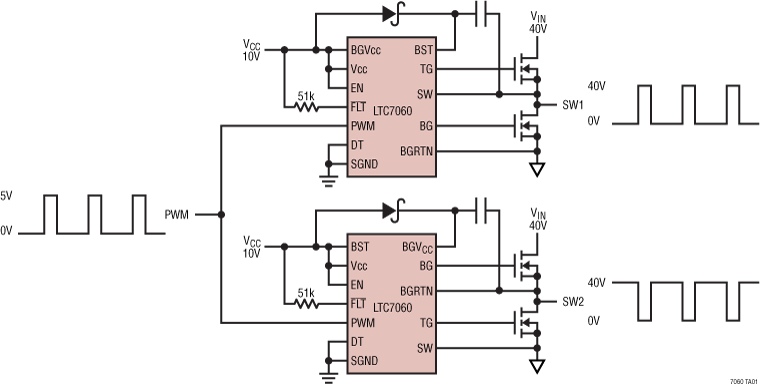

The LTC7060 drives two N-Channel MOSFETs in a half-bridge configuration with supply voltages up to 100V. Both high-side and low-side drivers can drive the MOSFETs with a different ground reference, providing excellent noise and transient immunity.Its powerful 0.8Ω pull-down and 1.5Ω pull-up MOSFET drivers allows the use of large gate capacitance high voltage MOSFETs. Additional features include UVLO, Three-State PWM input, adjustable turn-on/-off delays and shoot-through protection.APPLICATIONSAutomotive and Industrial Power SystemsTelecommunication Power SystemsHalf-Bridge and Full-Bridge Converters

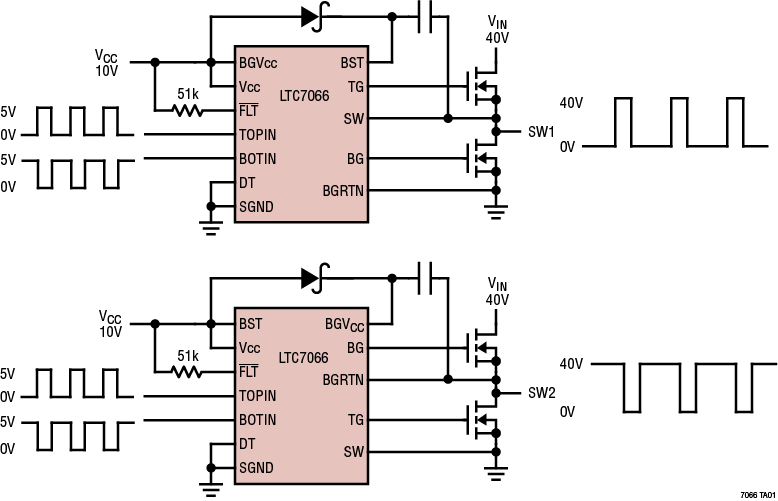

The LTC7066 drives two N-Channel MOSFETs in a half-bridge configuration with supply voltages up to 140V. Both high-side and low-side drivers can drive the MOSFETs with a different ground reference, providing excellent noise and transient immunity.Its powerful 0.8Ω pull-down and 1.5Ω pull-up MOSFET drivers allow the use of large gate capacitance high voltage MOSFETs. Additional features include UVLO, TTL/CMOS compatible inputs, adjustable turn-on/-off delays, and shoot-through protection.APPLICATIONSAutomotive and Industrial Power SystemsTelecommunication Power SystemsHalf-Bridge and Full-Bridge Converters

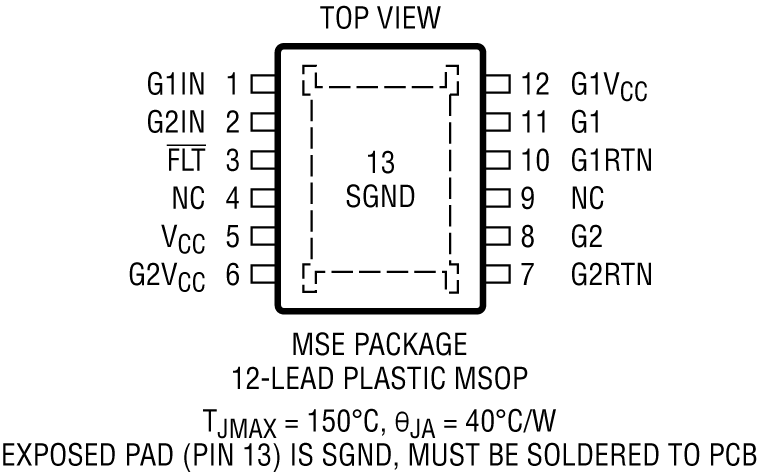

The LTC7067 drives two high-side N-Channel MOSFETs with supply voltages up to 140V. Both drivers can operate with a different ground reference, providing excellent noise and transient immunity. The two drivers are symmetric and independent of each other, allowing complementary or non-complementary switching.Its powerful 0.8Ω pull-down and 1.5Ω pull-up MOSFET drivers allows the use of large gate capacitance high voltage MOSFETs. Additional features include UVLO, TTL/CMOS compatible inputs and fault indicator.See chart below for a similar driver in this product family.PARAMETERLTC7060LTC7061LTC7062LTC7067Input Signal3-State PWMCMOS/TTL LogicCMOS/TTL LogicCMOS/TTL LogicShoot-Through ProtectionYesYesNoNoAbsolute Max Voltage115V115V115V150VVCCFalling UVLO5.3V4.3V4.3V4.3V
