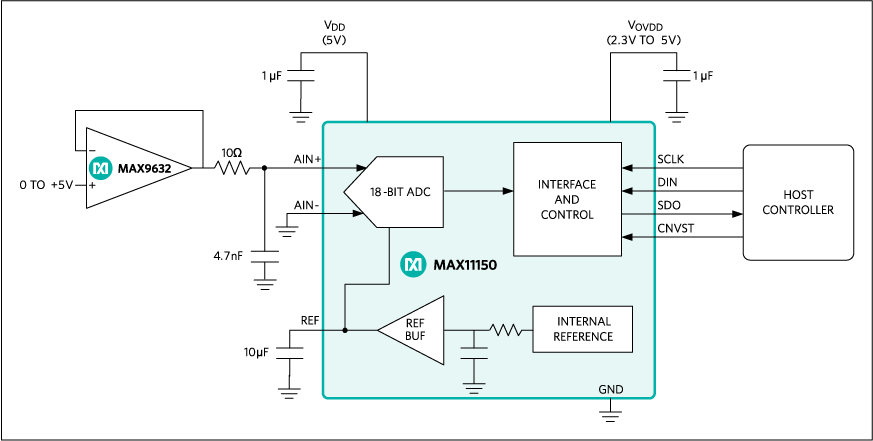

MAX1115018-Bit, 500ksps, +5V SAR ADC with Internal Reference in µMAX | Data Acquisition | 3 | Active | The MAX11150 is an 18-bit, 500ksps, SAR ADC offering excellent AC and DC performance with unipolar input range, internal reference, and small size. The MAX11150 measures a +5V (0 to 5V) input range and can operate with single 5V supply. The MAX11150 integrates a low drift reference with internal buffer, saving the cost and space of an external reference.This ADC achieves 93.0dB SNR and -101.2dB THD. The MAX11150 guarantees 18-bit no-missing codes and ±3.7 LSB INL (typ).The MAX11150 communicates using an SPI-compatible serial interface at 2.3V, 3V, 3.3V, or 5V logic. The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.The MAX11150 is offered in a 10-pin, 3mm x 5mm, μMAX® package and is specified over the -40°C to +85°C temperature range.ApplicationsAutomatic Test EquipmentData Acquisition SystemsIndustrial Process ControlMedical Instrumentation |
MAX1115218-Bit, 500ksps, +5V Unipolar Input, SAR ADC, in Tiny 10-Pin µMAX | Analog to Digital Converters (ADC) | 3 | Active | The MAX11152 is an 18-bit, 500ksps, +5V unipolar pseudo-differential input SAR ADC that offers excellent AC and DC performance in a small standard package.This ADC typically achieves 95dB SNR, -106dB THD, and ±2 LSB INL, ±0.5 LSB DNL. The MAX11152 guarantees 18-bit no-missing codes.The MAX11152 communicates using a SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic.The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.The MAX11152 is offered in a 10-pin, 3mm x 5mm, µMAX®package and is specified over the -40°C to +85°C temperature range.ApplicationsAutomatic Test EquipmentMedical InstrumentationNarrowband ReceiversProcess Control and Industrial AutomationTest and Measurement |

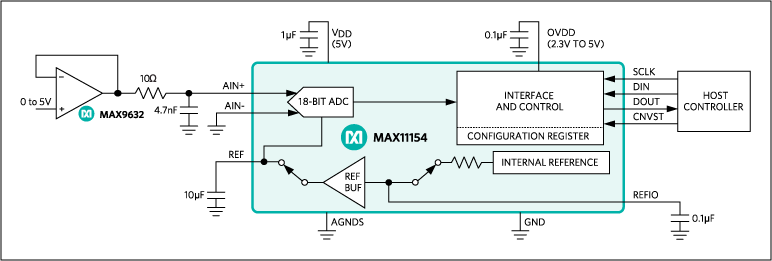

MAX1115418-Bit, 500ksps, 0 to 5V SAR ADC with Internal Reference in TDFN | Integrated Circuits (ICs) | 2 | Active | The MAX11154 18-bit, 500ksps, SAR ADC offers excellent AC and DC performance with unipolar input range, small size, and internal reference. The MAX11154 integrates an optional internal reference and buffer, saving additional cost and space.This ADC typically achieves 93.8dB SNR and -105.8dB THD. The device guarantees 18-bit no-missing codes and ±2 LSB INL (typ).The MAX11154 communicates using an SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic. The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.The MAX11154 is offered in a 12-pin, 3mm x 3mm, TDFN package and is specified over the -40°C to +85°C temperature range.ApplicationsAutomatic Test EquipmentData Acquisition SystemsIndustrial Control Systems/Process ControlMedical Instrumentation |

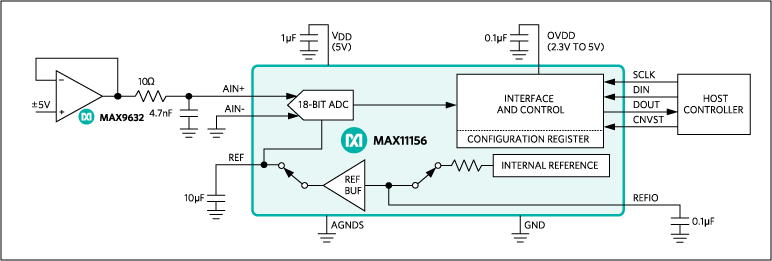

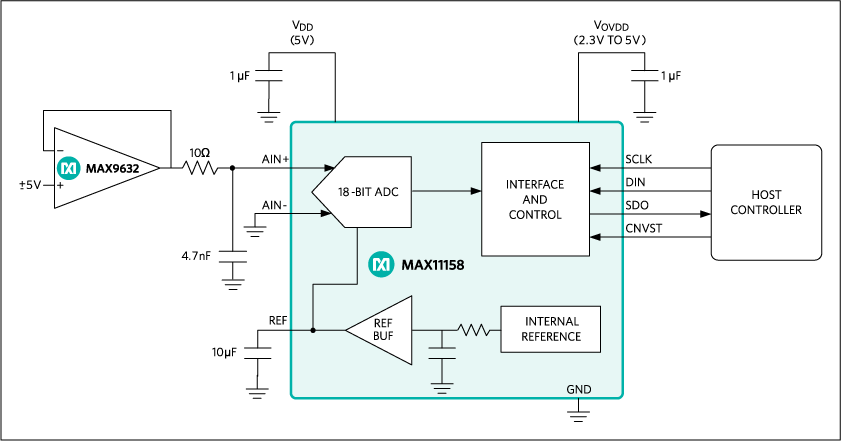

MAX1115618-Bit, 500ksps, ±5V SAR ADC with Internal Reference in TDFN | Integrated Circuits (ICs) | 3 | Active | The MAX11156 18-bit, 500ksps, SAR ADC offers excellent AC and DC performance with true bipolar input range, small size, and internal reference. The MAX11156 measures a ±5V (10VP-P) input range while operating from a single 5V supply. A patented charge-pump architecture allows direct sampling of high-impedance sources. The MAX11156 integrates an optional internal reference and buffer, saving additional cost and space.This ADC achieves 94.6dB SNR and -101.4dB THD (typ). The MAX11156 guarantees 18-bit no-missing codes and ±2.8 LSB INL (typ).The MAX11156 communicates using an SPI-compatible serial interface at 2.5V, 3V, 3.3V, or 5V logic. The serial interface can be used to daisy-chain multiple ADCs in parallel for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.The MAX11156 is offered in a 12-pin, 3mm x 3mm, TDFN package and is specified over the -40°C to +85°C temperature range.ApplicationsAutomatic Test EquipmentData Acquisition SystemsIndustrial Control Systems/Process ControlMedical Instrumentation |
| Analog to Digital Converters (ADCs) Evaluation Boards | 3 | Active | |

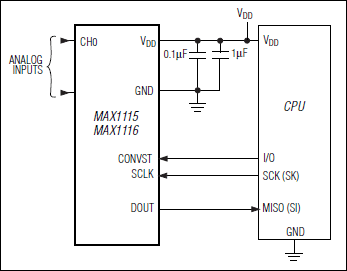

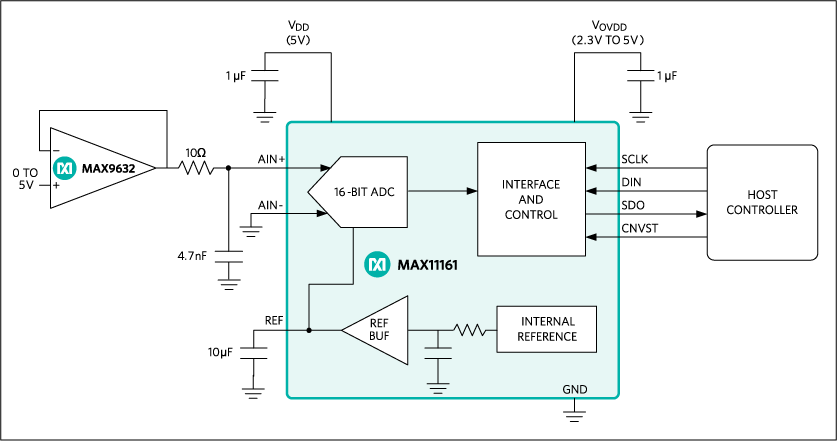

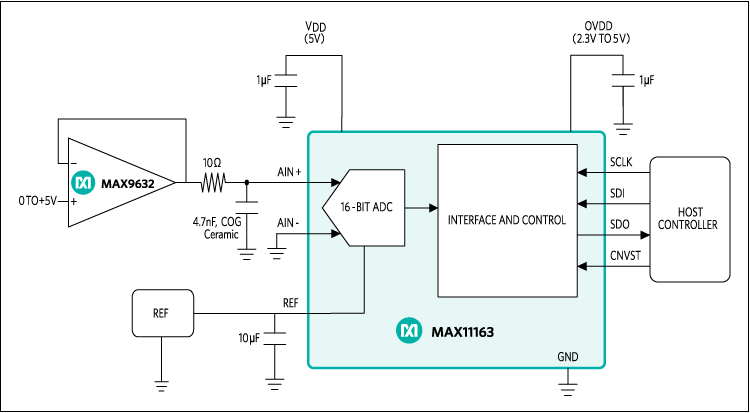

MAX1116Single-Supply, Low-Power, Serial 8-Bit ADCs | Integrated Circuits (ICs) | 2 | Active | The MAX1115/MAX1116 low-power, 8-bit, analog-to-digital converters (ADCs) feature an internal track/hold (T/H), voltage reference, VDDmonitor, clock, and serial interface. The MAX1115 is specified from +2.7V to +5.5V, and the MAX1116 is specified from +4.5V to +5.5V. Both parts consume only 175µA at 100ksps.The full-scale analog input range is determined by the internal reference of +2.048V (MAX1115) or +4.096V (MAX1116). The MAX1115/MAX1116 also feature AutoShutdown™ power-down mode which reduces power consumption to < 1µA when the device is not in use. The 3-wire serial interface directly connects to SPI™, QSPI™, and MICROWIRE™ devices without external logic. Conversions up to 100ksps are performed using an internal clock.The MAX1115/MAX1116 are available in an 8-pin SOT23 package with a footprint that is just 30% of an 8-pin SO.Applications4mA to 20mA Powered Remote Data Acquisition SystemsBattery-Powered Test EquipmentLow-Power, Handheld Portable DevicesReceive Signal Strength IndicatorsSystem Diagnostics |
| Data Acquisition | 3 | Active | |
| Data Acquisition | 2 | Active | |
MAX1116216-Bit, 500ksps, +5V Unipolar Input, SAR ADC, in Tiny 10-Pin µMAX | Evaluation Boards | 3 | Active | The MAX11162 is a 16-bit, 500ksps, +5V unipolar pseudo-differential input SAR ADC offering excellent AC and DC performance in a small standard package.This ADC typically achieves 93dB SNR, -105dB THD, and ±0.6 LSB INL, ±0.2 LSB DNL. The MAX11162 guarantees 16-bit no-missing codes.The MAX11162 communicates using an SPI-compatible serial interface at 2.3V, 3V, 3.3V, or 5V logic.The serial interface can be used to daisy-chain multiple ADCs for multichannel applications and provides a busy indicator option for simplified system synchronization and timing.The MAX11162 is offered in a 10-pin, 3mm x 5mm, µMAX®package and is specified over the -40°C to +85°C temperature range.ApplicationsAutomatic Test EquipmentIndustrial Process ControlMedical InstrumentationNarrowband ReceiversTest and Measurements |
| Integrated Circuits (ICs) | 3 | Active | |
